1/2 in. Stainless Steel Threaded Swing Check Valve
Crane Valve/Crane Energy Flow Sol

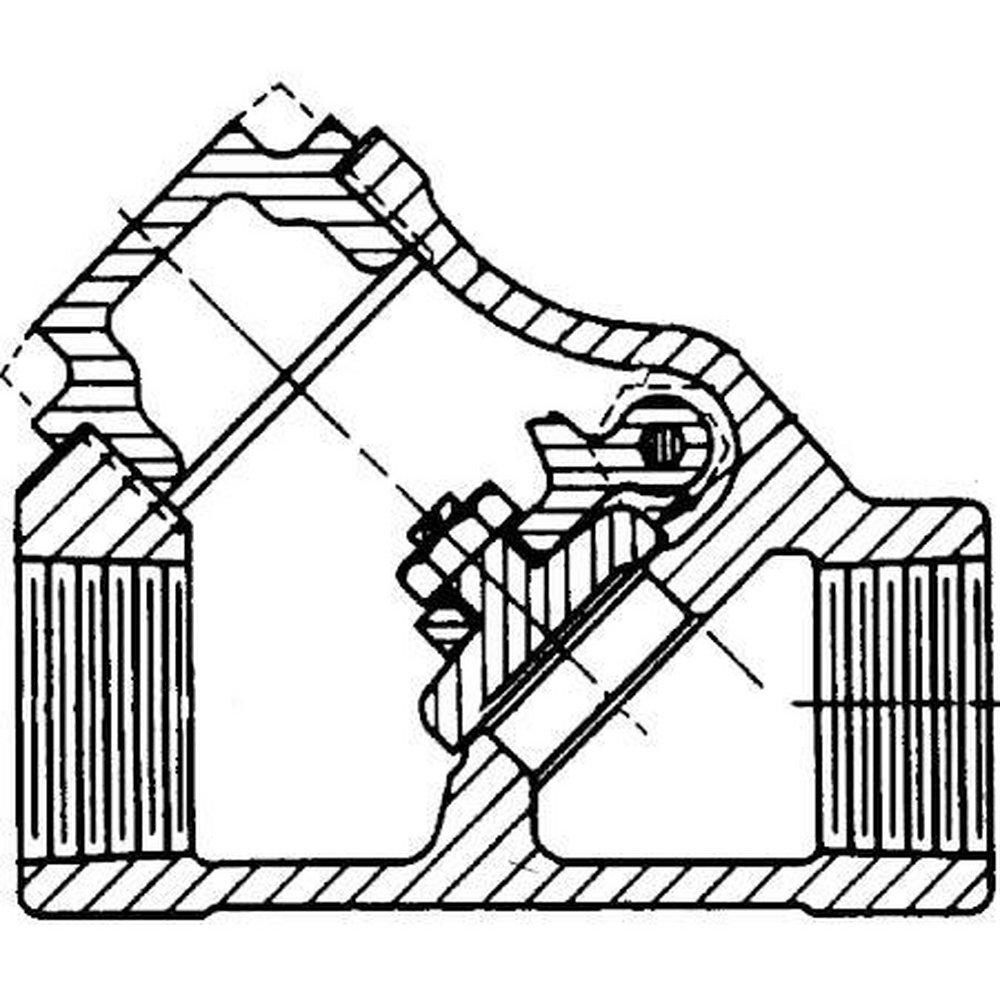

Figure 49 1/2 in. Stainless Steel Threaded Swing Check Valve
Package Quantity Info:
Each: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Crane Valve/Crane Energy Flow Sol
Figure 49
1/2 in. Stainless Steel Threaded Swing Check Valve
49 1/2
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Threaded ends meet ANSI B2.1.
- Manufacturer's pressure-temperature rating.
- 200 psi at -20°F to 100°F, 135 psi at 500°F maximum.
- For valve services at temperatures above 500° F, information must be requested.
- Vitraglas® lining and factory installed heat traps
- 10 year limited warranty on tank and heat exchanger and 6 year limited warranty on component parts
Specifications
- ASME:
- ASME B-16.34
- ASTM:
- ASTM A-351 CF8M
- Collection:
- Figure 49
- End Connection 1:
- Threaded
- End Connection 2:
- Threaded
- End Connections:
- Threaded
- FM Approved:
- No
- IAPMO Listed:
- No
- MSS:
- MSS SP-42
- Material:
- Stainless Steel
- Material Type:
- 316L
- NSF Certified:
- No
- Pressure Class:
- 200#
- Recommended Valve Application:
- Residential
- UL Listed:
- No
- Valve Body Material:
- Stainless Steel
- Valve Body Style:
- Y Pattern
- Valve Size:
- 1/2 in
- Valve Type:
- Swing Check Valve
- Weight:
- 0.7 lb
