4 in. Cast Iron Flanged Gate Valve
Crane Valve/Crane Energy Flow Sol

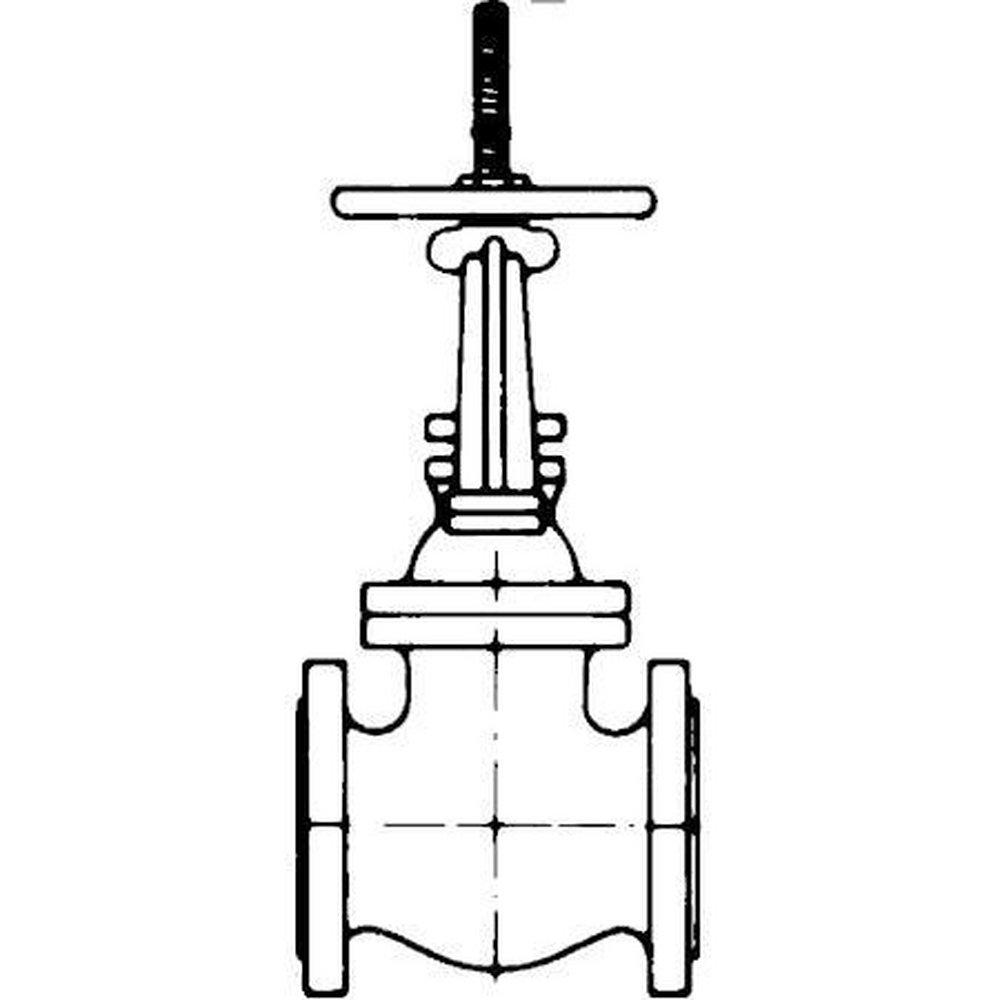

Figure 7 1/2E 4 in. Cast Iron Flanged Gate Valve
Package Quantity Info:
Each: 1
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
Crane Valve/Crane Energy Flow Sol
Figure 7 1/2E
4 in. Cast Iron Flanged Gate Valve
71/2E*040
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Bronze trim.
- Outside screw and yoke.
- Heavy duty.
- For steam, water, noncorrosive oil, and other fluids that do not corrode bronze or iron.
- High-strength cast iron body and bonnet conform to ASTM A126, Class B.
- Removable bronze seat rings are screwed into the body.
- Tapered solid wedge iron disc with bronze faces is guided throughout its travel, which eliminates premature contact with the seating surfaces.
- Solid bronze disc on sizes 2"<ENDASH/> 3".
- Manganese bronze stems withstand torsional and tensile strains and are highly resistant to wear.
- Include handwheels.
Specifications
- ASTM:
- ASTM A126, ASTM A126 Grade B, ASTM A276-410, ASTM A307 Grade A, ASTM A536
- Collection:
- Figure 7 1/2E
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- FM Approved:
- No
- Handle Material:
- Ductile Iron
- Length:
- 12
- MSS:
- MSS SP-70
- Material:
- Cast Iron
- Maximum Temperature:
- 100
- NSF Certified:
- No
- Pressure Class:
- 250#
- Recommended Valve Application:
- Commercial, HVAC, Industrial, Plumbing, Utilities
- UL Listed:
- No
- Valve Body Material:
- Cast Iron
- Valve Bonnet Type:
- Bolted
- Valve Disc Material:
- Cast Iron
- Valve Operator:
- Handwheel
- Valve Size:
- 4 in
- Valve Stem:
- Rising
- Valve Type:
- Gate Valve
- Weight:
- 174
