20 Ton R-410A Single Stage Commercial Packaged Air Conditioner
Daikin

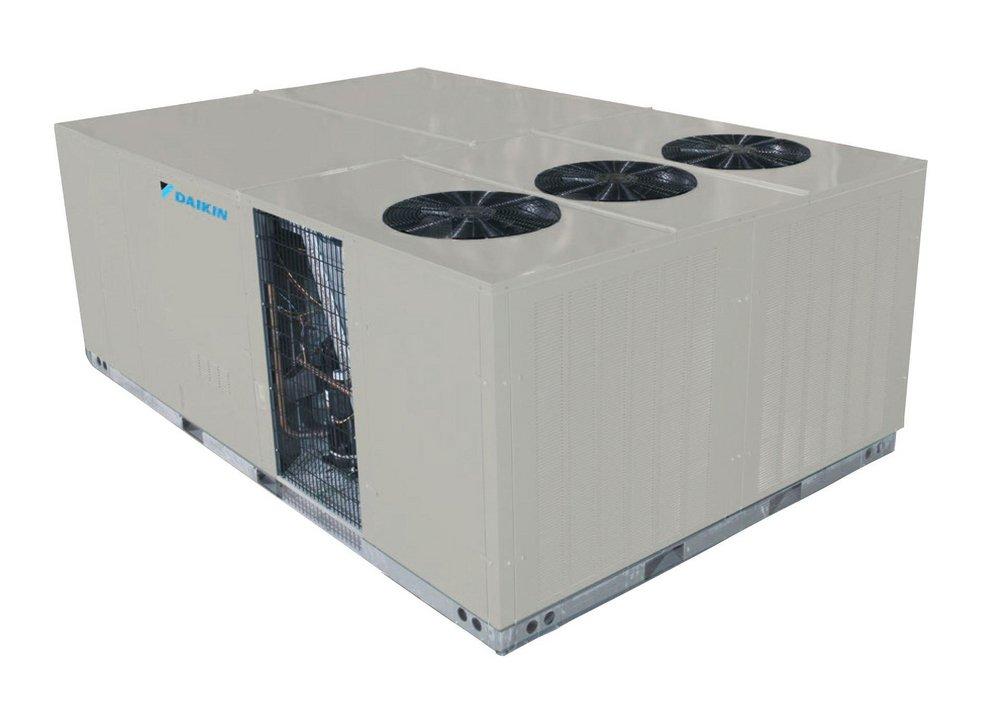

DFC Series 20 Ton R-410A Single Stage Commercial Packaged Air Conditioner
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Daikin
DFC Series
20 Ton R-410A Single Stage Commercial Packaged Air Conditioner
DFC2403D000001S
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Daikin packaged rooftop units are made with high quality galvanized steel with a powder-paint finish to provide higher corrosion resistance
- High performance, low noise scroll compressors with stage control to match the required total load for efficient part load control
- Supply fan will be 2 direct-drive motors. Ball bearing direct-drive EEM motor removes the need for belts, sheaves, bearings and lubrication
- The indoor coil section is installed in a draw through configuration to provide better dehumidification. These coils are constructed with seamless copper tubes, mechanically bonded into aluminum plate-type fins with full drawn collars to completely cover the tubes for high operating efficiencies
- Packaged rooftop units come equipped with a well-organized, large, easy to use, weatherproof internal control box with easy access, for a better user experience
- Unit provides a draw-through filter section as standard for better air quality and long lasting component maintenance
- Wide range of electric heat selections effectively handle most comfort heating demand from morning warm-up control to full heat
- ETL approved electric heat is factory assembled, installed and tested
- Units are completely wired and tested at the factory to provide faster commissioning and start-up
Specifications
- A2L Compatible:
- No
- Application:
- Commercial
- BTU Cooling Rating:
- 230000 Btu/h
- Coil Type:
- Aluminum Fin
- Collection:
- DFC Series
- Compressor Stages:
- Single Stage
- Compressor Type:
- Scroll
- Configuration:
- Horizontal
- ETL Listed:
- Yes
- Factory Std. Refrigerant Charge:
- 351 oz
- Horsepower:
- 1/2 hp
- Material:
- Steel
- Phase:
- Three Phase
- Power Source:
- Electric
- Refrigerant:
- R-410A
- Refrigeration Control Type:
- TXV
- Stages:
- Single
- Tonnage:
- 20 Ton
- Volts:
- 208/230V
- Width:
- 88-1/2 in
