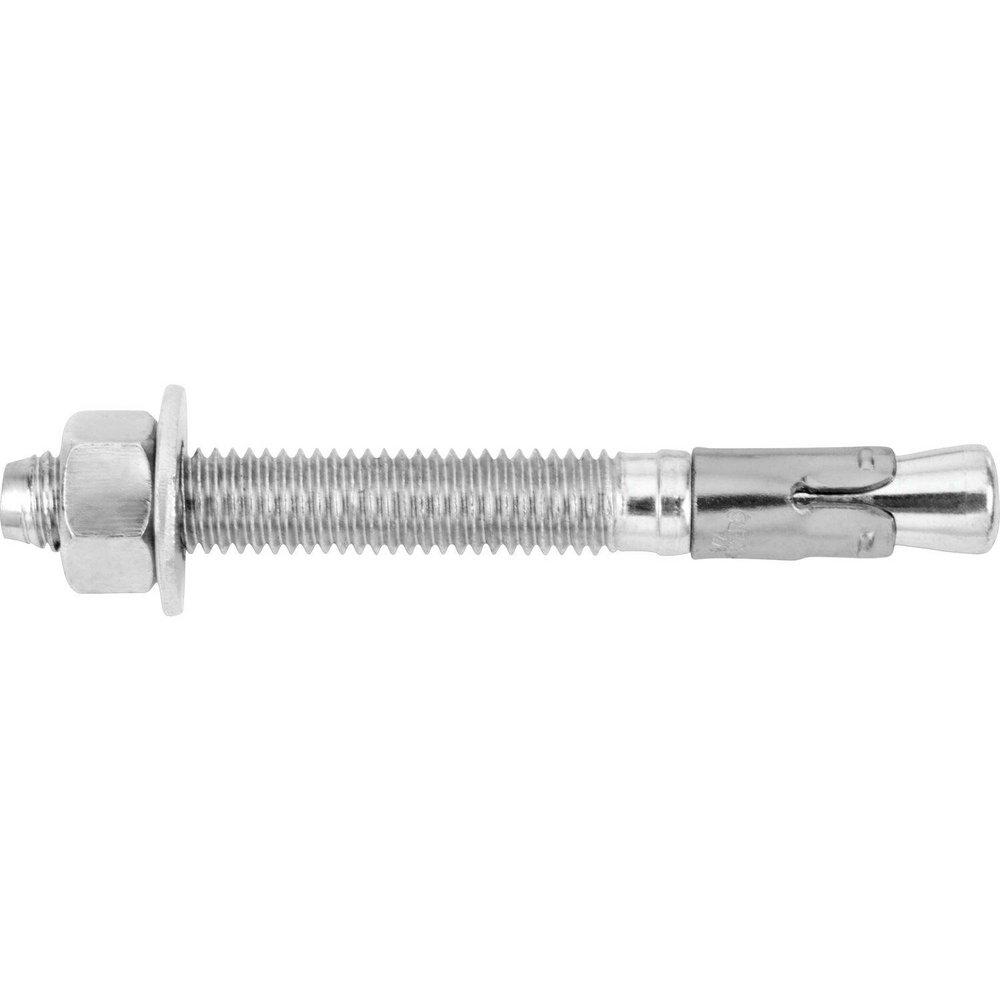

5-1/2 in. Carbon Steel Wedge Expansion Anchor
DEWALT
Power-Stud+® SD2 5-1/2 in. Carbon Steel Wedge Expansion Anchor
Package Quantity Info:
Each: 1 Inner Pack: 50 Case: 150 Pallet: 5400
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
DEWALT
Power-Stud+® SD2
5-1/2 in. Carbon Steel Wedge Expansion Anchor
7424SD2-PWR
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Consistent performance in high and low strength concrete
- Anchor can be installed through standard fixture holes
- Anchor design allows for follow-up expansion after setting under tensile loading
- Nominal drill bit size is the same as the anchor diameter
- Length ID code and identifying marking stamped on head of each anchor
Documents
Specifications
- ANSI:
- ANSI B18.22.2, ANSI B212.15
- ASTM:
- ASTM A-563 Grade A, ASTM F-844, ASTM B-633
- Application:
- Beam, Column Anchorage, Low Level Corrosion Environment, Seismic Loading, Wind Loading, Cable Trays, Strut Channels, Pipe Support, Fire Protection
- Coating:
- Zinc Plated
- Collection:
- Power-Stud+® SD2
- Diameter:
- 1/2 in
- FM Approved:
- Yes
- Grade:
- A
- Length:
- 5-1/2 in
- Material:
- Carbon Steel, Stainless Steel
- Product Type:
- Wedge Anchor
- Thread Length:
- 1.125
- UL Listed:
- Yes
