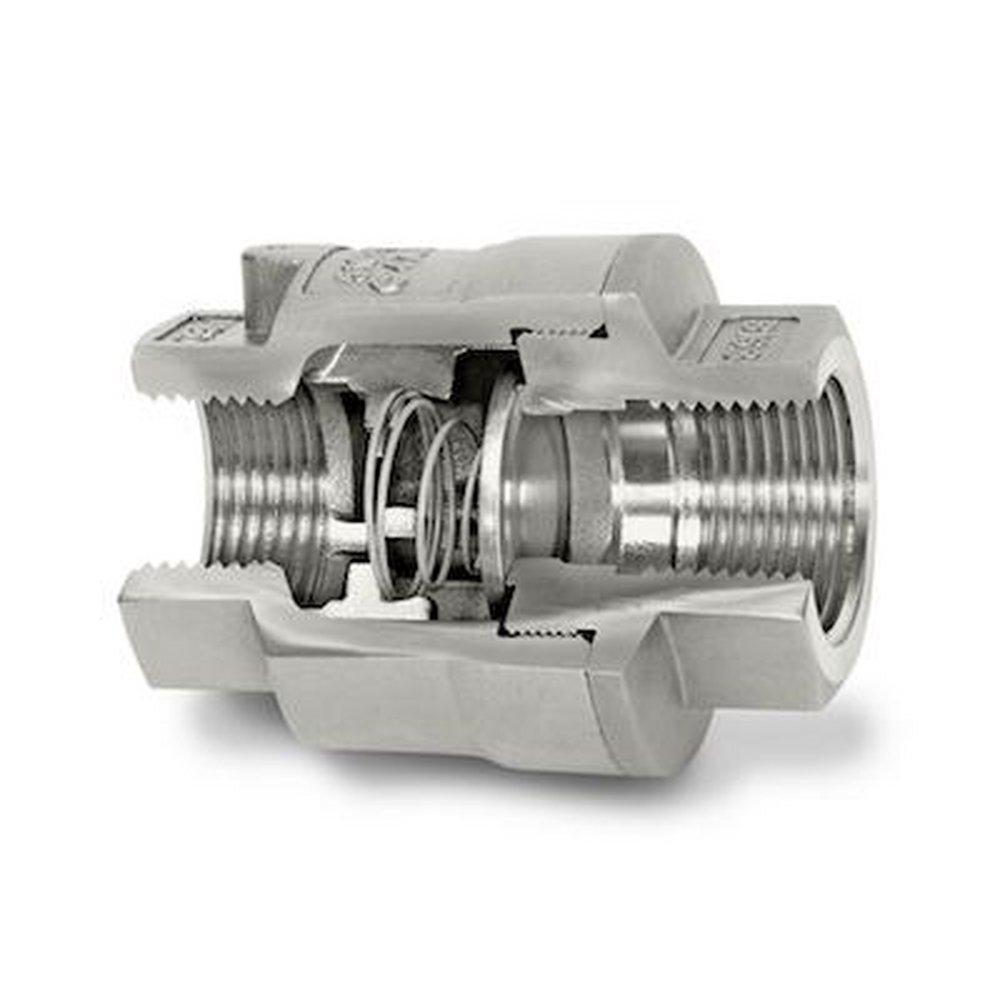

2 in. Stainless Steel NPT Check Valve
DFT
SCV® 2 in. Stainless Steel NPT Check Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
DFT
SCV®
2 in. Stainless Steel NPT Check Valve
837454
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- 1/2 in. to 3 in. line size
- 750 & 3600 CWP
- NPT & SW ends
- Stainless steel construction
- Inconel® X-750 spring
Documents
Specifications
- ANSI:
- ANSI B1.1, ANSI B1.20.1, ANSI B16.34
- ASME:
- ASME B16.34, ASME Class 300
- ASTM:
- ASTM A-351 Grade CF8M
- Collection:
- SCV®
- End Connection 1:
- NPT
- End Connection 2:
- NPT
- End Connections:
- NPT
- FM Approved:
- No
- Height:
- 4-2/5 in
- IAPMO Listed:
- No
- Installation Type:
- Horizontal Mount, Vertical Mount
- Length:
- 5 in
- MSS:
- MSS SP-126, MSS SP-25, MSS SP-61
- Material:
- Stainless Steel
- Material Type:
- 316
- Maximum Temperature:
- 470
- Minimum Temperature:
- 37
- NSF Certified:
- No
- Pressure - High:
- 500, 750
- Recommended Valve Application:
- Boiler, Chemical, Gas, Mining, Pumps, Steam, Water, Water Treatment
- UL Listed:
- No
- Valve Body Material:
- Stainless Steel
- Valve Body Style:
- Threaded
- Valve Disc Material:
- 316 Stainless Steel
- Valve Seat Material:
- CF8M
- Valve Size:
- 2 in
- Valve Type:
- Check Valve
- Weight:
- 7.7 lb
- Width:
- 4-2/5 in
