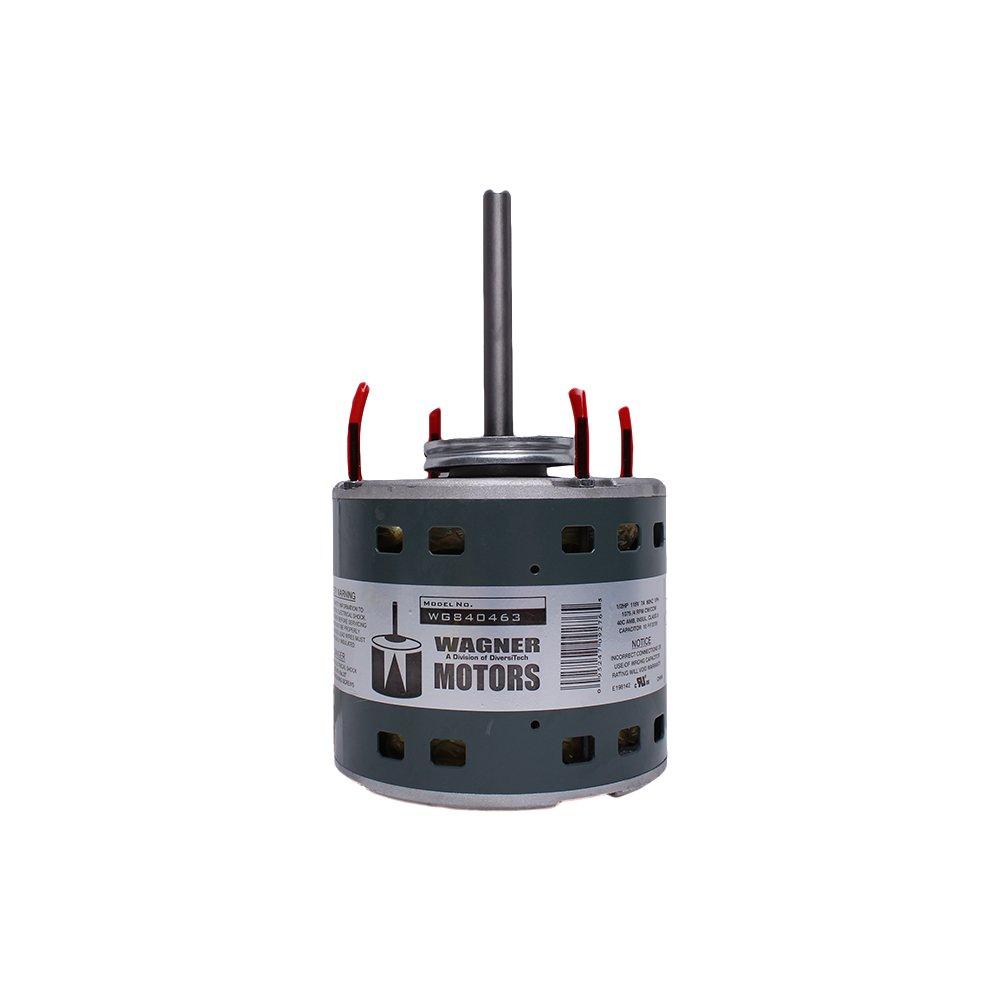

1/2 hp 1075 RPM 115V ECM Variable Speed Motor
You last purchased this on
DiversiTech®
1/2 hp 1075 RPM 115V ECM Variable Speed Motor
Purchase history
DiversiTech®
1/2 hp 1075 RPM 115V ECM Variable Speed Motor
WG840463
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
Product Details
- Direct drive furnace blower motors are specially designed to cover a range of applications. The motors are electrically reversible, feature an automatic thermal overload protector and a standard 48 frame motor casing size.
- Motors feature reversing plugs, extended thru bolts, 36 inch leads and low power consumption.
- Ball bearing design allows for greater heat endurance, improved performance, increased reliability, and enhanced motor life.
- Extended mounting bolts provides easier installation in cramped spaces and allows the installer to start the threaded mounting nut quickly and efficiently.
- The electrical reversing plug simplifies rotation direction changes and the wires are thirty inches long, making it easier for the contractor to install the new motor.
- Run capacitor connections are insulated for increased safety and flag disconnects are provided.
- Detailed and large wiring diagrams are on the motor and the motor carton, and also in the installation and safety instruction sheet.
Specifications
- AMP:
- 7
- Blower Type:
- ECM Variable Speed
- Fan Speeds:
- Variable
- Frame Size:
- 48
- Horsepower:
- 1/2 hp
- Length:
- 12-3/4 in
- Origin:
- Global
- Product Type:
- Motor
- RPM:
- 1075
- RPM Range:
- 900-1150
- UL Listed:
- No
- Volts:
- 115V
