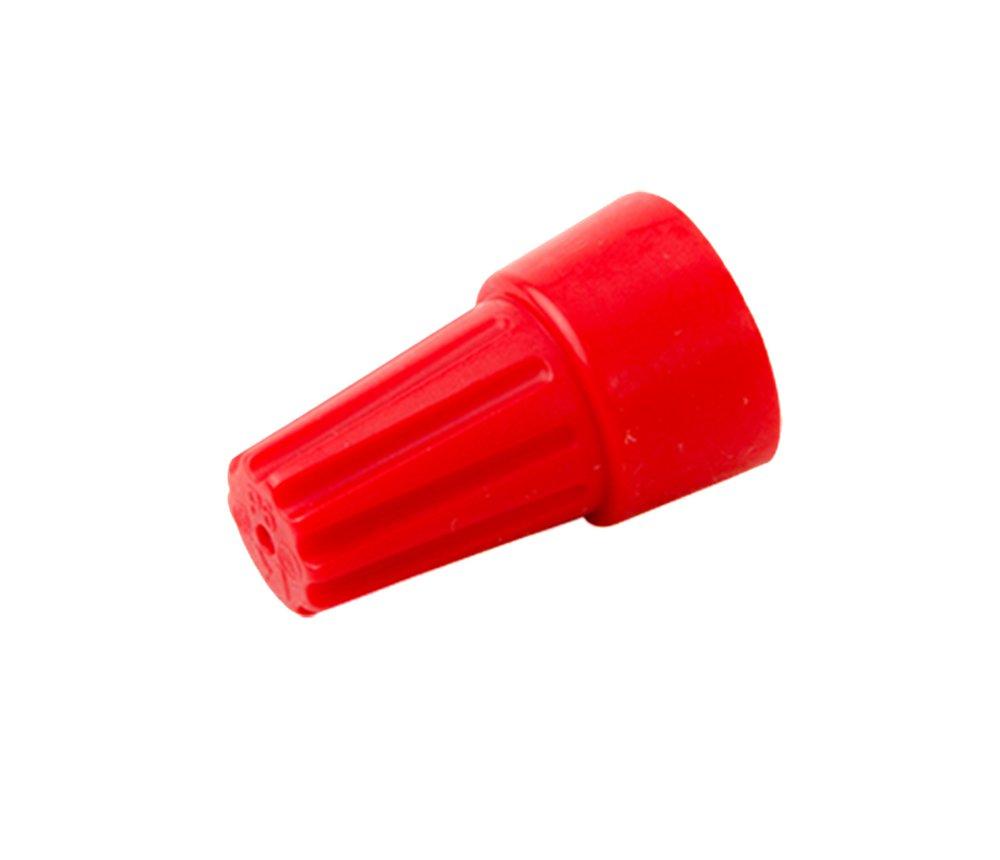

Large Standard Wire Connectors in Red
DiversiTech®
Large Standard Wire Connectors in Red
Package Quantity Info:
Each: 1 Inner Pack: 100 Case: 100
How to get it:
-
Pick Up Not AvailableNot available in OH
-
Shipping Not AvailableNot available at this timeShipping Not AvailableNot available in OH
Purchase history
DiversiTech®
Large Standard Wire Connectors in Red
6296
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Connectors are color coded with spring inserts. Heat resistant (105 degree C) thermoplastic. Connectors are for copper to copper connections. Parts 6294 and 6296 can connect aluminum to aluminum and copper to aluminum (dry locations only).
- No pre-twisting of conductors is required since the spring creates its own thread.
- Reusable screw-on wire connector threads on or off for fast and easy circuit changes or additions.
- Threaded funnel entry guides wire into connector cleanly without strand splaying.
- The heat resistant (105 degree C) thermoplastic ribbed-cap provides a secure grip and will not crack or break.
- Deep skirt wire entry provides protection from flash-over and shorts.
Specifications
- Color Finish Name:
- Red
- Height:
- 1/2
- Length:
- 7-3/4
- Material:
- Plastic
- Material Type:
- Thermoplastic
- Temperature Range:
- Up to 105 Deg C
- Type:
- DIV6296
- UPC:
- 780653016886
- Width:
- 2-1/2
