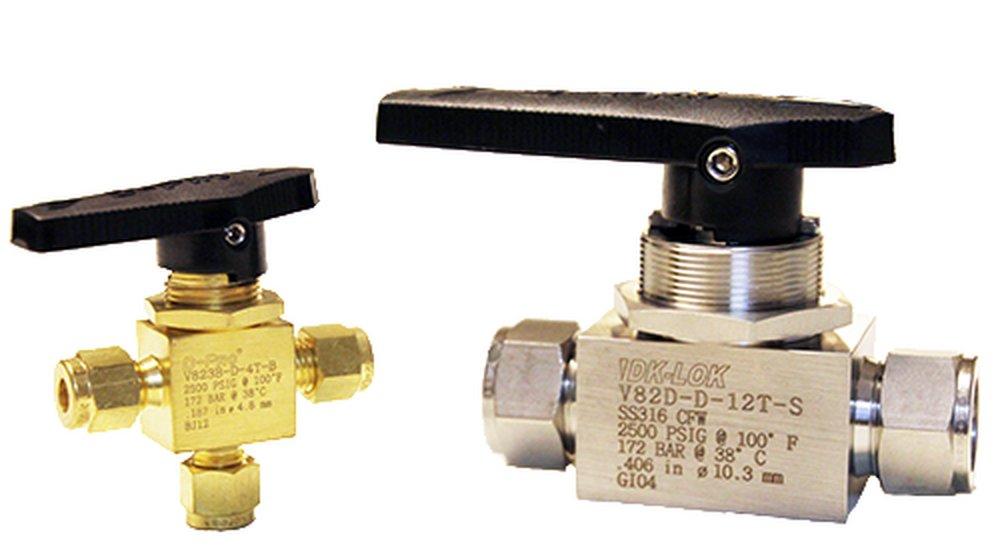

3/8 in. Stainless Steel OD Tube Ball Valve
DK-LOK®
V82 Series 3/8 in. Stainless Steel OD Tube Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
DK-LOK®
V82 Series
3/8 in. Stainless Steel OD Tube Ball Valve
V82B-D-6T-S
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Sealing is achieved without system pressure
- Bi-directional flow
- Pressure up to 3000 psi (206 bar)
- Lowest dead space design
- Nylon directional handle - indicates the flow through the valve
- Panel mounting nut - is standard and permits valve to panel or actuator
- Top-loaded packing - allows packing adjustment with the valve in-line
- Capsule packing - fills voids in the valve body and prevents fluid entrapment. Allows lowest dead space
- Support rings and discs - retains the capsule
Documents
Specifications
- ASME:
- ASME N, ASME NPT, ASME NS
- ASTM:
- ASTM A-276, ASTM A-479
- Clean Bagged:
- No
- Collection:
- V82 Series
- End Connection 1:
- OD Tube
- End Connection 2:
- OD Tube
- End Connections:
- OD Tube
- Fire Suppression System Rated:
- No
- Handle Material:
- Nylon
- ISO:
- ISO 14001, ISO 9001
- Length:
- 2-29/50 in
- Material:
- Stainless Steel, Plastic
- Material Type:
- 316, PTFE, Nylon
- Pressure - High:
- 3000
- Temperature Range:
- 50 to 150 Deg F (10 to 65 Deg C)
- Valve Body Material:
- Stainless Steel
- Valve Body Style:
- 2-way
- Valve Operator:
- Lever Handle
- Valve Seat Material:
- PTFE
- Valve Size:
- 3/8 in
- Valve Type:
- Ball Valve
- Width:
- 39/50 in
- cUPC Certified:
- No
