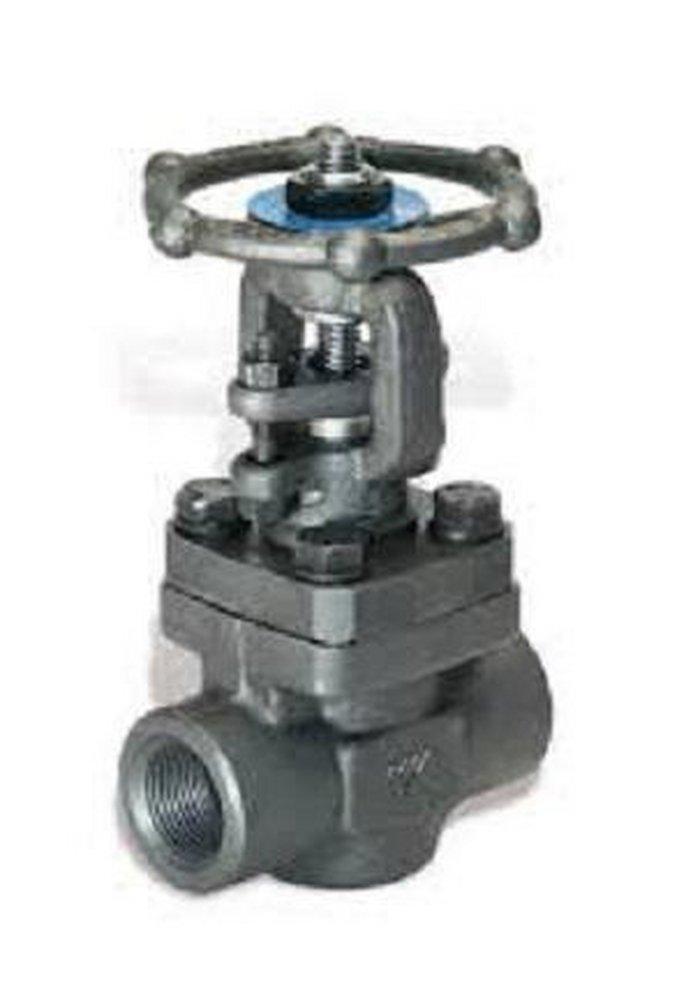

1-1/2 in. 800# Threaded A105 T8 Gate Valve Reduced Port Bolted Bonnet Forged Steel DSI 4121-A8-18
DSI Forum Energy Technologies
1-1/2 in. 800# Threaded A105 T8 Gate Valve Reduced Port Bolted Bonnet Forged Steel DSI 4121-A8-18
Package Quantity Info:
Each: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
DSI Forum Energy Technologies
1-1/2 in. 800# Threaded A105 T8 Gate Valve Reduced Port Bolted Bonnet Forged Steel DSI 4121-A8-18
4121A818 1-1/2
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
Documents
Specifications
- ANSI:
- ANSI B1.20.1, ANSI B16.10, ANSI B16.11, ANSI B16.34, ANSI B16.5, ANSI B31.3
- API:
- API 602
- ASME:
- ASME B1.20.1, ASME B16.10, ASME B16.11, ASME B16.34, ASME B16.5, ASME B31.3
- ASTM:
- ASTM A105N, ASTM A182, ASTM A193 B7M, ASTM A193 B8, ASTM A194 2HM
- End Connection 1:
- NPT
- End Connection 2:
- NPT
- End Connections:
- NPT
- FM Approved:
- No
- Handle Material:
- Carbon Steel
- MSS:
- MSS SP-25, MSS SP-6
- Material:
- Forged Steel
- NSF Certified:
- No
- Pressure Class:
- 800#
- UL Listed:
- No
- Valve Body Material:
- Forged Steel
- Valve Bonnet Type:
- Bolted
- Valve Operator:
- Handwheel
- Valve Port Opening:
- Standard Port
- Valve Seat Material:
- Stellite
- Valve Size:
- 1-1/2 in
- Valve Type:
- Gate Valve
