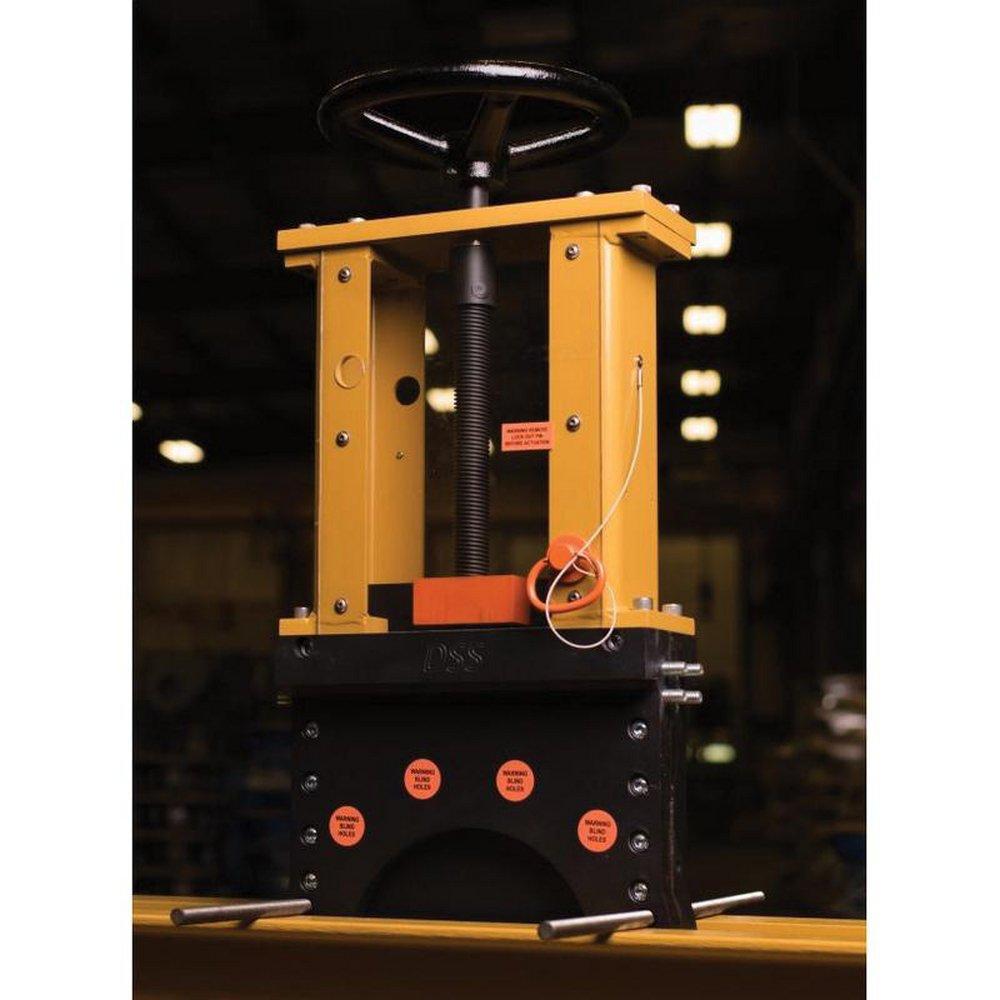

3 in. Stainless Steel Stainless Steel AFLAS PHEN xYL HP KGV HW
DSS Valves
3 in. Stainless Steel Stainless Steel AFLAS PHEN xYL HP KGV HW
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
DSS Valves
3 in. Stainless Steel Stainless Steel AFLAS PHEN xYL HP KGV HW
SV1S03-SS-SS-AF/1-HW
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Non-rising stem made from stainless steel and xylan-coated eliminating corrosion issues while reducing actuation torque
- Fully welded steel top structure provides the strength and rigidity needed for demanding applications
- Internal radial seat is resilient and mechanically retained, allowing for zero leakage isolation regardless of flow direction
- Atmospheric seals are standard on all valve sizes above 3 in, this seal ensures that the pipeline media remains contained, eliminating costly clean-up and disposal of external leaks
- DSS Severe Service™ knife gate valves are fully compliant to MSS SP-135 pressures
- Face-to-face compliant with MSS SP-135
- Dust covers protect personnel from any moving parts while keeping dust and debris away from actuation equipment
- High-visibility OSHA compliant lockout tagout pin assures that the gate position is identifiable even from a distance
- Resilient cavity seals include phenolic gate cleansers that protect the seal from harmful contaminants and are packable under full service pressures
- Full round port minimizes pressure drop, with virtually no obstruction within the valve, pipe installations are protected from harmful turbulence
Documents
Specifications
- API:
- API 598
- ASME:
- ASME 16.34, ASME 16.47, ASME 16.5
- ISO:
- ISO 9001
- MSS:
- MSS SP-25, MSS SP-55, MSS SP-81, MSS SP-135, MSS SP-151, MSS SP-152
- Material:
- Stainless Steel
- Valve Body Material:
- Stainless Steel
- Valve Operator:
- Wheel Handle
- Valve Seat Material:
- Aflas
- Valve Size:
- 3 in
- Valve Type:
- Knife Gate Valve
