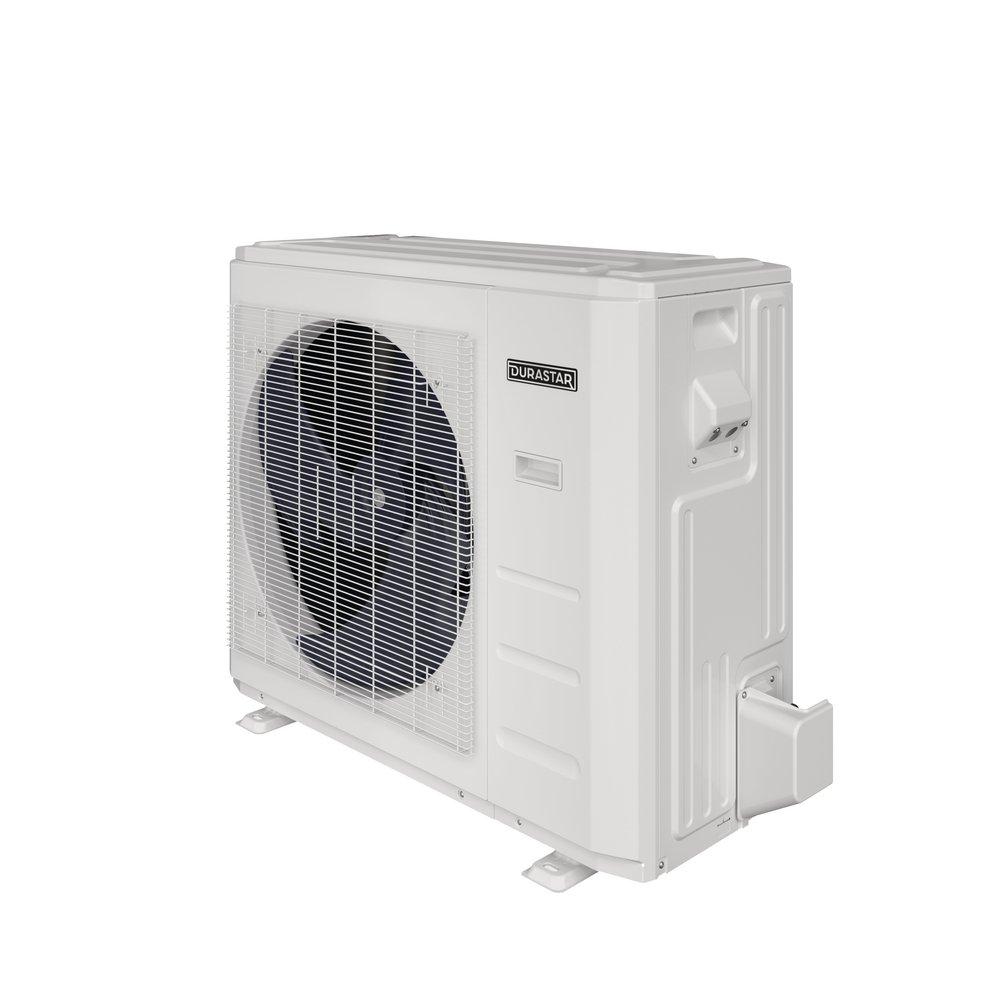

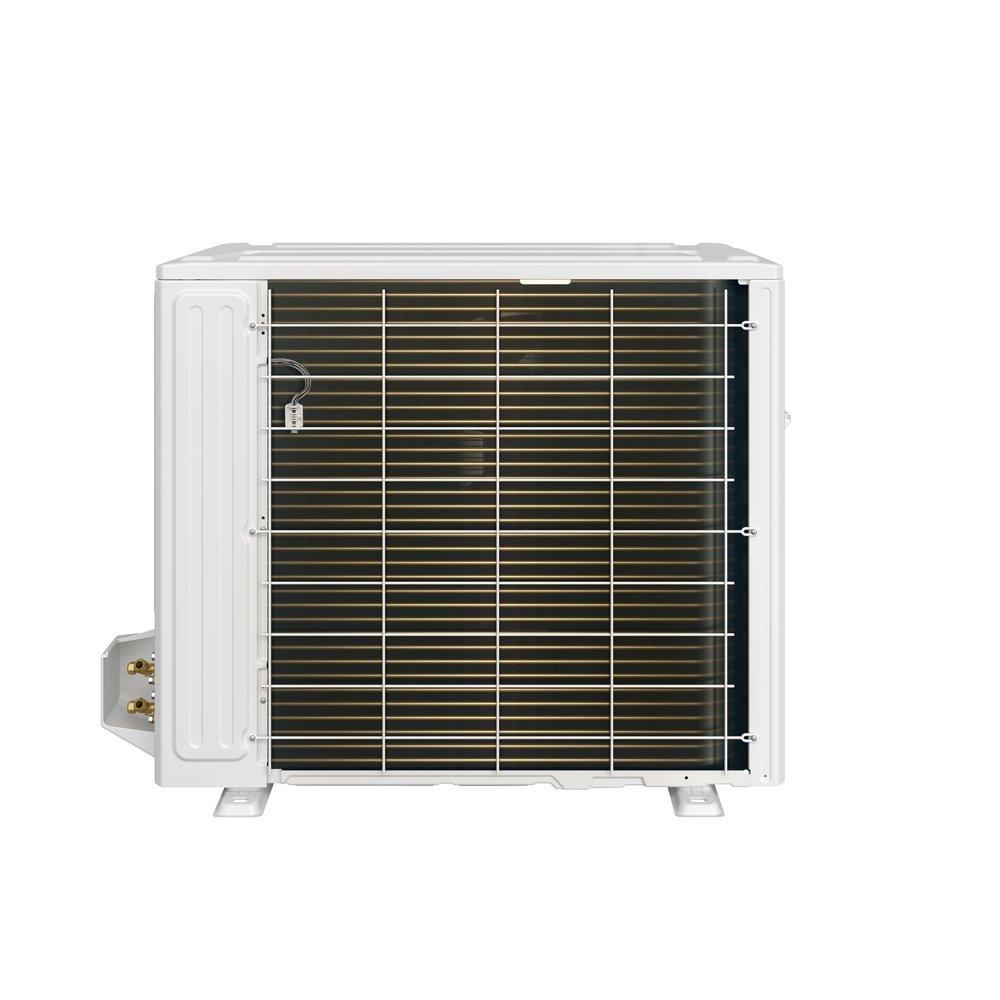

36,000 BTU Side Discharge Communicating/24V Heat Pump- 208/230V
Durastar
36,000 BTU Side Discharge Communicating/24V Heat Pump- 208/230V
Purchase history
Durastar
36,000 BTU Side Discharge Communicating/24V Heat Pump- 208/230V
DRA1U36S1A
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Included base pan heater
- Variable speed inverter compressor
- 24V Compatible
- Anti-corrosion fin coating
- Quiet operation
- Operational temperature down to -13 oF
Dimensions & Measurements
CFM
2235 ft3/min
Depth
16-1/8 in
Height
31-7/8 in
Liquid Line (OD)
3/8 in
Suction Line (OD)
3/4 in
Weight
152 lb
Width
37-1/4 in
Characteristics & Features
A2L Compatible
No
Auto Switching Heat
Yes
Compressor Type
Inverter
EER2
10.1
EER2 Range
0 - 10.5
HSPF2 Range
7.5 - 25.0
Indoor Outdoor
Outdoor
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Refrigerant
R-410A
SEER2
16.9
SEER2 Range
15.2 - 40.0
Electrical & Operational Information
AMP
15.8, 15.8
BTU
36000
BTU Cooling Rating
36000 Btu/h
BTU Heat Rating
36000 Btu/h
Decibel Rating (dB)
60
Max Fuse Size
40
MBH
36
Phase
Single Phase
Volts
208/230V
Watts
3560 W
Zones
1
Warranty & Product Information
Application
Residential
Energy Star Compliant
No
HSPF2
8.2
Type
DRA1U36S1A
UPC
781889964200
