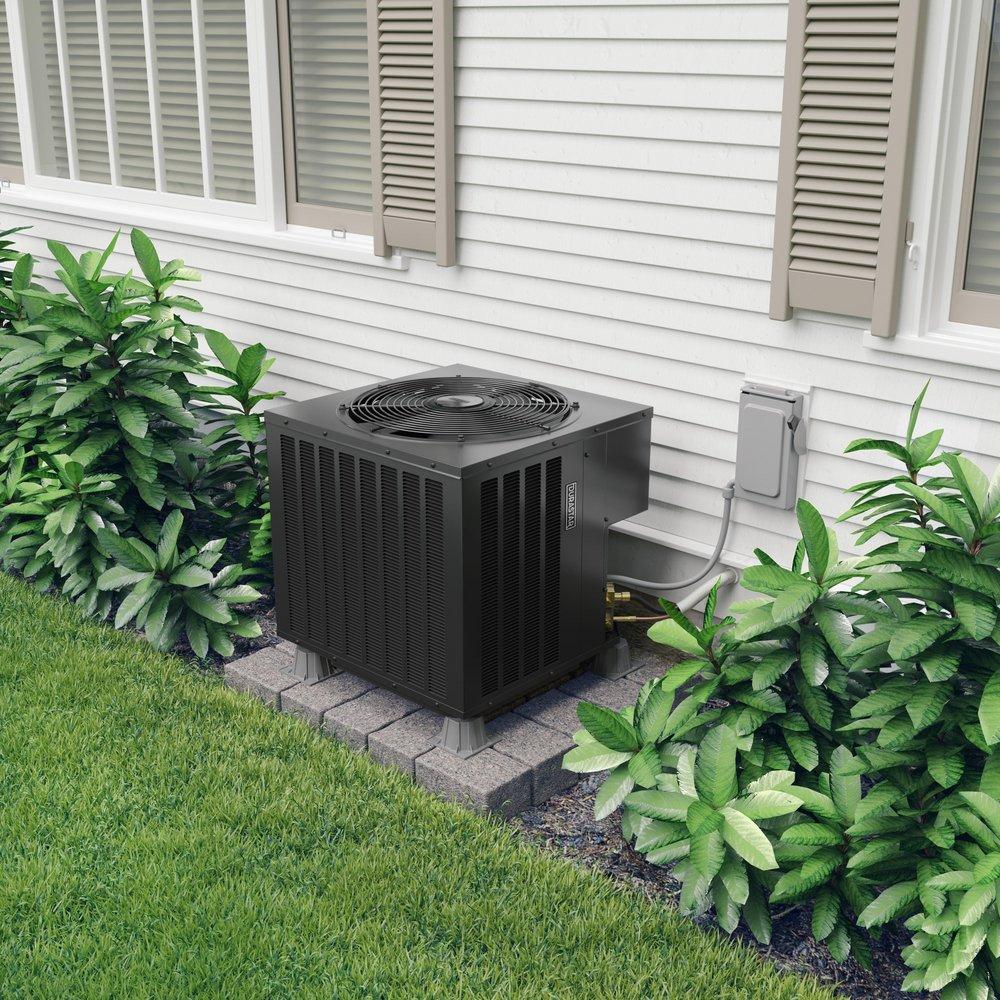

3 Ton - 14.3 SEER2 - Heat Pump - R-454B
Durastar
DRHP14B36 Series 3 Ton - 14.3 SEER2 - Heat Pump - R-454B
Points
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
Durastar
DRHP14B36 Series
3 Ton - 14.3 SEER2 - Heat Pump - R-454B
DRHP14B36AJ2ANA
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- A2L compatible
- Fully Louvered Steel Cabinet
- Two-Stage Scroll Compressor
- 7MM Condenser Copper Coil
- Inverted Reversing Valve
- Easily Accessible Control Box
- Designed for Sustainability with Low GWP
Product Information
-
A2L Compatible
Dimensions & Measurements
CFM
4077 ft3/min
Depth
33-131/200 in
Height
35-17/100 in
Liquid Line (OD)
3/8 in
Suction Line (OD)
3/4 in
Tonnage
3 Ton
Weight
213 lb
Width
33-131/200 in
Characteristics & Features
A2L Compatible
Yes
Collection
DRHP14B36 Series
Communicating
Non-Communicating
Compressor Type
Scroll
EER2
9
EER2 Range
0 - 10.5
Factory Std. Refrigerant Charge
94 oz
HSPF2 Range
7.5 - 25.0
Number of Condenser Fan Motors
1
Refrigerant
R-454B
SEER2
14.3
SEER2 Range
14.3 - 15.1
Electrical & Operational Information
AMP
20
BTU
36000
BTU Cooling Rating
34200 Btu/h
Decibel Rating (dB)
72 dB
Lock Rotor Amps (LRA)
90
Max Fuse Size
30
Maximum Overcurrent Protection (MOP)
30
MBH
36
Minimum Circuit Ampacity (MCA)
20
Phase
Single Phase
Power Source
Electric
Rated Load Amps (RLA)
15
Volts
208/230V
Warranty & Product Information
Application
Residential
CEC Compliant
For Sale in CA
HSPF2
7.5
UL Listed
Yes
UPC
662021692314
