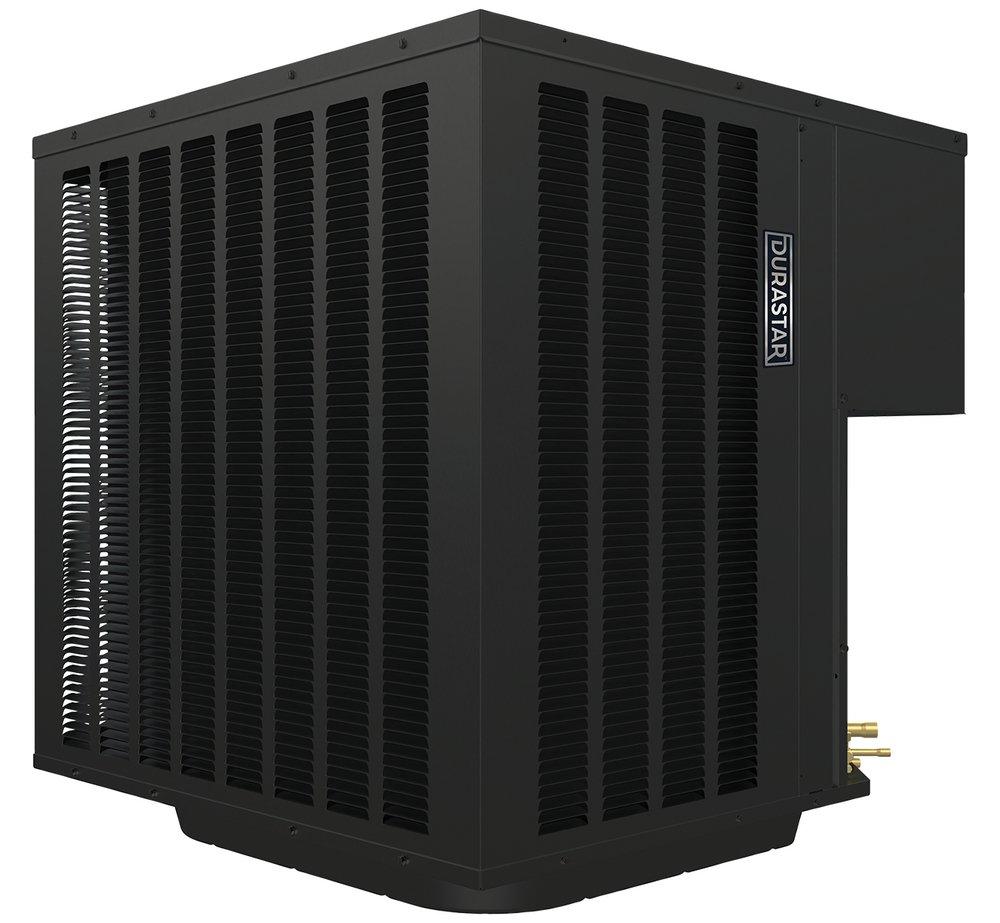

3 Ton - 14.3 SEER2 - Heat Pump - R-454B
Durastar
DRHP14B36 Series 3 Ton - 14.3 SEER2 - Heat Pump - R-454B
Points
Package Quantity Info:
Each: 1 Inner Pack: 1Purchase history
Durastar
DRHP14B36 Series
3 Ton - 14.3 SEER2 - Heat Pump - R-454B
DRHP14B36AJ2ANA
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- A2L compatible
- Fully Louvered Steel Cabinet
- Two-Stage Scroll Compressor
- 7MM Condenser Copper Coil
- Inverted Reversing Valve
- Easily Accessible Control Box
- Designed for Sustainability with Low GWP
-
A2L Compatible
Specifications
- A2L Compatible:
- Yes
- AMP:
- 20
- Application:
- Residential
- BTU:
- 36000
- BTU Cooling Rating:
- 34200 Btu/h
- CEC Compliant:
- For Sale in CA
- CFM:
- 4077 ft3/min
- Collection:
- DRHP14B36 Series
- Communicating:
- Non-Communicating
- Compressor Type:
- Scroll
- Decibel Rating (dB):
- 72 dB
- Depth:
- 33-131/200 in
- EER2:
- 9.0
- Factory Std. Refrigerant Charge:
- 94 oz
- HSPF2:
- 7.5
- Height:
- 35-17/100 in
- Liquid Line (OD):
- 3/8 in
- Lock Rotor Amps (LRA):
- 90
- MBH:
- 36
- Max Fuse Size:
- 30
- Maximum Overcurrent Protection (MOP):
- 30
- Minimum Circuit Ampacity (MCA):
- 20
- Number of Condenser Fan Motors:
- 1
- Phase:
- Single Phase
- Power Source:
- Electric
- Rated Load Amps (RLA):
- 15
- Refrigerant:
- R-454B
- SEER2:
- 14.3
- Suction Line (OD):
- 3/4 in
- Tonnage:
- 3 Ton
- UL Listed:
- Yes
- UPC:
- 662021692314
- Volts:
- 208/230V
- Weight:
- 213 lb
- Width:
- 33-131/200 in
