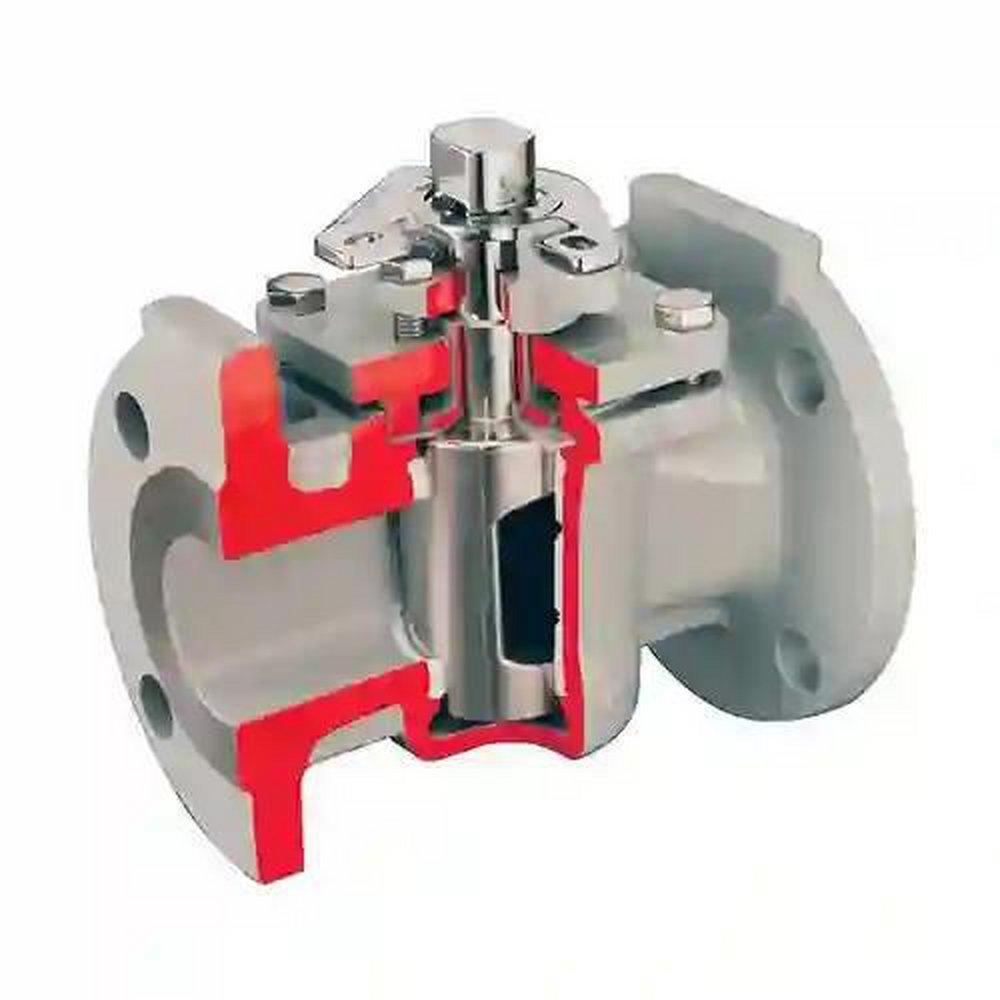

1 in. 300# RF FLG Monel PTFE Plug Valve with Wrench Operator HF ALKY Monel Body, Monel Plug, PTFE Sleeve, Quality Plan CM2678

Durco-Brand of Flowserve

Sleeveline® 1 in. 300# RF FLG Monel PTFE Plug Valve with Wrench Operator HF ALKY Monel Body, Monel Plug, PTFE Sleeve, Quality Plan CM2678

  • Fast #
  • Part #DG4BHFZ31CM2678G
  • Item #9546624
  • Manufacturer Part #1-G4BZ31
3.3 out of 5 Customer Rating
Brand image
Durco-Brand of Flowserve 300# RF FLG Monel PTFE Plug Valve with Wrench Operator HF ALKY Monel Body, Monel Plug, PTFE Sleeve, Quality Plan CM2678
Durco-Brand of Flowserve 300# RF FLG Monel PTFE Plug Valve with Wrench Operator HF ALKY Monel Body, Monel Plug, PTFE Sleeve, Quality Plan CM2678
Durco-Brand of Flowserve

Sleeveline® 1 in. 300# RF FLG Monel PTFE Plug Valve with Wrench Operator HF ALKY Monel Body, Monel Plug, PTFE Sleeve, Quality Plan CM2678

  • Fast #
  • Part #DG4BHFZ31CM2678G
  • Item #9546624
  • Manufacturer Part #1-G4BZ31
3.3 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Dependable, tight shutoff and in-line seal adjustment from tapered plug design
  • Lower maintenance costs due to design that utilizes two adjuster fasteners that permit in-line seal adjustments under pressure within seconds
  • Low fugitive emissions through fluoropolymer reverse-lip diaphragm that provides a pressure-activated, self-energizing dynamic and static stem seal
  • Compatibility with a range of Automax actuators and other instrumentation
  • Options for lethal, toxic and sub-zero fluid services plus process control and high flow requirements
  • Requires Certification

Specifications

ANSI:
ANSI Class 300
API:
API 5, API 598, API 607
ASME:
ASME B16.10, ASME B16.34, ASME B16.42 1998, ASME B16.5
Collection:
Sleeveline®
End Connection 1:
Flanged
End Connection 2:
Flanged
End Connections:
Flanged
FM Approved:
No
ISO:
ISO 15848-1
Length:
5 in
MSS:
MSS SP-54, MSS SP-55, MSS SP-61
Material:
Plastic, Synthetic Fiber, Monel
Material Type:
Durlon II, PTFE, TMHT, UMPHWE
NSF Certified:
No
Pressure - Maximum:
720 psi
Pressure Class:
300#
Recommended Valve Application:
Water
UL Listed:
No
Valve Body Material:
Monel
Valve Body Style:
Inline
Valve Operator:
Hand Wheel
Valve Seat Material:
Durlon II, PTFE, TMHT, UMPHWE
Valve Size:
1 in
Valve Type:
Sleeved Plug Valve
