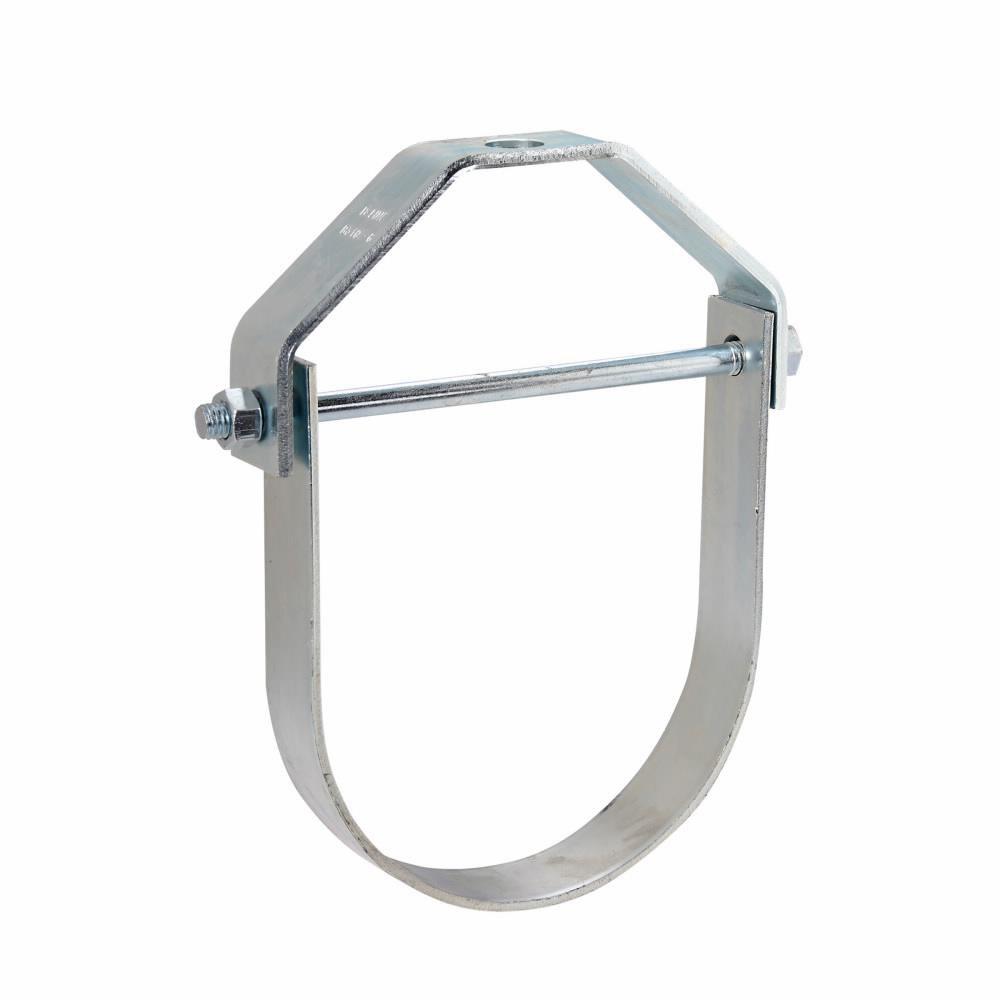

1-1/2 in. Electro-Plated Zinc Adjustable Standard Clevis Hanger
Eaton B-Line Series
1-1/2 in. Electro-Plated Zinc Adjustable Standard Clevis Hanger
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 25 Pallet: 4975Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Eaton B-Line Series
1-1/2 in. Electro-Plated Zinc Adjustable Standard Clevis Hanger
78101105025
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Standard clevis hanger is recommended for the suspension of non-insulated pipe or insulated pipe with a B3151 shield
- Pipe will not 'pinch' when installing
- Swing in either direction allows pipe to easily feed thru
- Engineered design aligns bolt holes for quicker overhead installation
- TOLCO seismic restraint systems guidelines
- MSS SP-69 & SP-58, type 1
- Also available to accommodate rod schedule per national fire protection association (NFPA) pamphlet 13
Dimensions & Measurements
Fits Pipe Size
1-1/2 in
Height
3/4 in
Length
3-39/100 in
Width
3-1/4 in
Characteristics & Features
Coating
Painted, Yellow Zinc Chromate
Material
Steel
Schedule Class
Standard
Work Load Limit
730 lb
Warranty & Product Information
ANSI
ANSI SP-58 Type 1, ANSI SP-69
FM Approved
Yes
MSS
MSS SP-58, MSS SP-69
Product Type
Clevis Hanger
UL Listed
Yes
UPC
781011050252
