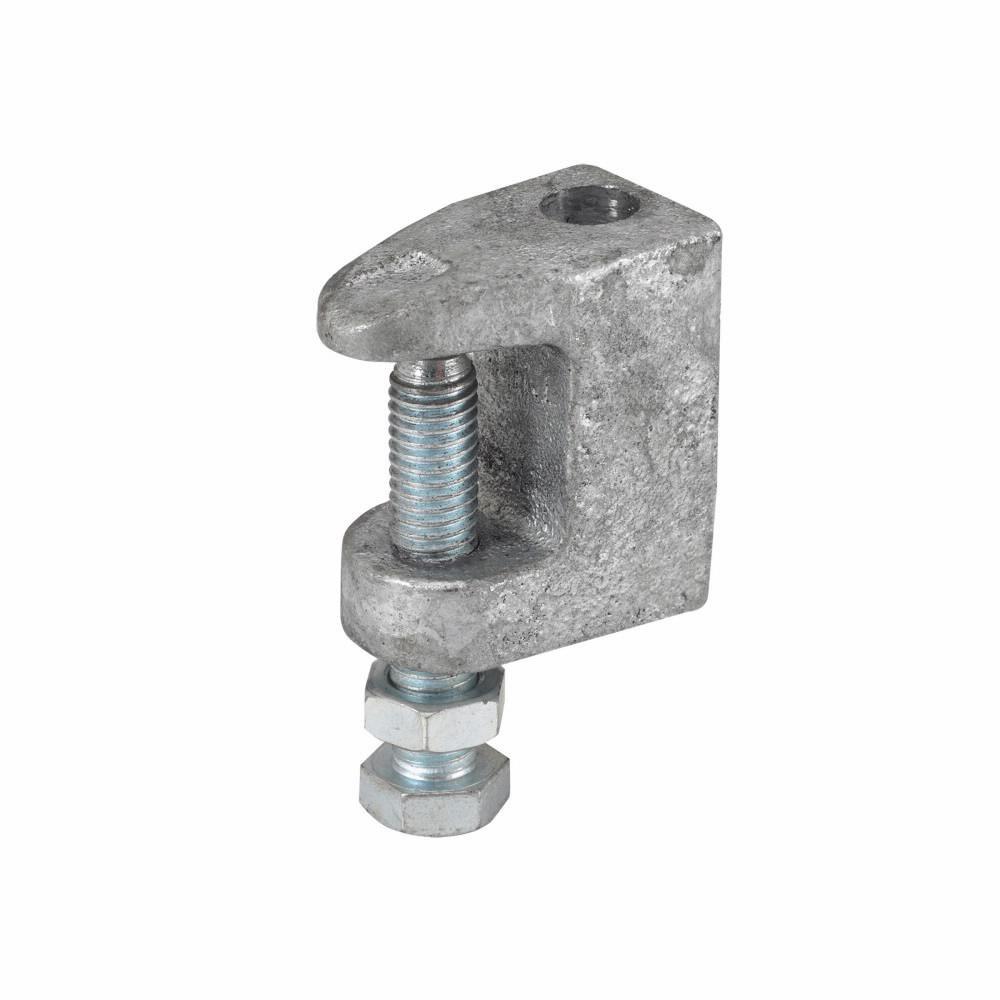

3/8 in. Plain Malleable Iron Wide Jaw C-Clamp Beam Clamp
This product has been replaced by
FNW® 3/8 in. Plain Wide Mouth UL/FM Beam Clamp
Manufacturer Part #FNW7207UPC
Manufacturer Part #FNW7207UPC
Eaton B-Line Series
3/8 in. Plain Malleable Iron Wide Jaw C-Clamp Beam Clamp
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 50 Pallet: 3750
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Eaton B-Line Series
3/8 in. Plain Malleable Iron Wide Jaw C-Clamp Beam Clamp
B3033-3/8PLN
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- For attachment to structural shapes requiring wider throat especially under roof with bar joist construction. This clamp may be used with the set screw in the up or down position
- MSS SP-69 & SP-58, Type 19 & 23
- Eaton B-Line series C-clamp
- 2.25" H x 2" L x 1.1250" W
- Malleable iron
- 500 lbs load cap
- 3/8"-16 thread/rod size
Specifications
- ANSI:
- ANSI SP-58 Type 19, ANSI SP-58 Type 23, ANSI SP-69 Type 19, ANSI SP-69 Type 23
- ASTM:
- ASTM A-1011, ASTM A-1018
- Application:
- Residential
- Coating:
- Plain
- Color Finish Category:
- Blacks
- Color Finish Name:
- Black
- Diameter:
- 1/2 in
- End Connection 1:
- Threaded
- End Connection 2:
- Threaded
- End Connections:
- Threaded
- FM Approved:
- Yes
- Fits Pipe Size:
- 1-1/4 in
- Height:
- 2-1/4 in
- Length:
- 2 in
- MSS:
- MSS SP-58 Type 19, MSS SP-58 Type 23, MSS SP-69 Type 19, MSS SP-69 Type 23
- Material:
- Malleable Iron
- Product Type:
- C-Clamp
- Rod Size (in):
- 3/8 in
- Thickness:
- 3/4 in
- UL Listed:
- Yes
- UPC:
- 781011704995
- Width:
- 1-1/8 in
- Work Load Limit:
- 500 lb
