14 x 1 in. Plated Steel Clevis Hanger
Eaton B-Line Series

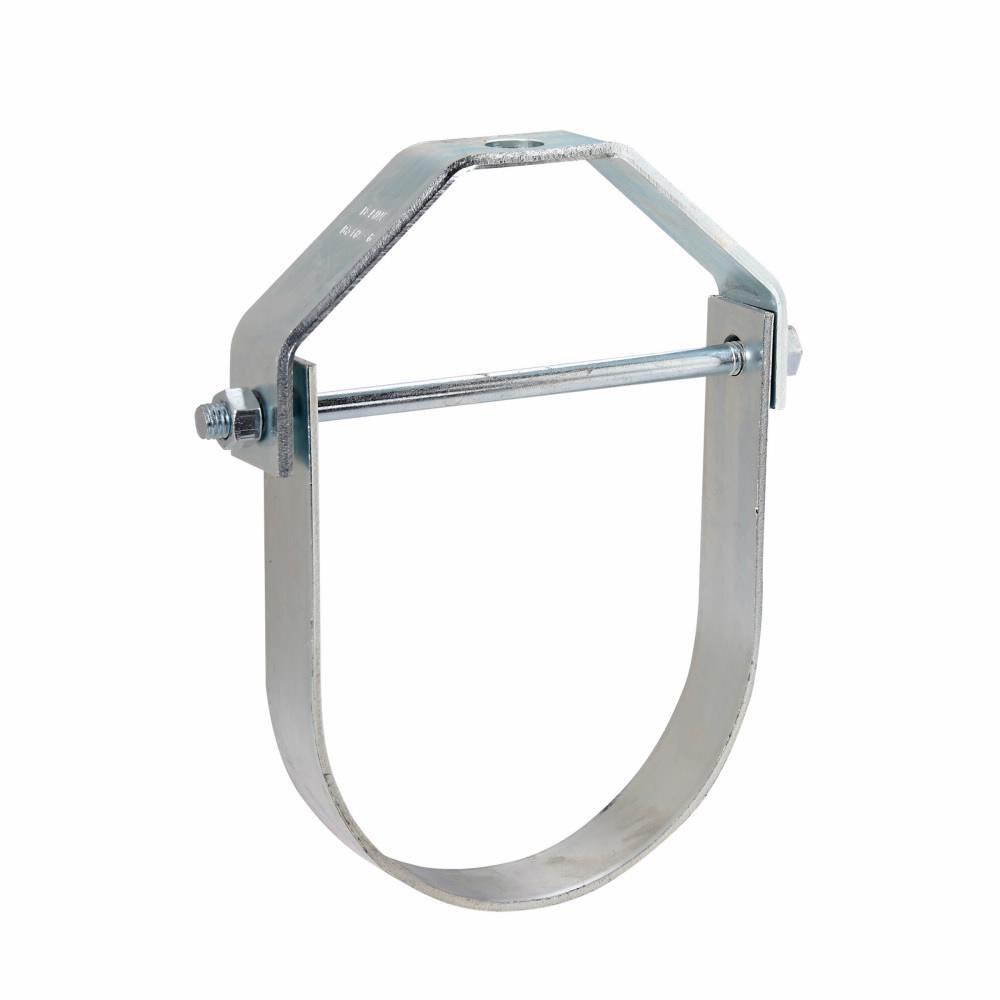

B3100 Series 14 x 1 in. Plated Steel Clevis Hanger
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 40
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Eaton B-Line Series
B3100 Series
14 x 1 in. Plated Steel Clevis Hanger
78101105091
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Standard clevis hanger is recommended for the suspension of non-insulated pipe or insulated pipe with a B3151 shield.
- Pipe will not ‘pinch’ when installing.
- Swing in either direction allows pipe to easily feed thru
- Engineered design aligns bolt holes for quicker overhead installation.
- TOLCO Seismic Restraint Systems Guidelines.
- MSS SP-69 & SP-58, Type 1.
- Also available to accommodate rod schedule per National Fire Protection Association (NFPA) Pamphlet 13
Specifications
- ANSI:
- ANSI SP-58, ANSI SP-69
- Application:
- Insulated Pipes, Non-Insulated Pipes
- Collection:
- B3100 Series
- FM Approved:
- Yes
- Fits Pipe Size:
- 14 in
- Height:
- 2 in
- Length:
- 19-3/8 in
- MSS:
- MSS SP-58, MSS SP-69
- Material:
- Steel
- Product Type:
- Clevis Hanger
- Rod Size (in):
- 1 in
- UL Listed:
- Yes
- UPC:
- 781011050917
- Width:
- 18-5/8 in
- Work Load Limit:
- 4200 lb
