3/4 in. Plain Steel Adjustable Clevis Hanger
You last purchased this on
Eaton B-Line Series

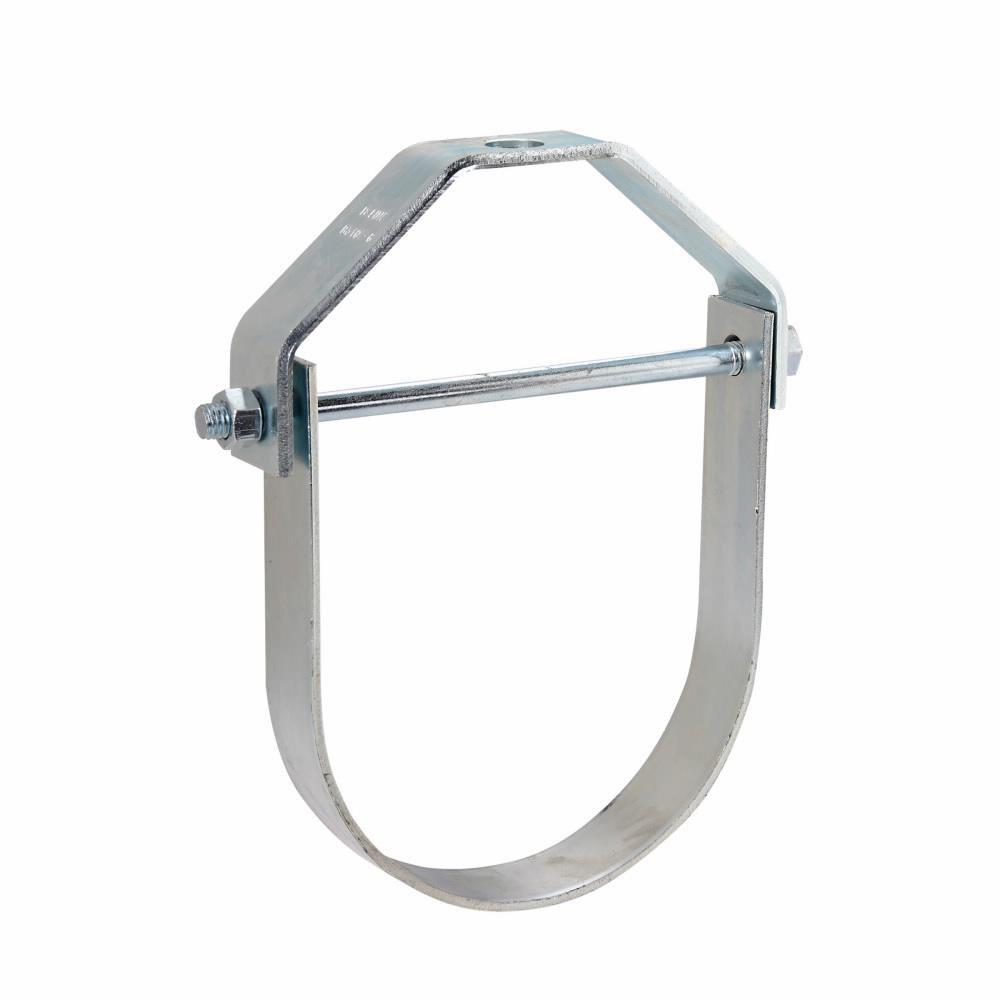

B3100 Series 3/4 in. Plain Steel Adjustable Clevis Hanger
Purchase history
Eaton B-Line Series
B3100 Series
3/4 in. Plain Steel Adjustable Clevis Hanger
78101105006
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
Product Details
- Standard clevis hanger is recommended for the suspension of non-insulated pipe or insulated pipe with a B3151 shield.
- Pipe will not ‘pinch’ when installing.
- Swing in either direction allows pipe to easily feed thru
- Engineered design aligns bolt holes for quicker overhead installation.
- TOLCO Seismic Restraint Systems Guidelines.
- MSS SP-69 & SP-58, Type 1.
- Also available to accommodate rod schedule per National Fire Protection Association (NFPA) Pamphlet 13
Specifications
- ANSI:
- ANSI SP-58 Type 1, ANSI SP-69
- Application:
- Insulated Pipes, Non-Insulated Pipes, Commercial
- Collection:
- B3100 Series
- FM Approved:
- Yes
- Fits Pipe Size:
- 4 in
- Height:
- 3/4 in
- Length:
- 2-5/8 in
- MSS:
- MSS SP-58 Type 1, MSS SP-69 Type 1
- Material:
- Steel
- Product Type:
- Clevis Hanger
- UL Listed:
- Yes
- Width:
- 2-1/2 in
- Work Load Limit:
- 730 lb
