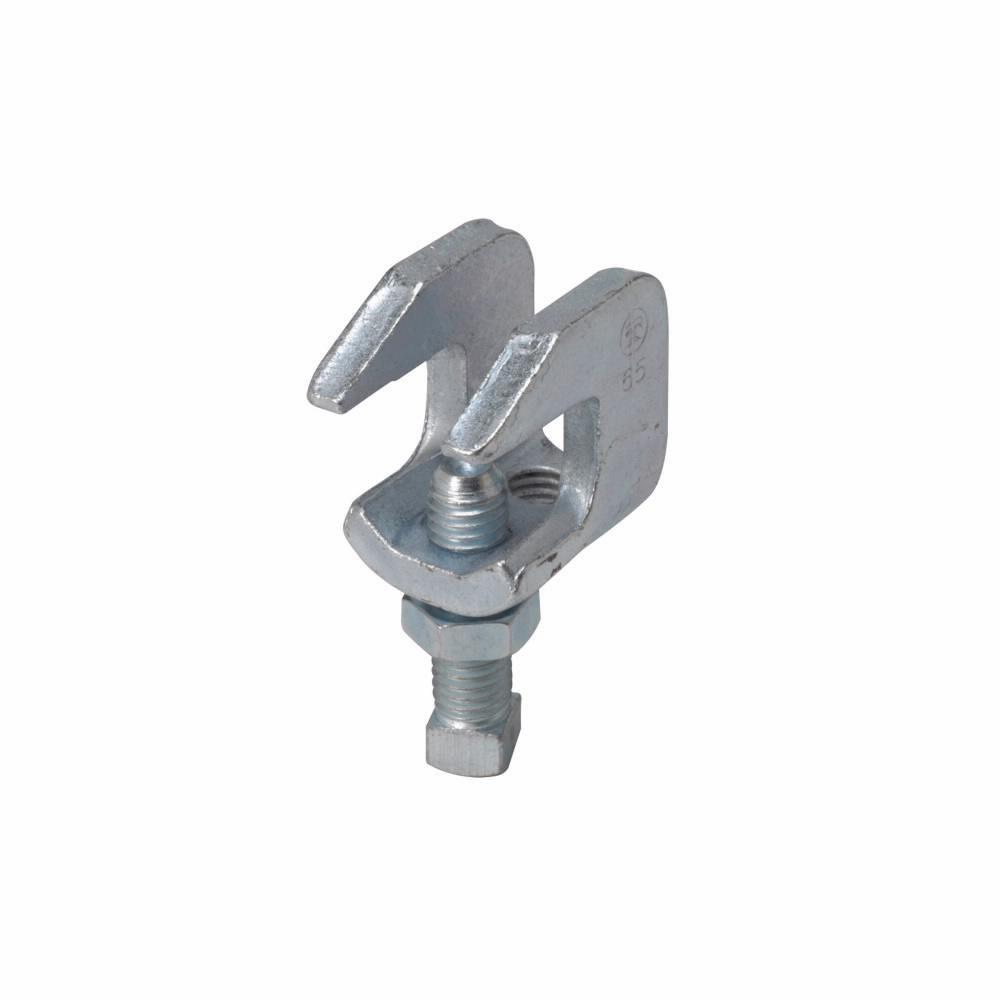

1/2 in. Plain Steel Reversible C Beam Clamp
Eaton B-Line Series
Fig 65 1/2 in. Plain Steel Reversible C Beam Clamp
Purchase history
Eaton B-Line Series
Fig 65
1/2 in. Plain Steel Reversible C Beam Clamp
FIG 65-1/2-PLN
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- 4 in (19.0mm)
- May be used on top or bottom flange of beam. (Beveled lip allows hanging from top flange where clearance is limited.)
- May be installed with set screw in up or down position. Offset design permits unlimited rod adjustment by allowing the rod to be threaded completely through the clamp
- Open design permits inspection of thread engagement
- 2 in (15mm) thru 4 in (100mm) pipe
- 2 in (15mm) thru 8 in (200mm) pipe Included in the Seismic Restraints Catalog approved by the State of California Office of Statewide Health Planning and Development (OSHPD). For additional load spacing and placement information relating OSHPD projects, please refer to the Seismic Restraint System Guidelines
- Eaton B-Line series TOLCO reversible c-type beam clamp
- 1.8750" H x 1.93" L x 4.25" W
- Steel
- 1/2"-13 thread/rod size
Specifications
- ASTM:
- ASTM A-1011, ASTM A-1018
- Application:
- Residential
- Coating:
- Plain
- Collection:
- Fig 65
- Color Finish Category:
- Blacks
- Color Finish Name:
- Black
- End Connection 1:
- Threaded
- End Connection 2:
- Threaded
- End Connections:
- Threaded
- FM Approved:
- Yes
- Fits Pipe Size:
- 4 in
- Height:
- 1-7/8 in
- Length:
- 1-93/100 in
- Material:
- Steel
- Product Type:
- C-Type Beam Clamp
- Rod Size (in):
- 1/2 in
- Thickness:
- 3/4 in
- UL Listed:
- Yes
- UPC:
- 782051713602
- Width:
- 4-1/4 in
- Work Load Limit:
- 610 lb
