This product requires certification to purchase.

4 in. Carbon Steel Flanged 290# Ball Valve

Emerson Flow Controls

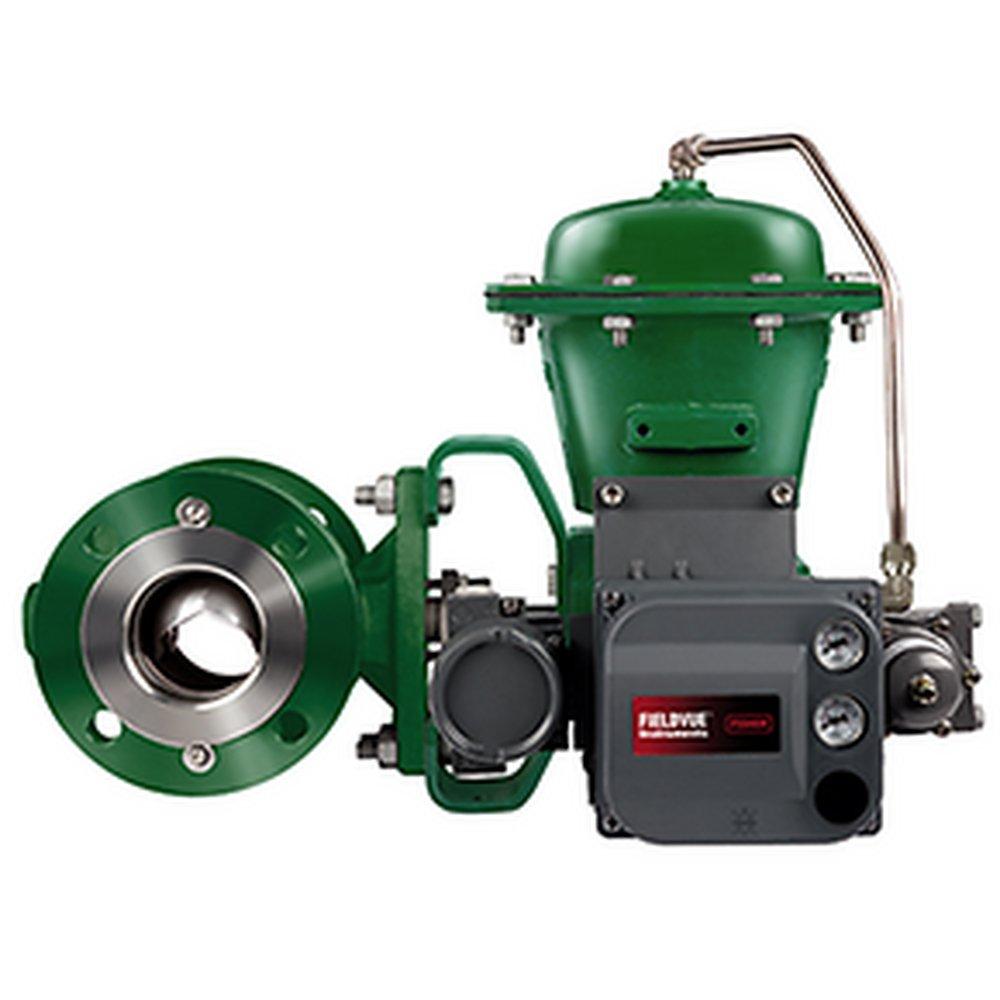

Fisher™ Vee-Ball™ 4 in. Carbon Steel Flanged 290# Ball Valve

  • Fast #
  • Part #A105DV6020304
  • Item #8144877
  • Manufacturer Part #105DV6020304 BARE STEM
3.6 out of 5 Customer Rating
Brand image
Emerson Flow Controls Carbon Steel Flanged 290# Ball Valve
Emerson Flow Controls Carbon Steel Flanged 290# Ball Valve
Emerson Flow Controls

Fisher™ Vee-Ball™ 4 in. Carbon Steel Flanged 290# Ball Valve

  • Fast #
  • Part #A105DV6020304
  • Item #8144877
  • Manufacturer Part #105DV6020304 BARE STEM
3.6 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Bay Shore, NY
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Flanged body design eliminates exposed line flange bolting, reduces alignment and installation time, and promotes secure valve installations and piping integrity
  • The solid HD ball seal construction provides long service life in demanding applications
  • Precise contouring of the vee-ball provides a modified equal percentage flow characteristic
  • Materials are available for applications involving sour liquids and gases
  • These constructions comply with NACE MR0175-2002, MR0175-2003, MR0103, and MR0175/ISO 15156
  • Ball seal inspection and replacement is done at the valve body inlet, without removing the actuator or disassembling the valve
  • The one-piece valve body improves structural integrity of the pressure boundary by eliminating leak paths that could be caused by the gaskets in two-piece, bolted valve designs
  • Requires Certification

Specifications

ANSI:
ANSI 70-2, ANSI 75.08.02
ASME:
ASME B16.10, ASME B16.34, ASME B16.5, ASME CL150
Clean Bagged:
No
Collection:
Fisher™ Vee-Ball™
End Connection 1:
Flanged
End Connection 2:
Flanged
End Connections:
Flanged
FM Approved:
No
IAPMO Listed:
No
Length:
7-31/50 in
Material:
Carbon Steel
Maximum Temperature:
232
NSF Certified:
No
Pressure - High:
290
Pressure Class:
290#
Recommended Valve Application:
Gas, Steam
UL Listed:
No
Valve Body Material:
Carbon Steel
Valve Body Style:
2 piece
Valve Operator:
Bare Stem
Valve Size:
4 in
Valve Type:
Ball Valve
Weight:
57 lb
