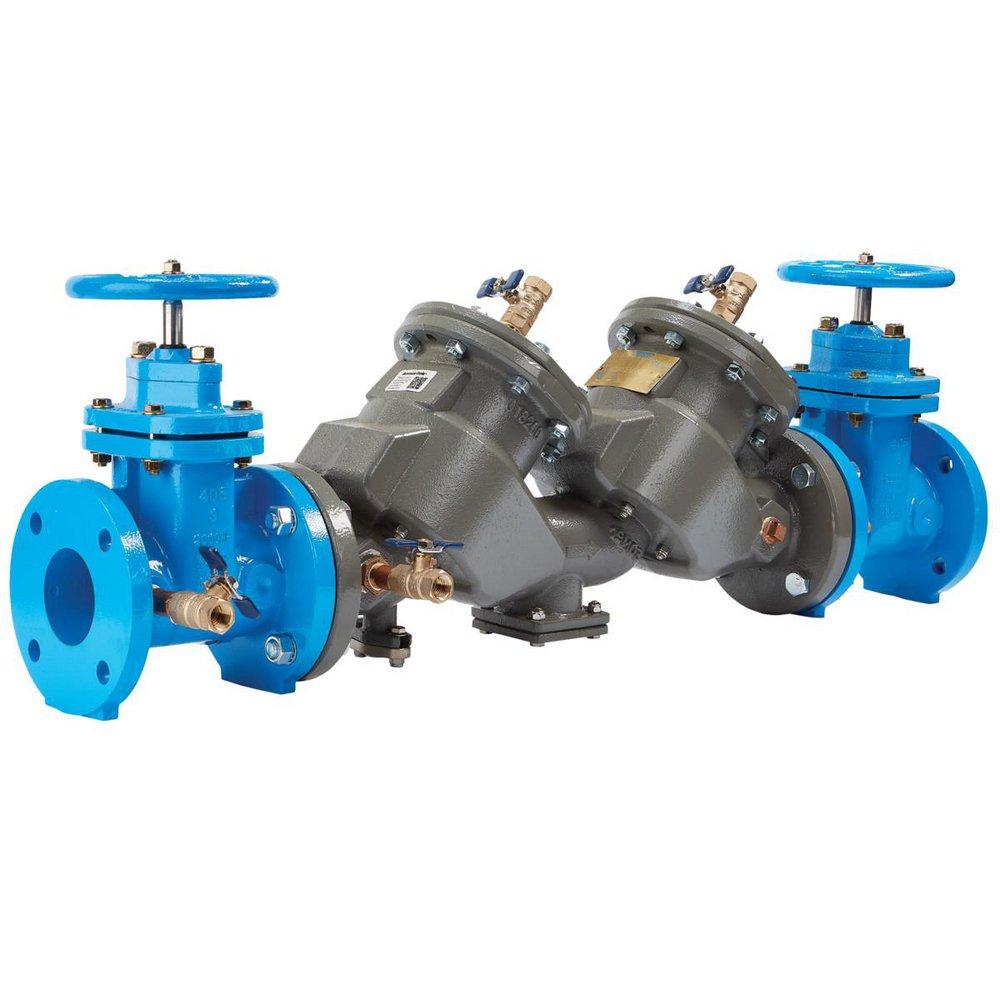

2-1/2 in. Flanged Double Check Valve Assembly
FEBCO
LF850 2-1/2 in. Flanged Double Check Valve Assembly
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
FEBCO
LF850
2-1/2 in. Flanged Double Check Valve Assembly
0124527
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Ductile iron body epoxy coated using ArmorTek corrosion resistant technology
- Stainless Steel check modules with replaceable seats and disc rubbers
- For non-health hazard applications
- Lead free construction
-
Lead Law Compliant
Specifications
- ANSI:
- ANSI B16.1 Class 125, ANSI C501
- ASSE Standards:
- ASSE 1015
- ASTM:
- ASTM D-2000
- AWWA:
- AWWA C-550 1990, AWWA C-606, AWWA C-510, AWWA C-509
- CSA Certified:
- CSA B64.5
- Coating:
- Epoxy
- Collection:
- LF850
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- FM Approved:
- Yes
- Height:
- 29-3/4 in
- IAPMO Listed:
- No
- ISO:
- ISO 9001:2000
- Lead Law Compliance Level:
- Lead Law Compliant and Certified
- Lead Law Compliant:
- Yes
- Material:
- Ductile Iron
- Maximum Temperature:
- 140
- Minimum Temperature:
- 33
- NSF Certified:
- No
- Pressure - Maximum:
- 175 psi
- Temperature Range:
- 32 to 140 Deg F
- UL Listed:
- Yes
- UPC:
- 098268836868
- Valve Body Material:
- Ductile Iron
- Valve Body Style:
- Inline
- Valve Disc Material:
- Silicone
- Valve Operator:
- Hand Wheel
- Valve Seat Material:
- Stainless Steel
- Valve Size:
- 2-1/2 in
- Valve Type:
- Double Check Valve Assembly
- Weight:
- 260 lb
- Width:
- 45 in
