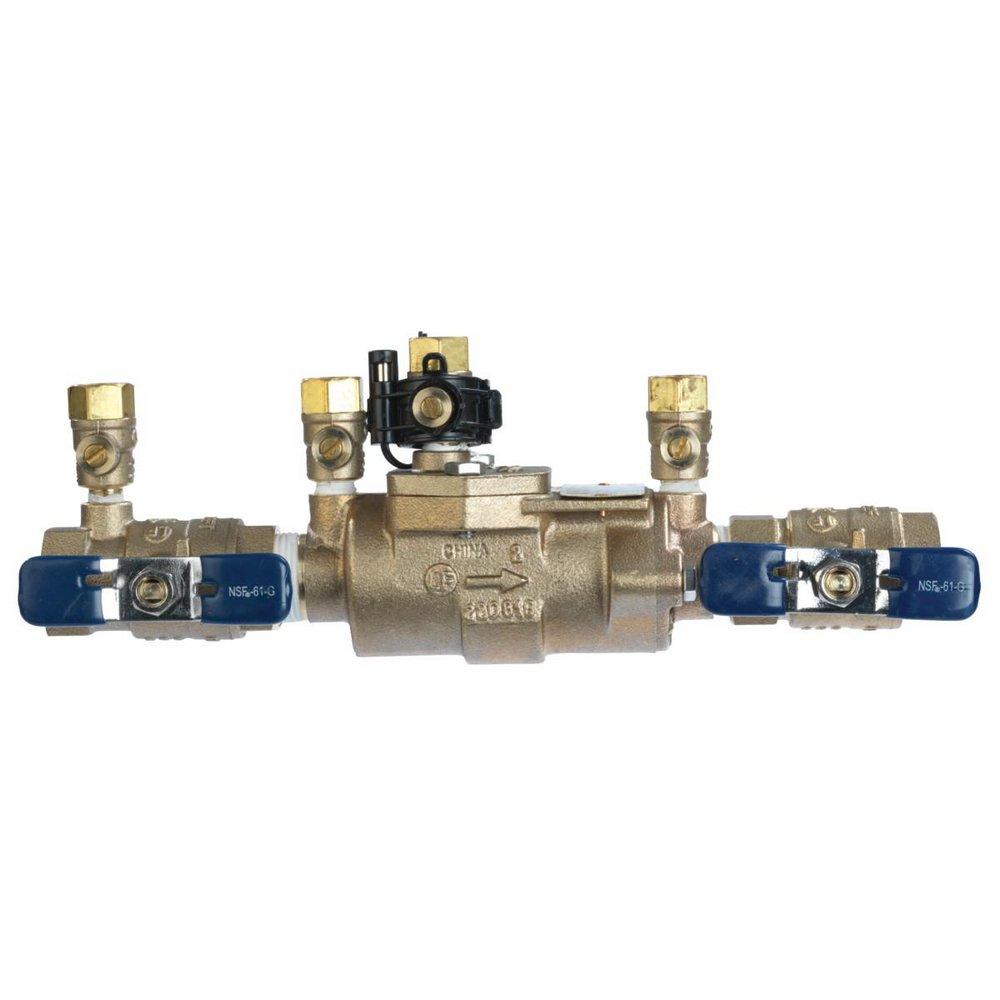

1 in Copper Silicon Alloy FPT Double Check Detector Assembly with Quarter-Turn Ball Valves, Freeze Sensor and Test Cocks
FEBCO
LF850 Small Series 1 in Copper Silicon Alloy FPT Double Check Detector Assembly with Quarter-Turn Ball Valves, Freeze Sensor and Test Cocks
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
FEBCO
LF850 Small Series
1 in Copper Silicon Alloy FPT Double Check Detector Assembly with Quarter-Turn Ball Valves, Freeze Sensor and Test Cocks
T683040
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Constructed with lead free cast copper silicon alloy
- Standard assembly with ball valves
- Optional union ball valves
- Top-mounted test cocks
- Replaceable seats and seat discs
- Two in-line independent positive seating check modules
- Compact modular design facilitates maintenance with a single access cover for in-line repairs
- End connections NPT ANSI/ASME B1.20.1
- Tee handles, sizes 1/2" to 1"; lever handles, sizes 1-1/4" to 2"
- Sensor included to indicate temperature at freeze threshold when activated with add-on connection kit, compatible with building and irrigation management systems
-
Lead Law Compliant
Specifications
- ANSI:
- ANSI 61 Annex G
- ASSE Standards:
- ASSE 1015
- AWWA:
- AWWA C-510 1992
- CSA Certified:
- CSA B64.5
- Collection:
- LF850 Small Series
- End Connection 1:
- FPT
- End Connection 2:
- FPT
- End Connections:
- FPT
- Included:
- Quarter-Turn Ball Valve(s), Freeze Sensor, Test Cock(s)
- Lead Law Compliance Level:
- Lead Law Compliant and Certified
- Lead Law Compliant:
- Yes
- Material:
- Lead Free Copper Silicon Alloy
- Material Type:
- Silicone
- NSF:
- NSF 61 Annex G
- NSF Certified:
- Yes
- Pressure - High:
- 175
- Pressure - Maximum:
- 350 psi
- Proposition 65:
- CALIFORNIA PROP 65 WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Recommended Valve Application:
- Water
- Temperature Range:
- 32 to 140 Deg F (0 to 60 Deg C)
- UL Listed:
- No
- UPC:
- 643925585483
- Valve Body Material:
- Copper Silicon Alloy
- Valve Body Style:
- Inline
- Valve Disc Material:
- Silicone
- Valve Seat Material:
- Plastic
- Valve Size:
- 1 in
- Valve Type:
- Double Check Detector Assembly
- Weight:
- 6.8 lb
