2 Ton - Piston - Uncased Horizontal Recessed Ceiling Fan Coil - 5kW Heat
First Co

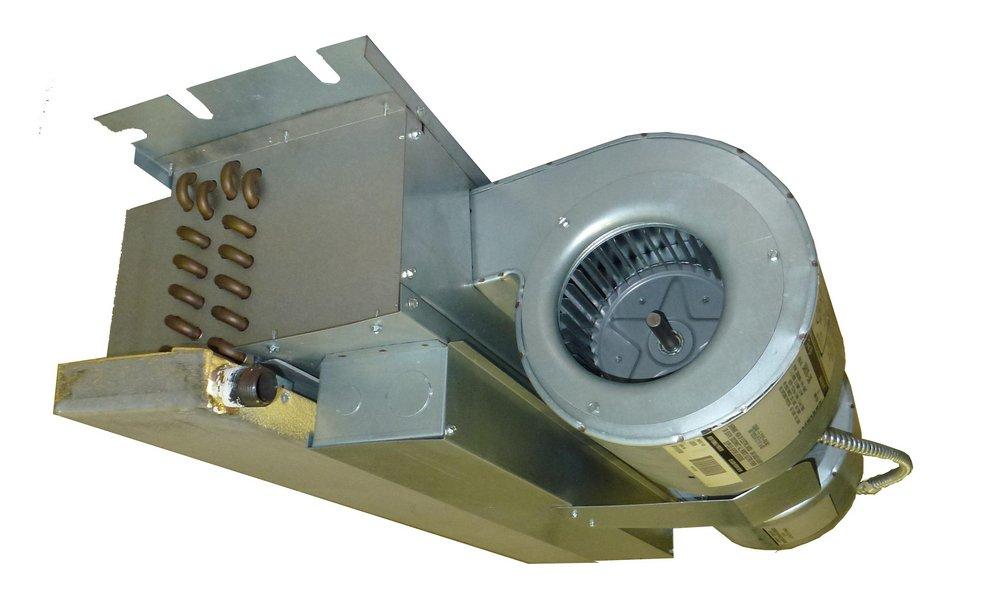

HX Series 2 Ton - Piston - Uncased Horizontal Recessed Ceiling Fan Coil - 5kW Heat
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
First Co
HX Series
2 Ton - Piston - Uncased Horizontal Recessed Ceiling Fan Coil - 5kW Heat
25HX5
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Primary and secondary drains
- Easy service access
- Copper tube coils
- Sloped and insulated drain pan
- Relay is 240 V
- Transformer is 24 V
- Factory installed electric heat except 0 kW
Documents
Specifications
- A2L Compatible:
- No
- AMP:
- 22.8
- BTU:
- 24000
- BTU Cooling Rating:
- 24000 Btu/h
- BTU Heat Rating:
- 17000 Btu/h
- CFM:
- 800 ft3/min
- Casing:
- Uncased
- Coating:
- Galvanized Steel
- Collection:
- HX Series
- Configuration:
- Horizontal
- Depth:
- 21 in
- ETL Listed:
- Yes
- Height:
- 10 in
- Liquid Line (OD):
- 3/8 in
- MBH:
- 24
- Material:
- Aluminum, Copper
- Power Source:
- Electric
- Refrigerant:
- R-410A
- Refrigerant Control:
- TXV
- Suction Line (OD):
- 7/8 in
- Tonnage:
- 2 Ton
- UL Listed:
- No
- Watts:
- 5 kW
- Width:
- 43-1/4 in
