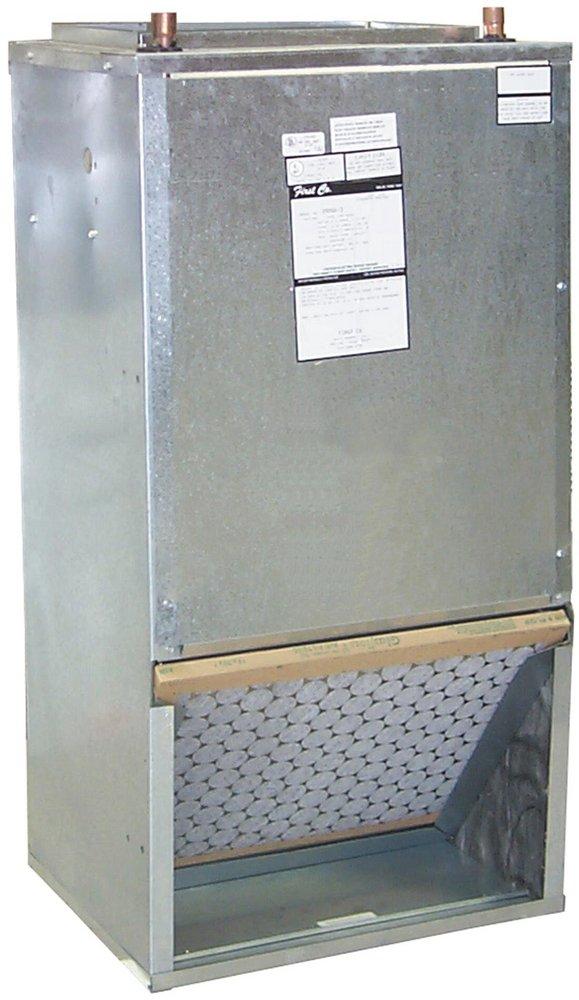

1.5 - 2 Ton - Wall-Mount Air Handler - R-410A - 120V
First Co
RAQ Series 1.5 - 2 Ton - Wall-Mount Air Handler - R-410A - 120V
Points
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
First Co
RAQ Series
1.5 - 2 Ton - Wall-Mount Air Handler - R-410A - 120V
24RAQ-3
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- DX cooling/hot water heating
- Built-in circulating pump, air purge valve and anti-thermosiphon check valve
- Piston-type metering device on cooling coil
- Flue gas door switch - this will not allow the blower motor to operate without the service door in place, therefore products of combustion from the water heater flue cannot be delivered through the duct system and into the living space
- Copper tube, aluminum fin heating and cooling coils
- Compatible with all properly sized gas or oil fired water heaters
- Compatible with most major brands of split condensing units
- Factory installed filter
- Attractive "Picture Frame" type access panel with baked-on white finish
Dimensions & Measurements
CFM
890 ft3/min
Depth
16-1/8 in
Height
39-1/4 in
Liquid Line (OD)
3/8 in
Max CFM
890 cfm
Suction Line (OD)
5/8 in
Tonnage
1.5 - 2 Ton
Width
20-1/8 in
Characteristics & Features
A2L Compatible
No
Blower Type
PSC
Coil Type
Aluminum Fin
Collection
RAQ Series
Configuration
Vertical
Refrigerant
R-410A
Electrical & Operational Information
AMP
9
BTU
24000
BTU Cooling Rating
24000 Btu/h
BTU Heat Rating
29000 Btu/h
Horsepower
1/3 hp
MBH
24
Phase
Single Phase
Power Source
Electric
Volts
120V
Warranty & Product Information
Energy Star Compliant
No
UL Listed
Yes
