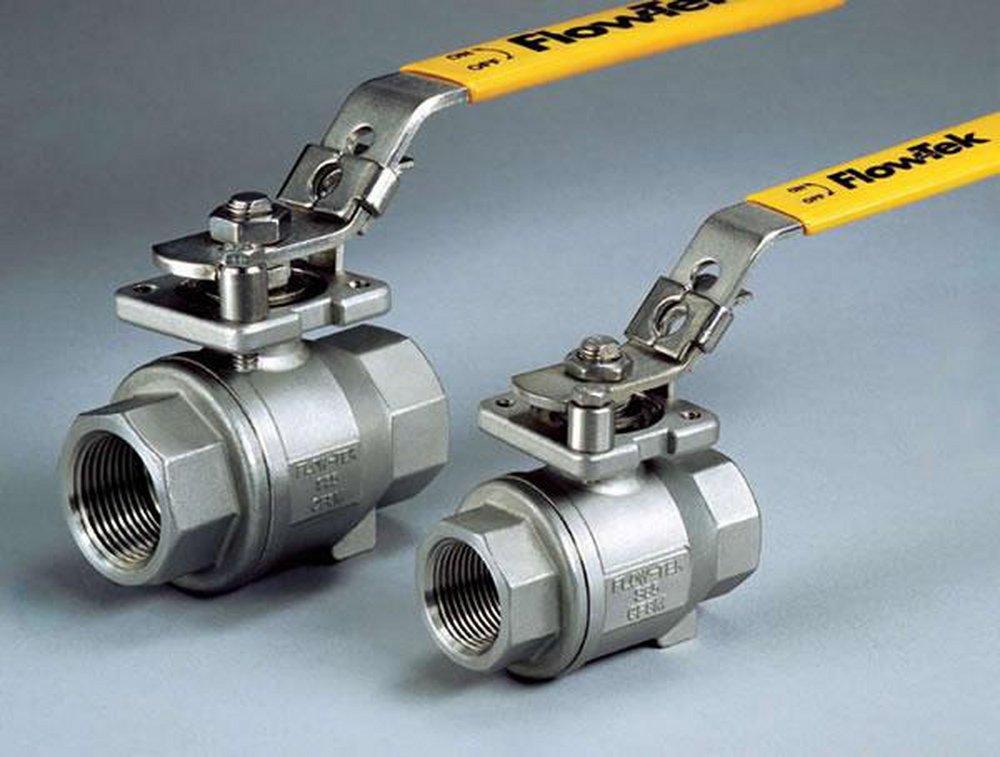

1-1/2 in. Stainless Steel Full Port NPT 1000# Ball Valve

Flow-Tek

S85 Series 1-1/2 in. Stainless Steel Full Port NPT 1000# Ball Valve

  • Fast #
  • Part #FS85073RRL
  • Item #3966237
  • Manufacturer Part #S85-07-3-R-R-L
3.3 out of 5 Customer Rating
Brand image
Flow-Tek Stainless Steel Full Port NPT 1000# Ball Valve
Flow-Tek Stainless Steel Full Port NPT 1000# Ball Valve
Flow-Tek

S85 Series 1-1/2 in. Stainless Steel Full Port NPT 1000# Ball Valve

  • Fast #
  • Part #FS85073RRL
  • Item #3966237
  • Manufacturer Part #S85-07-3-R-R-L
3.3 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • S85 ball valves have been designed for ease of automation
  • These valves are live-loaded, self-adjusting stem seals that automatically adjust packing to compensate for changes in wear and temperature
  • Right bowl: 7 1/2"x15 3/4"x5 1/8"
  • Pacemaker® bright Satin finish
  • Underside of sink is fully protected by heavy duty Sound Guard™ undercoating
  • Drain opening: 3 1/2"
  • Bowls are recessed 3/16" below outside edge of sink
  • 1 3/4" radius coved corners
  • Disposer bowl: 3" radius coved corners
  • Minimum cabinet size: 36"
  • Requires Certification

Specifications

ANSI:
ANSI 372, ANSI 61
API:
API 598, API 608
ASME:
ASME B1.20.1, ASME B16.34
ASTM:
ASTM A-351 Grade CF8M, ASTM A-479 Type 316
Clean Bagged:
No
Collection:
S85 Series
End Connection 1:
NPT
End Connection 2:
NPT
End Connections:
NPT
FM Approved:
No
Handle Material:
304 Stainless Steel
IAPMO Listed:
No
ISO:
ISO 5211
Length:
4-33/100 in
MSS:
MSS SP-110, MSS SP-55, MSS SP-61, MSS SP-72
Material:
Stainless Steel
Maximum Temperature:
450
Minimum Temperature:
-50
NSF:
NSF 372, NSF 61
NSF Certified:
Yes
Pressure - Maximum:
150 psi
Pressure Class:
1000#
Recommended Valve Application:
Air, Gas, Oil, Steam, Water
UL Listed:
No
Valve Body Style:
2 piece
Valve Operator:
Latch Locking Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
RPTFE
Valve Size:
1-1/2 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
Weight:
4.85 lb
