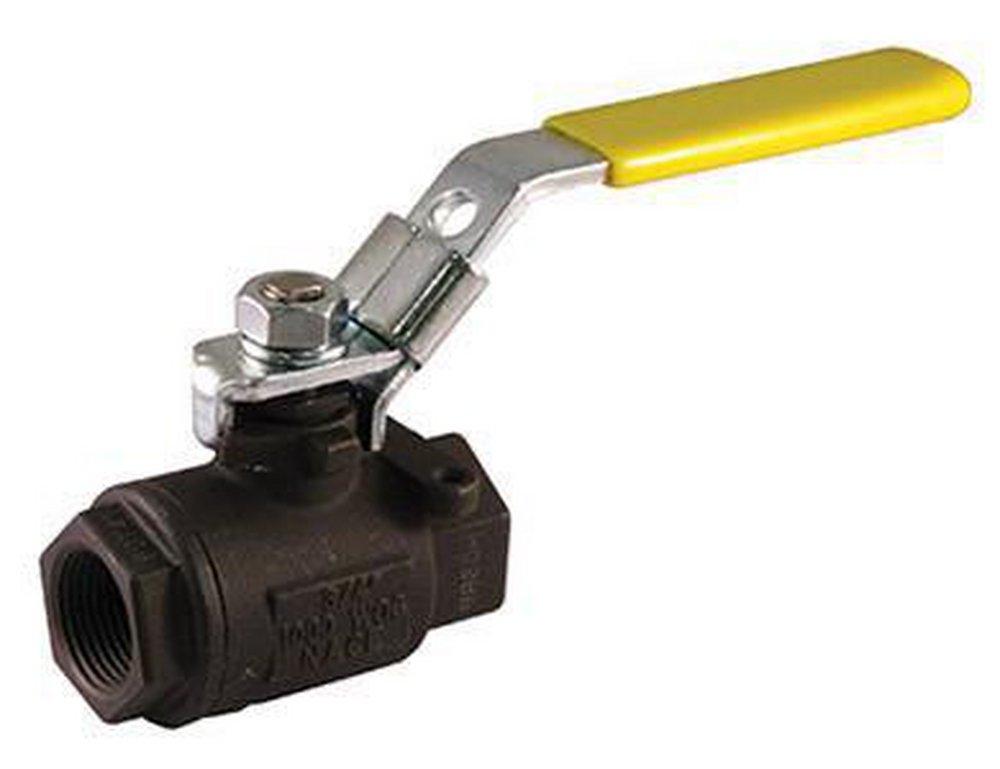

3/4 in. Carbon Steel Full Port Threaded 1000# Ball Valve
Flow-Tek
Series 8000 3/4 in. Carbon Steel Full Port Threaded 1000# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
Pick Up Not AvailableNot available in FL
-
Shipping Not AvailableNot available at this timeShipping Not AvailableNot available in FL
Purchase history
Flow-Tek
Series 8000
3/4 in. Carbon Steel Full Port Threaded 1000# Ball Valve
8104-3-R-R-L
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
Specifications
- ANSI:
- ANSI 61, ANSI 372
- API:
- API 598
- ASME:
- ASME B16.10, ASME B1.20.1
- ASTM:
- ASTM A-351 Grade CF8M, ASTM A-216 Grade WCB, ASTM A-479 Type 316
- Collection:
- Series 8000
- End Connection 1:
- NPT
- End Connection 2:
- NPT
- End Connections:
- NPT
- Handle Material:
- Stainless Steel
- Height:
- 2-91/100
- ISO:
- ISO 5211
- Length:
- 3-7/20
- MSS:
- MSS SP-72, MSS SP-110
- Material:
- Carbon Steel
- Maximum Temperature:
- 550
- Minimum Temperature:
- -50
- NSF:
- NSF 61, NSF 372
- NSF Certified:
- Yes
- Pressure - High:
- 1000
- Pressure Class:
- 1000#
- Recommended Valve Application:
- Water, Oil, Gas
- Temperature Range:
- -50 to 550 Deg F (-46 to 287 Deg C)
- Valve Body Style:
- 3 piece
- Valve Disc Material:
- Stainless Steel
- Valve Operator:
- Lever Handle
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- 15% Glass Filled RPTFE
- Valve Size:
- 3/4 in
- Valve Stem:
- Blowout-proof
- Valve Type:
- Ball Valve
