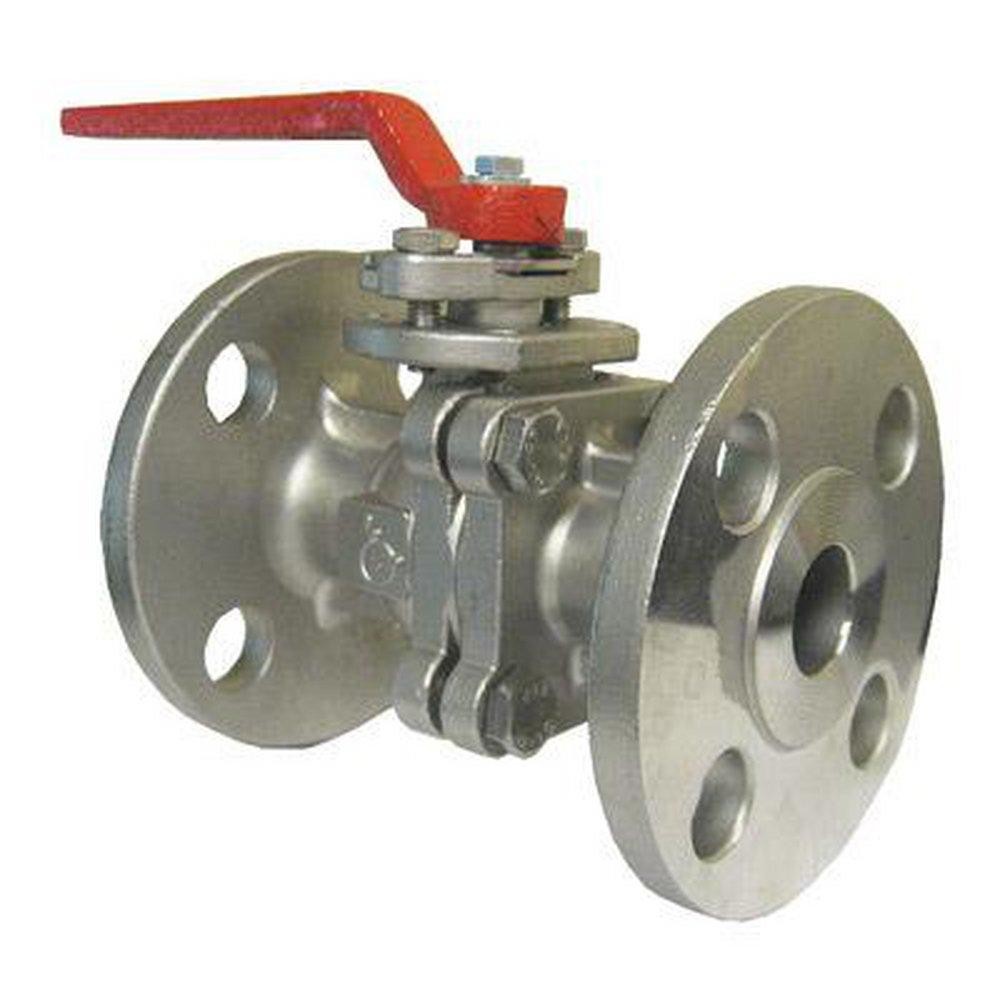

10 in. Stainless Steel Full Port Flanged 150# Ball Valve
Flow-Tek
Series F15 10 in. Stainless Steel Full Port Flanged 150# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Flow-Tek
Series F15
10 in. Stainless Steel Full Port Flanged 150# Ball Valve
F153R153KRL
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Series F15/F30 Flanged ball valves are used in virtually every industry across the globe
- Series F15/F30 flanged ball valves are engineered to ensure bubble-tight shutoff and low operating torque
- The packing gland is contoured to uniformly distribute the load across the packing
- Larger sized valves feature a trunnion-type ball support to reduce operating torque
- Series F15/F30 Flanged ball valves are available in a variety of optional trims and configurations
- Series F15/F30 valves are available as non-fire safe with standard stem seals or fire safe to API 607 with graphite stem seals
- Series RF15/RF30 valves offer ease of automation due to an integrally cast actuator mounting pad that complies with ISO 5211 through 2” valve sizes
Specifications
- ANSI:
- ANSI 61, ANSI 372
- API:
- API 607, API 608, API 598
- ASME:
- ASME B16.10, ASME B16.34
- ASTM:
- ASTM A-351 Grade CF8M, ASTM A-479 Type 316, ASTM A-167 Type 304, ASTM A-194, ASTM A-193
- Collection:
- Series F15
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- Handle Length (in):
- 38-49/50 in
- Handle Material:
- Ductile Iron
- Handle Type:
- Locking Lever
- Height:
- 14-4/5 in
- ISO:
- ISO 5211
- Length:
- 21 in
- MSS:
- MSS SP-110, MSS SP-72
- Material:
- Stainless Steel
- Maximum Temperature:
- 650
- Minimum Temperature:
- -50
- NSF:
- NSF 61, NSF 372
- NSF Certified:
- Yes
- Pressure - High:
- 150
- Pressure Class:
- 150#
- Recommended Valve Application:
- Oil, Gas, Fuel, Water
- Temperature Range:
- -50 to 650 Deg F (-46 to 343 Deg C)
- Valve Body Style:
- 2 piece
- Valve Disc Material:
- Stainless Steel
- Valve Operator:
- Locking Lever Handle
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- Tek-Fil
- Valve Size:
- 10 in
- Valve Stem:
- Blowout-proof
- Valve Type:
- Ball Valve
- Weight:
- 500 lb
