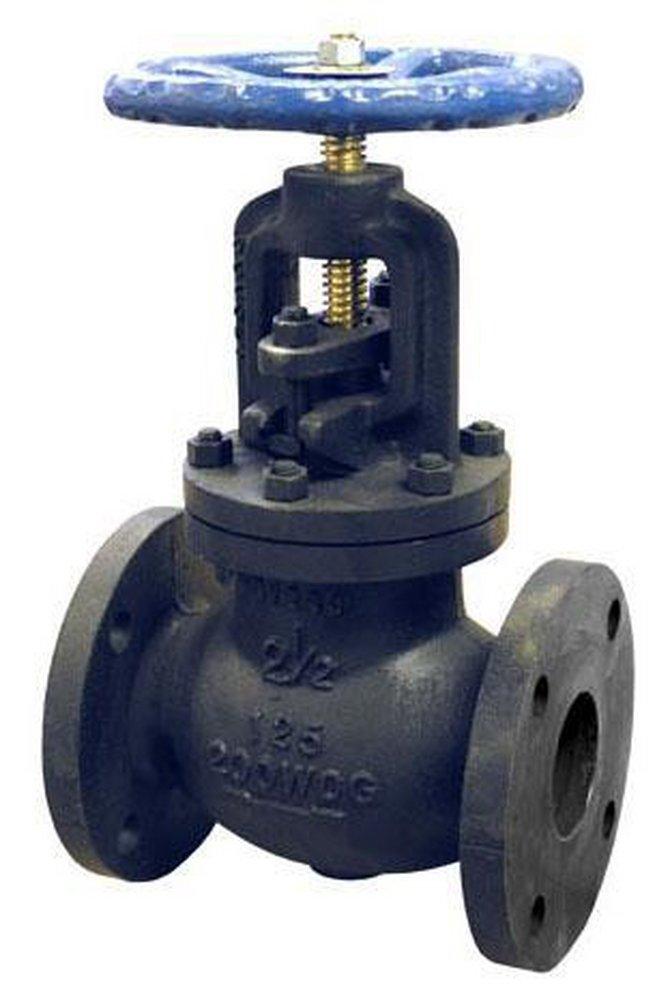

10 in. Cast Iron Flanged Rising Valve Stem Globe Valve
This product has been replaced by
FNW® 10 in. Cast Iron Flanged Globe Valve
Manufacturer Part #FNW661B10
Manufacturer Part #FNW661B10
FNW®
10 in. Cast Iron Flanged Rising Valve Stem Globe Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 4
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
Pick Up Not AvailableNot available in TX
-
Shipping Not AvailableNot available at this timeShipping Not AvailableNot available in TX
Purchase history
FNW®
10 in. Cast Iron Flanged Rising Valve Stem Globe Valve
FNW66110
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Flat faced flanges
- Back seat stop
Specifications
- ANSI:
- ANSI B16.1, ANSI 14-2016
- ASTM:
- ASTM A-126
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- Handle Material:
- Cast Iron
- IAPMO Listed:
- Yes
- Length:
- 24-1/2
- MSS:
- MSS SP-25
- Material:
- Cast Iron
- Maximum Temperature:
- 150
- NSF:
- NSF 14-2016
- NSF Certified:
- Yes
- Pressure - High:
- 200
- Pressure Class:
- 125#
- UPC:
- 781889159262
- Valve Body Material:
- Cast Iron
- Valve Bonnet Type:
- Bolted
- Valve Disc Material:
- Cast Iron
- Valve Operator:
- Wheel Handle
- Valve Size:
- 10 in
- Valve Stem:
- Rising
- Valve Type:
- Globe Valve
