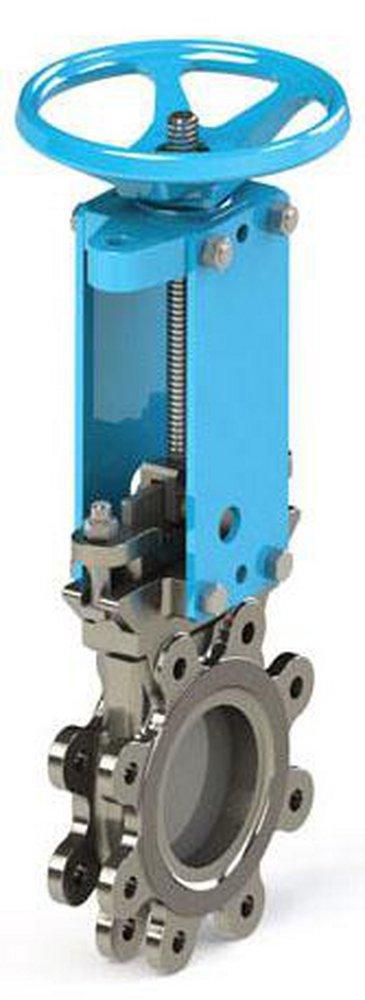

12 in. Stainless Steel Lined Metal Seated Unidirectional Lug Knife Gate Valve
FNW®
6701 Series 12 in. Stainless Steel Lined Metal Seated Unidirectional Lug Knife Gate Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Pallet: 6
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
FNW®
6701 Series
12 in. Stainless Steel Lined Metal Seated Unidirectional Lug Knife Gate Valve
6701S12
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Unidirectional shutoff
- Hand wheel is heavy cast iron, with a rounded grip and epoxy coated hand wheel
- Double set screws prevent threaded-on hand wheel from backing off or coming loose
- Aluminum-Bronze thrust components for anti-galling operation
- Grease fitting for maintaining smooth drive sleeve operation
- Carbon steel plate yoke arms provide economy without sacrificing strength and are epoxy coated
- All nuts and bolts are carbon steel grade B7 or 2H
- Stem-to-gate clevis is deliberately loose to allow play in gate to minimize binding
- Horizontal clevis bolts provide flexibility of the gate during travel
- Bonnetless, outside screw and yoke
Specifications
- ANSI:
- ANSI B16.5
- ASME:
- ASME B16.34
- ASTM:
- ASTM A-351
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- Length:
- 3 in
- MSS:
- MSS SP-81
- Material:
- Stainless Steel
- Material Type:
- 316L
- Maximum Temperature:
- 446
- Recommended Valve Application:
- Chemical, Petroleum
- UPC:
- 781889249734
- Valve Body Material:
- Stainless Steel
- Valve Body Style:
- 1 piece
- Valve Disc Material:
- Stainless Steel
- Valve Operator:
- Wheel Handle
- Valve Seat Material:
- Stainless Steel
- Valve Size:
- 12 in
- Valve Stem:
- Rising
- Valve Type:
- Knife Gate Valve
