2 in. Cast Iron EPDM Lever Operated Wafer Butterfly Valve

FNW®

731 Series 2 in. Cast Iron EPDM Lever Operated Wafer Butterfly Valve

  • Fast #
  • Part #FNW731EK
  • Item #1846701
  • Manufacturer Part #731E
3.4 out of 5 Customer Rating
Brand image

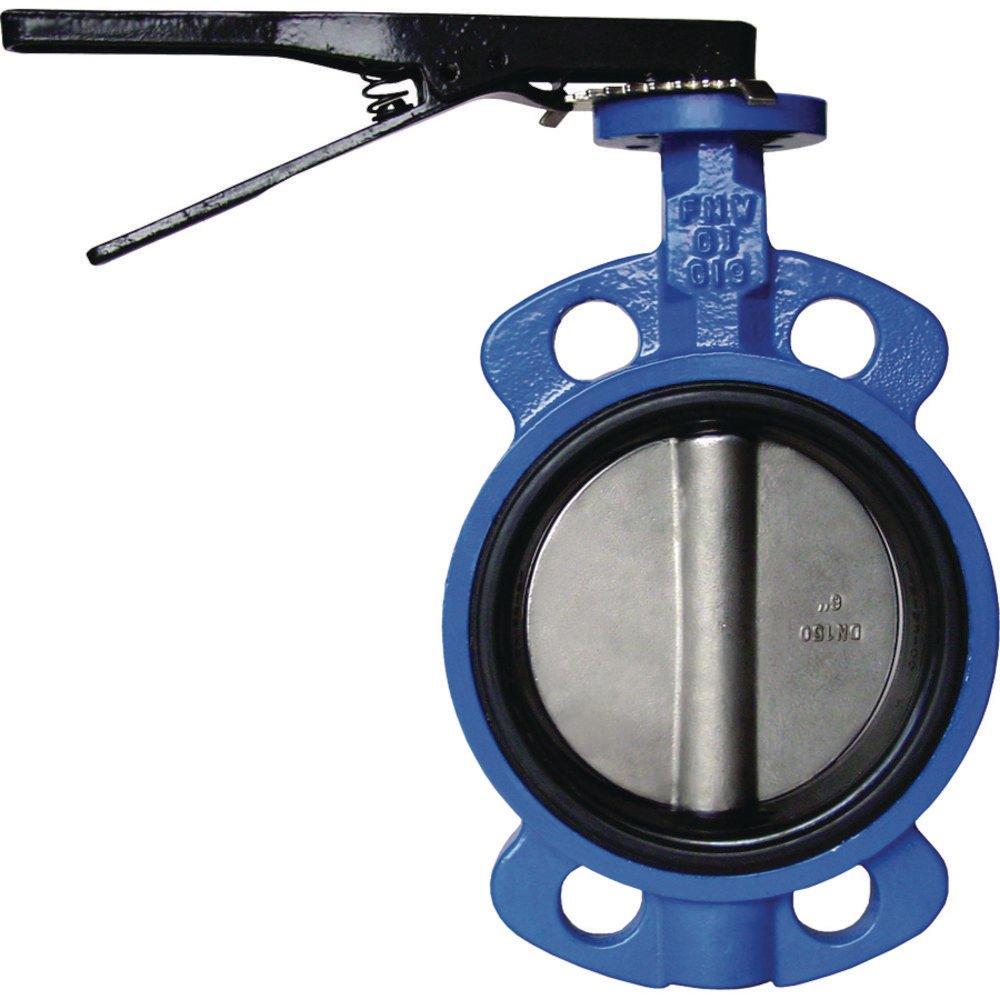

FNW® Cast Iron EPDM Locking Lever Handle Butterfly Valve
FNW® Cast Iron EPDM Locking Lever Handle Butterfly Valve
FNW®

731 Series 2 in. Cast Iron EPDM Lever Operated Wafer Butterfly Valve

  • Fast #
  • Part #FNW731EK
  • Item #1846701
  • Manufacturer Part #731E
3.4 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 1 Pallet: 150
Quantity:
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Description
  • Resilient seated butterfly valve
  • Designed for 125/150 lbs flanges
  • Standard 316ss disc and stem offers superior strength and chemical resistance
  • Ribbed 1-piece body for high strength and minimum weight
  • Secured stem retainer plate for blowout-proof protection and also allows operator removal with valve in line
  • High strength two-piece stem eliminates taper pins and disc screws from flow path
  • Cartridge style seat permits easy change without special tools
  • Dual PTFE shaft bearings for reduced torque and improved stem alignment
  • Low maintenance design
  • Lead-Free
Product Information
  • Requires Certification

  • Lead Law Compliant

Dimensions & Measurements
End Connection 1
Flanged
End Connection 2
Flanged
End Connections
Flanged x Flanged
Height
9-9/17 in
Length
1-20/29 in
Pressure Class
255#
Pressure - Maximum
255 psi
Valve Size
2 in
Characteristics & Features
Coating
Epoxy
Collection
731 Series
Material
Cast Iron
Valve Body Material
Cast Iron
Valve Body Style
Wafer
Valve Disc Material
Stainless Steel
Valve Operator
Lever Handle
Valve Seat Material
EPDM
Valve Stem
Blowout-Proof
Valve Type
Butterfly Valve
Electrical & Operational Information
Maximum Temperature
230
Minimum Temperature
-22
Warranty & Product Information
ANSI
ANSI B16.1, ANSI 61, ANSI 372
API
API 609A
ASTM
ASTM A126
CSA Certified
CSA 61
FM Approved
No
ISO
ISO 5211
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
MSS
MSS SP-61, MSS SP-67
NSF
NSF 61-G, NSF 372, NSF 61
NSF Certified
Yes
Recommended Valve Application
Water
UL Listed
No
UPC
781889181010
