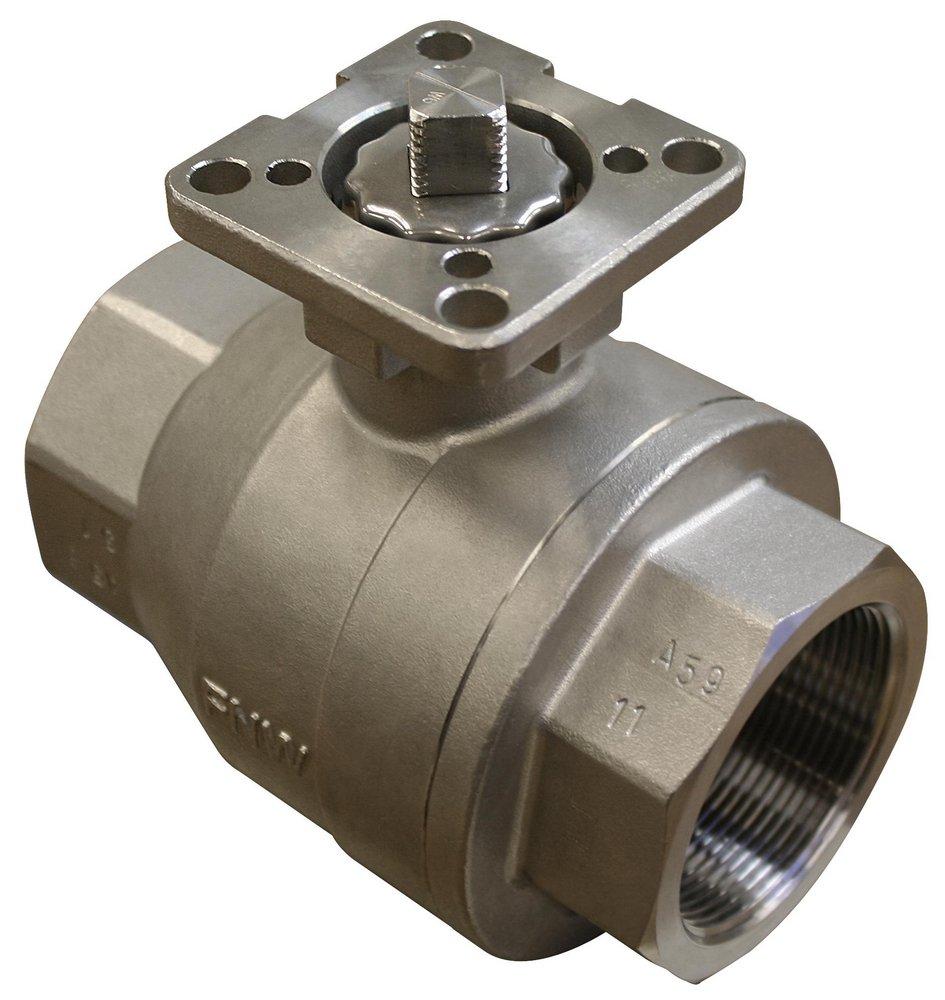

1-1/2 in. Stainless Steel Full Port FPT 1500# Ball Valve
FNW®
Figure 220AM 1-1/2 in. Stainless Steel Full Port FPT 1500# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 8 Pallet: 320Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
FNW®
Figure 220AM
1-1/2 in. Stainless Steel Full Port FPT 1500# Ball Valve
FNW220AMJ
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- 1-1/2 in. stainless steel ball valve
- End Connections: Threaded
- Valve Length: 4.72 in.
- Valve Pressure Class: 2000#
- Recommended Application: Steam, water
- Saturated steam 150 psi
- Live loaded packing
- Investment cast body and end cap
- Vacuum rated to 26.967 in hg
- Vented ball
Dimensions & Measurements
End Connection 1
FPT
End Connection 2
FPT
End Connections
FPT
Length
4-18/25 in
Pressure Class
1500#
Pressure - Maximum
1500 psi
Valve Size
1-1/2 in
Characteristics & Features
Clean Bagged
No
Collection
Figure 220AM
Material
Stainless Steel
Material Type
CF8M
Proposition 65
WARNING: Cancer and Reproductive Harm WWW.p65warnings.ca.gov
Valve Body Material
Stainless Steel
Valve Body Style
2 piece
Valve Port Opening
Full Port
Valve Seat Material
PTFE
Valve Stem
Blowout-Proof
Valve Type
Ball Valve
Electrical & Operational Information
Pressure - High
1500
Warranty & Product Information
ANSI
ANSI Z1157-2014e1
ASME
ASME B1.20.1, ASME B16.34
ASTM
ASTM A-351
FM Approved
No
IAPMO Listed
Yes
ISO
ISO 5211
MSS
MSS SP-110
NSF Certified
No
Recommended Valve Application
Steam, Potable Water
UL Listed
No
UPC
781889219553
