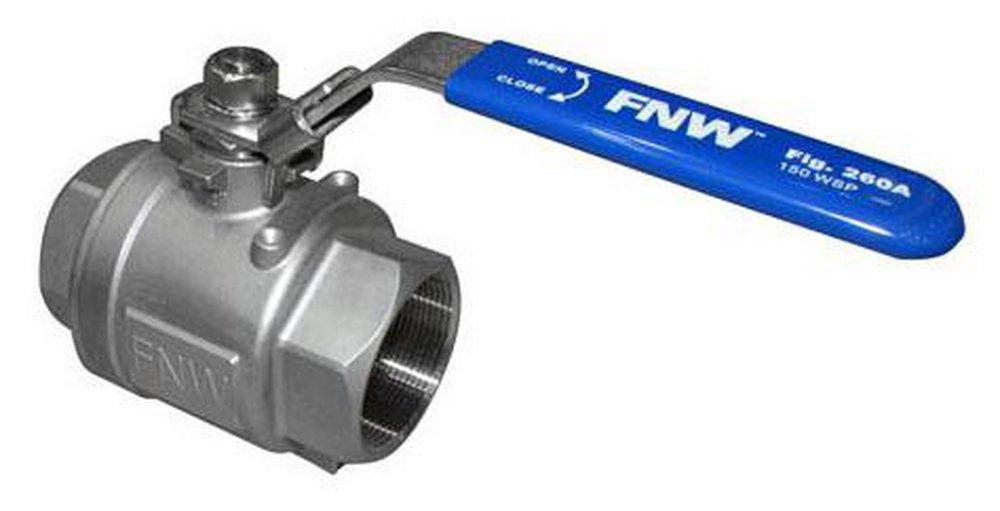

3/8 in. Stainless Steel Full Port FPT 1000# Ball Valve
FNW®
Figure 260A 3/8 in. Stainless Steel Full Port FPT 1000# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 90 Pallet: 3240Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
FNW®
Figure 260A
3/8 in. Stainless Steel Full Port FPT 1000# Ball Valve
FNW260AC
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- 3/8 in. stainless steel ball valve
- End Connections: Threaded
- Valve Length: 2 in.
- Valve Pressure Class: 1000#
- Recommended Application: Water, oil, gas
- Saturated steam 150 psi
- Investment cast body
- Manufactured silicone-free
Dimensions & Measurements
End Connection 1
FPT
End Connection 2
FPT
End Connections
FPT
Length
2 in
Pressure Class
1000#
Pressure - Maximum
1000 psi
Valve Size
3/8 in
Characteristics & Features
Clean Bagged
No
Collection
Figure 260A
Handle Material
Stainless Steel
Material
Stainless Steel
Material Type
316L
Valve Body Material
Stainless Steel
Valve Body Style
2 piece
Valve Operator
Locking Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
RTFE
Valve Stem
Blowout-proof
Valve Type
Ball Valve
Electrical & Operational Information
Maximum Temperature
392
Minimum Temperature
-4
Pressure - High
1000
Temperature Range
-4 to 392 Deg F
Warranty & Product Information
ANSI
ANSI Z1157-2014e1
ASME
ASME B1.20.1, ASME B16.34
IAPMO Listed
Yes
MSS
MSS SP-110
Recommended Valve Application
Gas, Oil, Steam, Potable Water
UPC
781889283738
