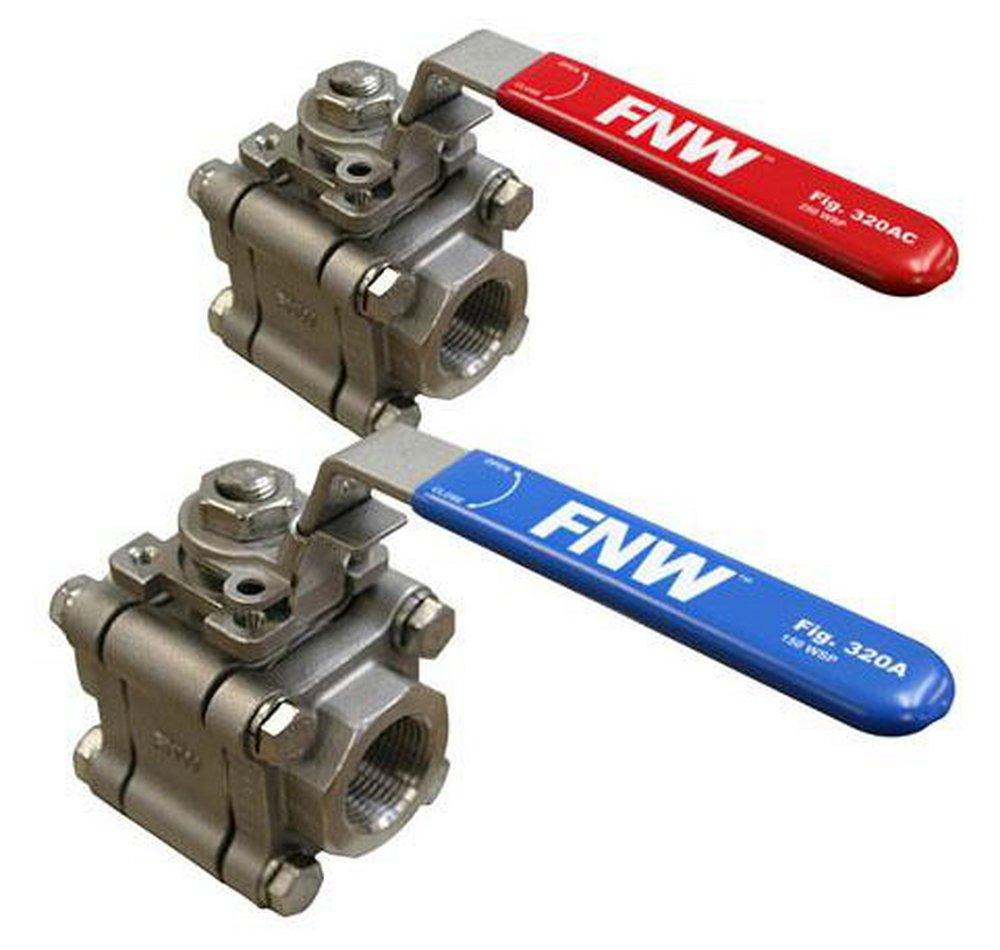

1-1/2 in. Stainless Steel Full Port Socket Weld 1500# Ball Valve
FNW®
Figure 320AC 1-1/2 in. Stainless Steel Full Port Socket Weld 1500# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 4 Pallet: 160Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
FNW®
Figure 320AC
1-1/2 in. Stainless Steel Full Port Socket Weld 1500# Ball Valve
FNW320ACSWJ
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- 1-1/2 in. stainless steel ball valve
- End Connections: Socket Weld
- Valve length: 4.72 in.
- Valve pressure class: 1500#
- Recommended application: Steam, water
- Saturated steam 250 psi
- Live loaded packing
- Investment cast body
- Vented ball
- Manufactured silicone-free
Dimensions & Measurements
End Connection 1
Socket Weld
End Connection 2
Socket Weld
End Connections
Socket Weld
Length
4-18/25 in
Pressure Class
1500#
Pressure - Maximum
1500 psi
Valve Size
1-1/2 in
Weight
9.92 lb
Characteristics & Features
Clean Bagged
No
Collection
Figure 320AC
Handle Material
Stainless Steel
Material
Stainless Steel
Material Type
CF8M
Proposition 65
WARNING: Cancer and Reproductive Harm WWW.p65warnings.ca.gov
Valve Body Material
Stainless Steel
Valve Body Style
3 piece
Valve Operator
Locking Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
PTFE
Valve Stem
Blowout-Proof
Valve Type
Ball Valve
Electrical & Operational Information
Pressure - High
1500
Warranty & Product Information
ANSI
ANSI Z1157-2014e1
ASME
ASME B16.11, ASME B16.34
ASTM
ASTM A-193 B8, ASTM A-194 8, ASTM A-351 Grade CF3M, ASTM A-351 Grade CF8M
cUPC Certified
No
FM Approved
No
IAPMO Listed
Yes
ISO
ISO 15848
MSS
MSS SP-110
NSF Certified
No
Recommended Valve Application
Steam, Potable Water
UL Listed
No
UPC
781889220634
