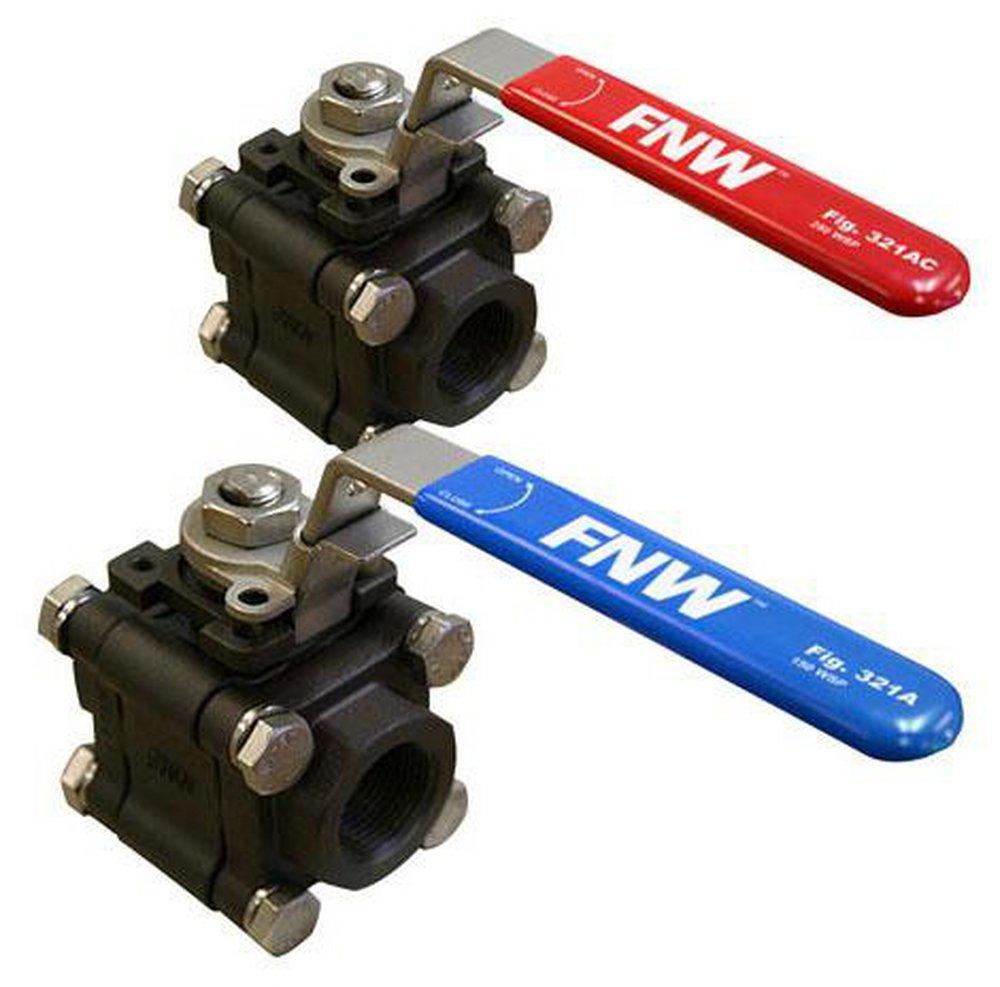

1 in. Carbon Steel Full Port Socket Weld 3-Piece 2000# Ball Valve
FNW®
Figure 321AC 1 in. Carbon Steel Full Port Socket Weld 3-Piece 2000# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 12 Pallet: 480Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
FNW®
Figure 321AC
1 in. Carbon Steel Full Port Socket Weld 3-Piece 2000# Ball Valve
FNW321ACSWG
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- 1 in. carbon steel ball valve
- End Connections: Socket Weld
- Valve Length: 3.54 in.
- Valve Pressure Class: 2000#
- Recommended Application: Steam, water
- Stainless steel vented ball
- Saturated steam 250 psi
- Blow-out proof stem
- Live loaded packing
- Investment cast body
Dimensions & Measurements
End Connection 1
Socket Weld
End Connection 2
Socket Weld
End Connections
Socket Weld
Length
3-27/50 in
Pressure Class
2000#
Pressure - Maximum
2000 psi
Valve Size
1 in
Characteristics & Features
Clean Bagged
No
Collection
Figure 321AC
Handle Material
Stainless Steel
Material
Carbon Steel
Proposition 65
WARNING: Cancer and Reproductive Harm WWW.p65warnings.ca.gov
Valve Body Material
Carbon Steel
Valve Body Style
3 piece
Valve Operator
Locking Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
PTFE
Valve Stem
Blowout-Proof
Valve Type
Ball Valve
Electrical & Operational Information
Pressure - High
2000
Warranty & Product Information
ANSI
ANSI Z1157-2014e1
ASME
ASME B16.11, ASME B16.34
ASTM
ASTM A-216
FM Approved
No
IAPMO Listed
Yes
MSS
MSS SP-110
NSF Certified
No
Recommended Valve Application
Steam, Potable Water
UL Listed
No
UPC
781889220931
