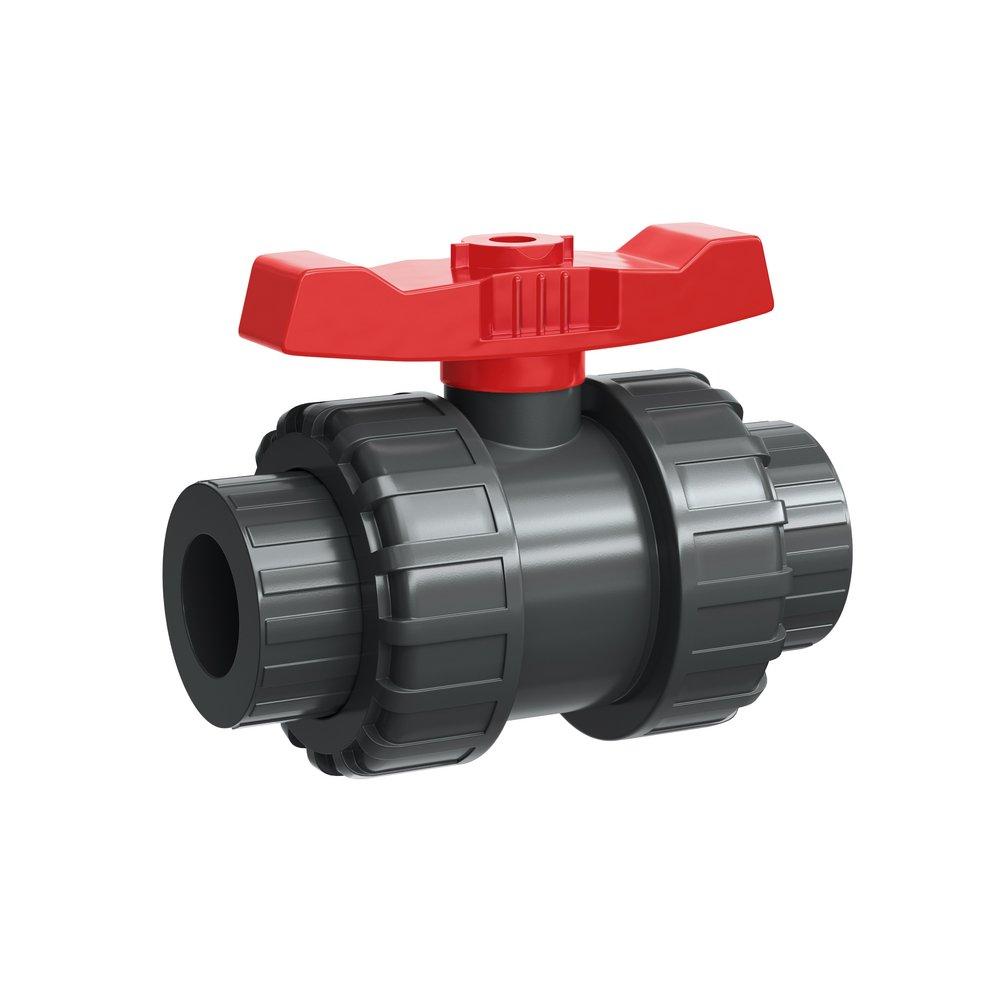

1/2 in. Plastic PVC Full Port NPT x Socket Weld 150# Ball Valve
FNW®
Figure 340NA 1/2 in. Plastic PVC Full Port NPT x Socket Weld 150# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 48Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
FNW®
Figure 340NA
1/2 in. Plastic PVC Full Port NPT x Socket Weld 150# Ball Valve
FNW340NAVD
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- End Connections: Socket Weld
- Optional Threaded Ends come with 1/2" to 2" valves only
- Optional Threaded Ends for 2-1/2" - 4" valves must be ordered seperatley
- Full port design
- O-ring energized seats
- Valve Pressure Class: 150#
- Recommended Application: Water
- ANSI 14, ANSI 372, ANSI 61, ANSI 61 Annex G
- NSF 14, NSF 372, NSF 61, NSF 61 Annex G
Dimensions & Measurements
End Connection 1
NPT
End Connection 2
Socket Weld
End Connections
NPT x Socket Weld
Length
3-19/25 in
Pressure Class
150#
Pressure - Maximum
150 psi
Valve Size
1/2 in
Weight
0.37 lb
Characteristics & Features
Clean Bagged
No
Collection
Figure 340NA
Handle Material
ABS
Material
Plastic
Material Type
PVC
Valve Body Material
PVC
Valve Body Style
1 piece
Valve Bonnet Type
Union
Valve Disc Material
Viton
Valve Operator
T-handle
Valve Port Opening
Full Port
Valve Seat Material
Teflon
Valve Stem
Extension
Valve Type
Ball Valve
Electrical & Operational Information
Maximum Temperature
122
Minimum Temperature
41
Pressure - High
150
Temperature Range
41 to 122 Deg F
Warranty & Product Information
ANSI
ANSI 14, ANSI 372, ANSI 61
ASME
ASME B1.20.1, ASME B16.5 Class 150
ASTM
ASTM D-1784, ASTM D-2467, ASTM F-1498, ASTM F-439
CSA Certified
CSA 61
FM Approved
No
IAPMO Listed
No
MA Approved
Yes
NSF
NSF 14, NSF 372, NSF 61, NSF 61 Annex G
NSF Certified
Yes
Recommended Valve Application
Potable Water
UL Listed
No
UPC
781889370544
