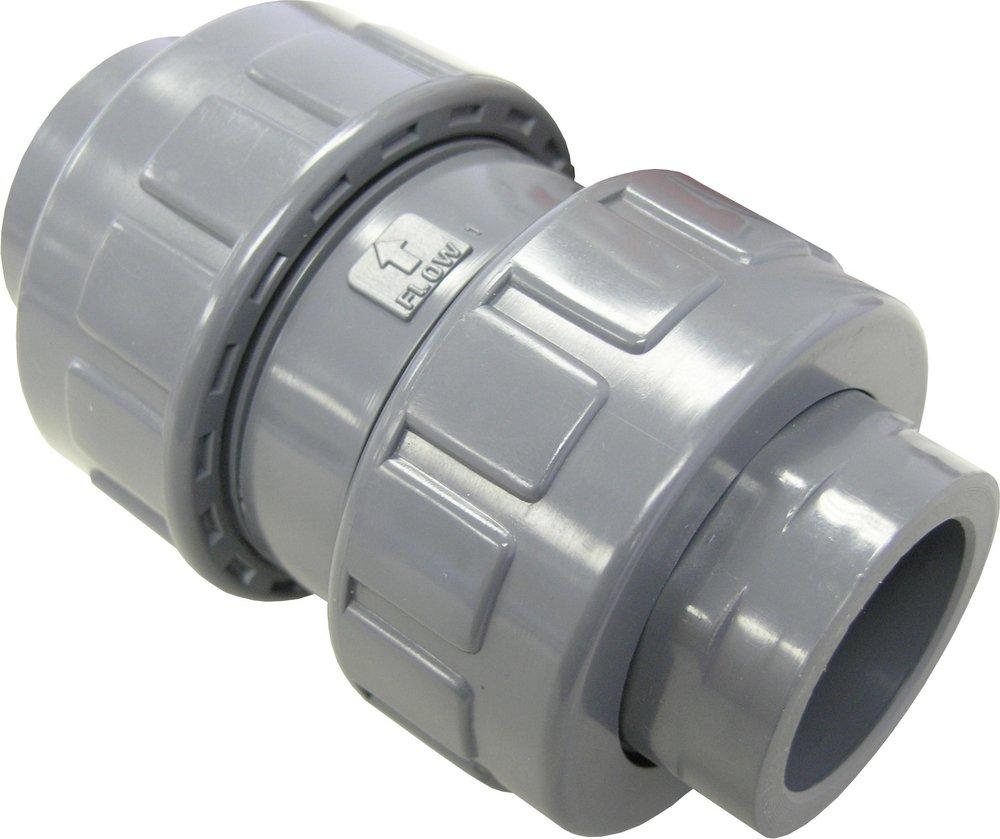

1-1/2 in. CPVC NPT x Socket Weld True Union Ball Check Valve
FNW®
Figure 355A 1-1/2 in. CPVC NPT x Socket Weld True Union Ball Check Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 12Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
FNW®
Figure 355A
1-1/2 in. CPVC NPT x Socket Weld True Union Ball Check Valve
FNW355AEJ
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- 1-1/2 in. cpvc ball check valve
- End Connections: Threaded x Socket Weld
- Valve Length: 6.937 in.
- Maximum Temperature: 194 degrees (F)
- Valve Pressure Class: 150#
- Recommended Application: Water
- ANSI B1.20.1
- 5 PSI minimum shutoff
- For vertical and horizontal installation
- With flow direction arrow
Dimensions & Measurements
End Connection 1
NPT
End Connection 2
Socket Weld
End Connections
NPT x Socket Weld
Length
6-3/5 in
Pressure Class
150#
Pressure - Maximum
150 psi
Valve Size
1-1/2 in
Weight
2.11 lb
Characteristics & Features
Collection
Figure 355A
Material
Plastic
Material Type
CPVC
Valve Body Material
CPVC
Valve Body Style
Ball
Valve Seat Material
EPDM
Valve Type
Check Valve
Electrical & Operational Information
Maximum Temperature
194
Warranty & Product Information
ANSI
ANSI B1.20.1, ANSI 14-2016
ASTM
ASTM D-1784, ASTM D-2464, ASTM D-2467
FM Approved
No
IAPMO Listed
Yes
NSF
NSF 14-2016
NSF Certified
Yes
Recommended Valve Application
Gas
UL Listed
No
UPC
781889370667
