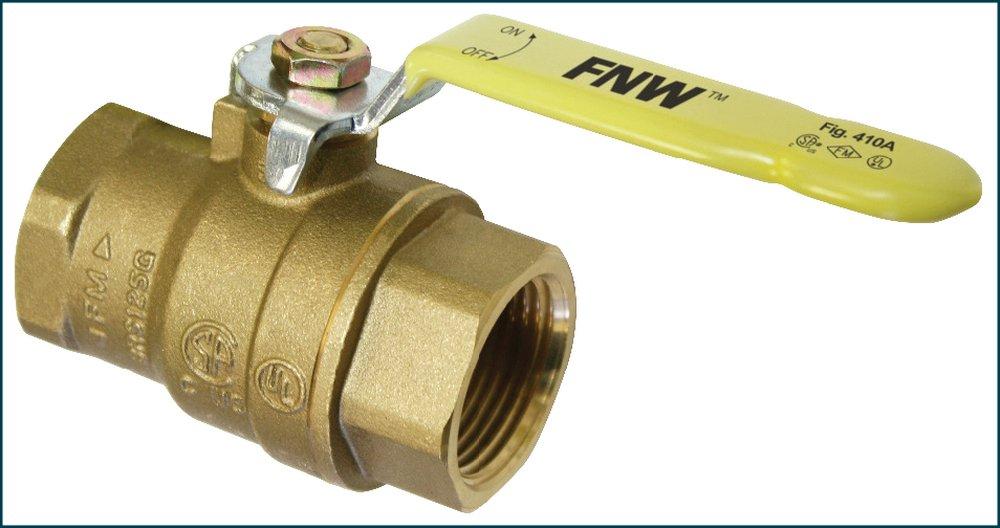

1/2 in. Brass Full Port FPT 600# Oval Handle Ball Valve
FNW®
Figure 410A 1/2 in. Brass Full Port FPT 600# Oval Handle Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 12 Case: 120 Pallet: 3840
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
FNW®
Figure 410A
1/2 in. Brass Full Port FPT 600# Oval Handle Ball Valve
FNW410AOHD
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- 1/2 in. brass ball valve
- End Connections: Threaded
- Valve Length: 2.13 in.
- Valve Pressure Class: 600#
- Recommended Application: Gas
- NSF 61
- ANSI Z21.15, ANSI-842, ANSI-125
- PTFE seats
- Meets MSS SP-110 Standards
- FM and CSA approved
Specifications
- ANSI:
- ANSI Z21.15, ANSI-842, ANSI-125, ANSI Z1157-2014e1
- ASME:
- ASME B16.44, ASME B16.33
- ASTM:
- ASTM B-124, ASTM B-584
- CSA Certified:
- CSA Class 3371-08, CSA Class 3371-10, CSA Class 3371-12, CSA Class 3371-88, CSA Class 3371-92, CSA Class 3371-94
- Clean Bagged:
- No
- Collection:
- Figure 410A
- End Connection 1:
- FPT
- End Connection 2:
- FPT
- End Connections:
- FPT
- FM Approved:
- Yes
- Handle Material:
- Steel
- Handle Type:
- Oval
- IAPMO Listed:
- Yes
- MA Approved:
- Yes
- MSS:
- MSS SP-110
- Material:
- Brass
- NSF Certified:
- No
- Pressure - High:
- 600
- Pressure - Maximum:
- 600 psi
- Pressure Class:
- 600#
- Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Recommended Valve Application:
- Gas, Oil, Steam
- UL Listed:
- Yes
- UPC:
- 781889227602
- Valve Body Material:
- Brass
- Valve Body Style:
- 2 piece
- Valve Operator:
- Oval Handle
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- PTFE
- Valve Size:
- 1/2 in
- Valve Stem:
- Blowout-proof
- Valve Type:
- Ball Valve
