1-1/4 in. Brass Full Port FPT 600# Locking Lever Ball Valve

FNW®

Figure 415 1-1/4 in. Brass Full Port FPT 600# Locking Lever Ball Valve

  • Fast #
  • Part #FNW415LLH
  • Item #4783527
  • Manufacturer Part #FNW415LLH
3.3 out of 5 Customer Rating
Brand image

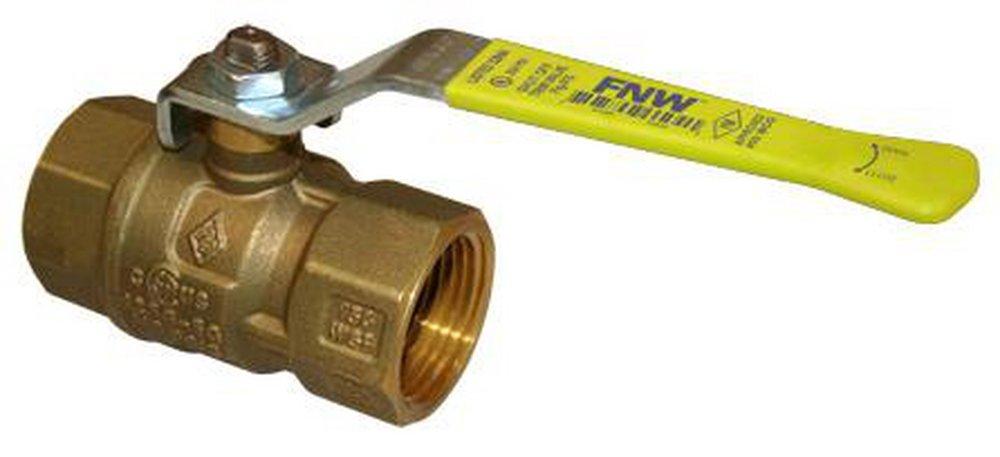

FNW® Brass Full Port NPT 600# Ball Valve
FNW® Brass Full Port NPT 600# Ball Valve
FNW®

Figure 415 1-1/4 in. Brass Full Port FPT 600# Locking Lever Ball Valve

  • Fast #
  • Part #FNW415LLH
  • Item #4783527
  • Manufacturer Part #FNW415LLH
3.3 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 10 Case: 20 Pallet: 350
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Available Nearby
    0  in  Hilliard, OH
    Available in 1 store nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Details

  • 1-1/4 in. brass ball valve
  • End Connections: Threaded
  • Valve Length: 3.37 in.
  • Maximum Temperature: 149 degrees (F)
  • Valve Pressure Class: 600#
  • Recommended Application: Water, oil, gas
  • ANSI Z21.15
  • Saturated steam 150 psi
  • 100% electronically tested in open and closed position at 80 psi
  • 400 PSI maximum for FM approved applications
  • Requires Certification

  • Not Compliant, Approved for Non-Potable Water Applications

Specifications

ANSI:
ANSI Z21.15
ASME:
ASME B16.33, ASME B16.38, ASME B16.44
CSA Certified:
CSA 9.1
Clean Bagged:
No
Collection:
Figure 415
End Connection 1:
FPT
End Connection 2:
FPT
End Connections:
FPT
FM Approved:
Yes
Handle Material:
Steel
IAPMO Listed:
No
Lead Law Compliance Level:
Not Compliant, Approved for Non-Potable Water Applications
Length:
3-10/27 in
MA Approved:
Yes
MSS:
MSS SP-110
Material:
Brass
Maximum Temperature:
149
Minimum Temperature:
-40
NSF Certified:
No
Pressure - High:
600
Pressure - Maximum:
600 psi
Pressure Class:
600#
Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application:
Gas, Oil, Steam
UL Listed:
No
UPC:
781889258484
Valve Body Material:
Forged Brass
Valve Body Style:
2 piece
Valve Operator:
Locking Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
PTFE
Valve Size:
1-1/4 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
