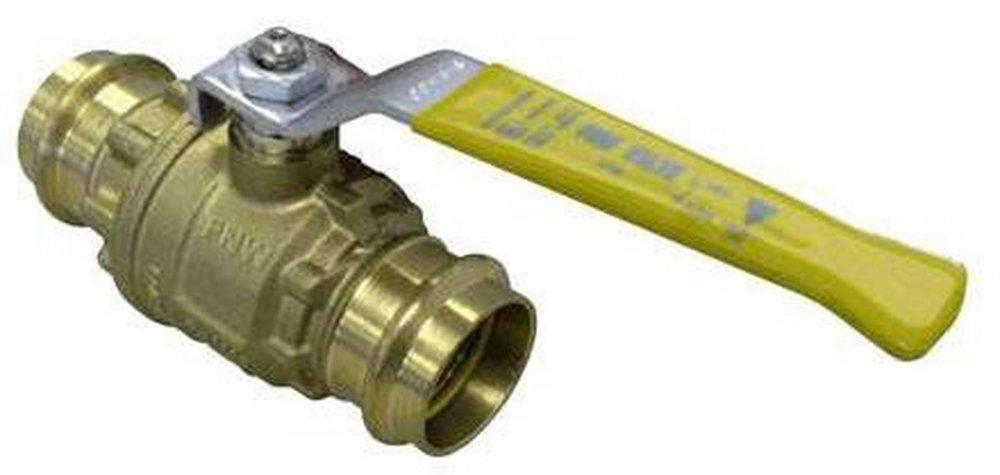

1 in. Brass Full Port Press Ball Valve
FNW®
Figure 430 1 in. Brass Full Port Press Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 20 Case: 40 Pallet: 1400Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
FNW®
Figure 430
1 in. Brass Full Port Press Ball Valve
430G
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- 1 in. brass ball valve
- End Connections: PXP
- Valve Length: 4.13 in.
- Maximum Temperature: 250 degrees (F)
- Valve Pressure Class: 200#
- Recommended Application: Water
- NSF 61
- No soldered-in end pieces
- Adjustable packing
- Secondary O-ring stem seal
Product Information
-
Not Compliant, Approved for Non-Potable Water Applications
Dimensions & Measurements
End Connection 1
Press
End Connection 2
Press
End Connections
Press
Length
4-10/77 in
Pressure Class
200#
Pressure - Maximum
200 psi
Valve Size
1 in
Characteristics & Features
Clean Bagged
No
Collection
Figure 430
Handle Material
Steel
Material
Brass
Material Type
DZR
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Valve Body Style
2 piece
Valve Operator
Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
PTFE
Valve Stem
Blowout-Proof
Valve Type
Ball Valve
Electrical & Operational Information
Maximum Temperature
250
Warranty & Product Information
ANSI
ANSI 61
ASTM
ASTM B-88
FM Approved
Yes
IAPMO Listed
No
Lead Law Compliance Level
Not Compliant, Approved for Non-Potable Water Applications
MA Approved
Yes
MSS
MSS SP-110
NSF Certified
No
UL Listed
Yes
UPC
781889107300
