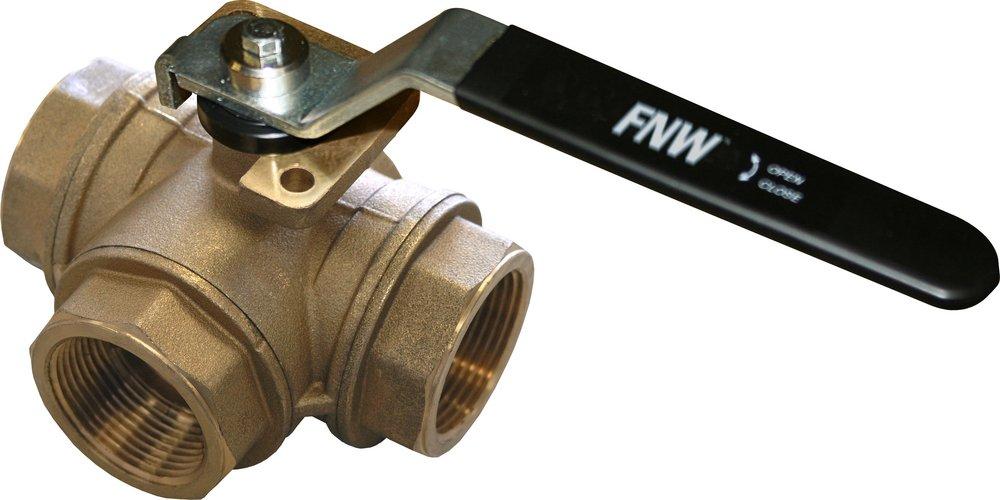

1/4 in. Brass L-Port FPT 400# Ball Valve
FNW®
Figure 465 1/4 in. Brass L-Port FPT 400# Ball Valve
Purchase history
FNW®
Figure 465
1/4 in. Brass L-Port FPT 400# Ball Valve
465
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- 1/4 in. brass ball valve
- End Connections: Threaded
- Valve Length: 2.64 in.
- Valve Pressure Class: 400#
- Recommended Application: Water, oil, gas
- ANSI B1.20.1
- L-port 90 degree flow path
- Mounting pad for direct mount actuation
- O-ring backed seats for reduced operating torque
- Four seat design
Product Information
-
Not Compliant, Approved for Non-Potable Water Applications
Dimensions & Measurements
End Connection 1
FPT
End Connection 2
FPT
End Connection 3
FPT
End Connections
FPT
Length
2-16/25 in
Pressure Class
400#
Pressure - Maximum
400 psi
Valve Size
1/4 in
Characteristics & Features
Clean Bagged
No
Collection
Figure 465
Handle Material
Steel
Material
Brass
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Valve Body Material
Forged Brass
Valve Body Style
3-way
Valve Operator
Lever Handle
Valve Port Opening
L-Port
Valve Seat Material
PTFE
Valve Stem
Blowout-Proof
Valve Type
Ball Valve
Electrical & Operational Information
Pressure - High
400
Warranty & Product Information
ANSI
ANSI B1.20.1, ANSI Z1157-2014e1
ASME
ASME B1.20.1
FM Approved
No
IAPMO Listed
Yes
ISO
ISO 5211
Lead Law Compliance Level
Not Compliant, Approved for Non-Potable Water Applications
NSF Certified
No
Recommended Valve Application
Gas, Oil, Steam
UL Listed
No
UPC
781889131336
