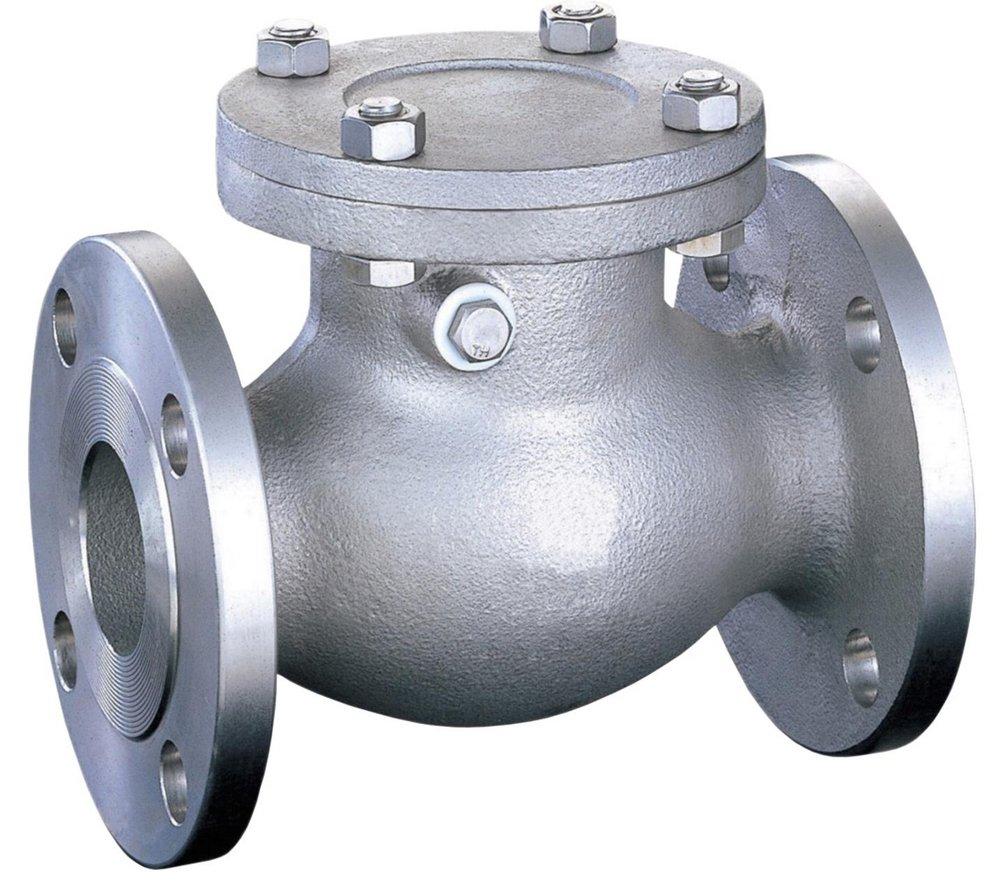

2-1/2 in. Stainless Steel Flanged Swing Check Valve
This product has been replaced by
FNW® 2-1/2 in. 150# Stainless Steel Flanged Swing Check Valve
Manufacturer Part #FNW4715L
Manufacturer Part #FNW4715L
FNW®
Figure 471A 2-1/2 in. Stainless Steel Flanged Swing Check Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Pallet: 48
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
FNW®
Figure 471A
2-1/2 in. Stainless Steel Flanged Swing Check Valve
FNW471AL
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Design per API 603
- Pressure tested per API 598
- 150#
Specifications
- ANSI:
- ANSI B16.10, ANSI B16.34, ANSI B16.5, ANSI 14-2016
- API:
- API 603
- ASTM:
- ASTM A-351
- Collection:
- Figure 471A
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- IAPMO Listed:
- Yes
- Installation Type:
- Horizontal Mount, Vertical Mount
- Length:
- 8-1/2 in
- Material:
- Stainless Steel
- Maximum Temperature:
- 1000
- Minimum Temperature:
- -20
- NSF:
- NSF 14-2016
- NSF Certified:
- Yes
- Pressure - Maximum:
- 275 psi
- Pressure Class:
- 150#
- UL Listed:
- No
- UPC:
- 781889243817
- Valve Body Material:
- Stainless Steel
- Valve Body Style:
- Swing
- Valve Disc Material:
- Stainless Steel
- Valve Seat Material:
- CF8M
- Valve Size:
- 2-1/2 in
- Valve Type:
- Check Valve
