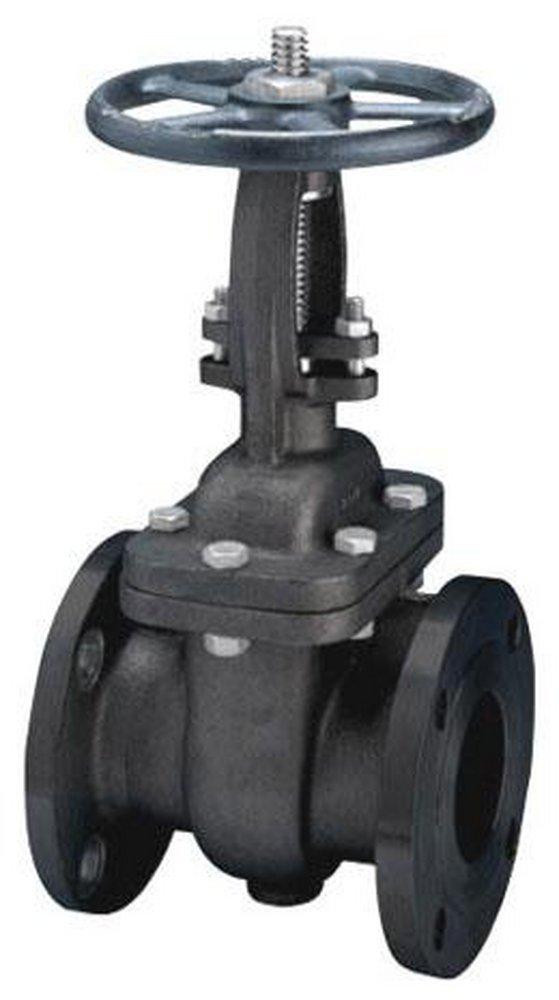

24 in. 150# Flanged Carbon Steel Gate Valve with Handwheel
FNW®
Figure 551 24 in. 150# Flanged Carbon Steel Gate Valve with Handwheel
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
Pick Up Not AvailableNot available in FL
-
Shipping Not AvailableNot available at this timeShipping Not AvailableNot available in FL
Purchase history
FNW®
Figure 551
24 in. 150# Flanged Carbon Steel Gate Valve with Handwheel
551
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- 14" and larger valves have 2 piece yoke and bonnet
- 14" and larger valves includes a gear operator
- Design per API 600
- Pressure/Temperature rating per ANSI B16.34
- Flange Dimensions are ANSI B16.5
- Face to Face Dimensions per ANSI B16.10
- Pressure Tested per API 598
Specifications
- ANSI:
- ANSI B16.10, ANSI B16.34, ANSI B16.5, ANSI 14-2016
- API:
- API 598, API 600
- ASTM:
- ASTM A-216, ASTM A-276-316, ASTM A194-8, ASTM A-193-B8
- Collection:
- Figure 551
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- FM Approved:
- No
- Handle Material:
- Ductile Iron
- Height:
- 97-16/25
- Length:
- 20
- Material:
- Carbon Steel
- Maximum Temperature:
- 1000
- NSF Certified:
- No
- Pressure - Maximum:
- 285 psi
- Pressure Class:
- 150#
- UL Listed:
- No
- UPC:
- 781889080702
- Valve Body Material:
- Carbon Steel
- Valve Body Style:
- 2 piece
- Valve Disc Material:
- Carbon Steel
- Valve Operator:
- Handwheel
- Valve Seat Material:
- Stellite
- Valve Size:
- 24 in
- Valve Stem:
- Rising
- Valve Type:
- Gate Valve
- Weight:
- 2756
- Width:
- 28-7/20
