3 in. Carbon Steel Full Port Flanged Ball Valve
FNW®

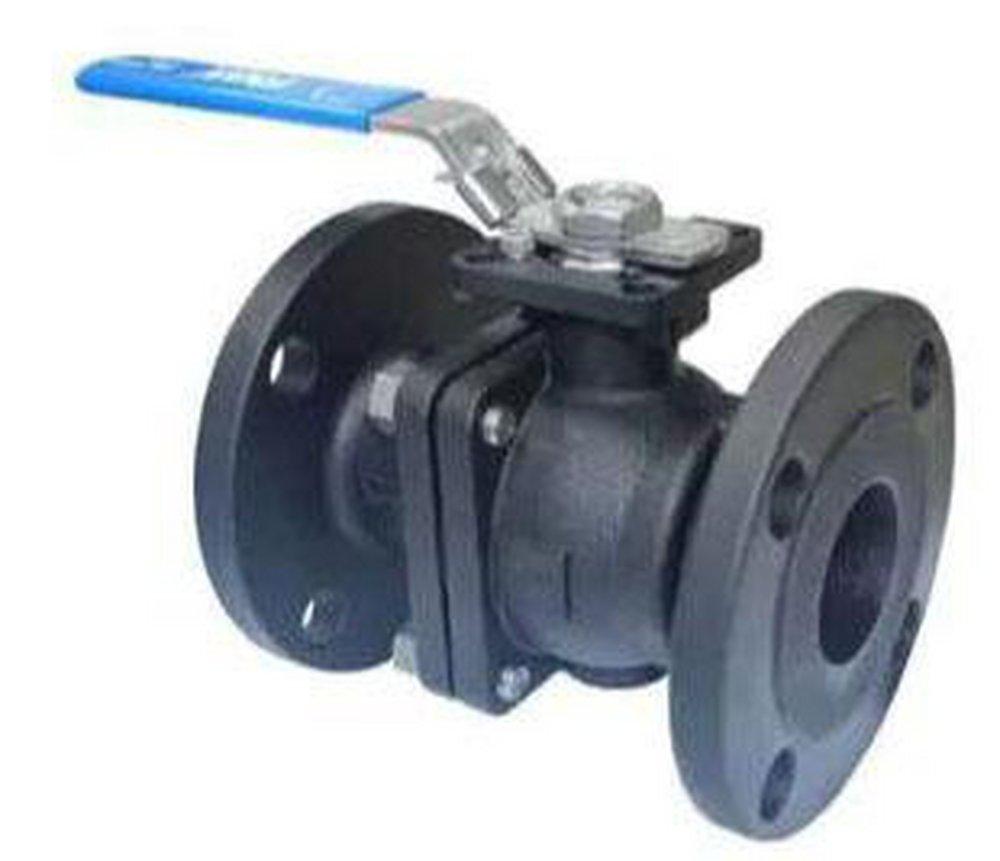

Figure 601B 3 in. Carbon Steel Full Port Flanged Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 2 Pallet: 48Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
FNW®
Figure 601B
3 in. Carbon Steel Full Port Flanged Ball Valve
FNW601BM
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- 3 in. carbon steel ball valve
- End Connections: Flanged
- Valve Length: 8 in.
- Valve Pressure Class: 150#
- ANSI B16.5
- Actuator mounting pad
- Adjustable packing
- Anti-static design
- Blowoutproof stem design
- Investment cast body
Dimensions & Measurements
End Connection 1
Flanged
End Connection 2
Flanged
End Connections
Flanged
Length
8 in
Pressure Class
150#
Pressure - Maximum
150 psi
Valve Size
3 in
Weight
38.61 lb
Characteristics & Features
Clean Bagged
No
Collection
Figure 601B
Handle Material
Stainless Steel
Material
Carbon Steel
Proposition 65
WARNING: Cancer and Reproductive Harm WWW.p65warnings.ca.gov
Valve Body Material
Carbon Steel
Valve Body Style
2 piece
Valve Operator
Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
PTFE
Valve Stem
Blowout-Proof
Valve Type
Ball Valve
Electrical & Operational Information
Pressure - High
150
Warranty & Product Information
ANSI
ANSI B16.5, ANSI Z1157-2014e1
API
API 598
ASME
ASME B16.34, ASME B16.5
FM Approved
No
IAPMO Listed
Yes
ISO
ISO 5211
NSF Certified
No
Recommended Valve Application
Steam
UL Listed
No
UPC
781889315941
