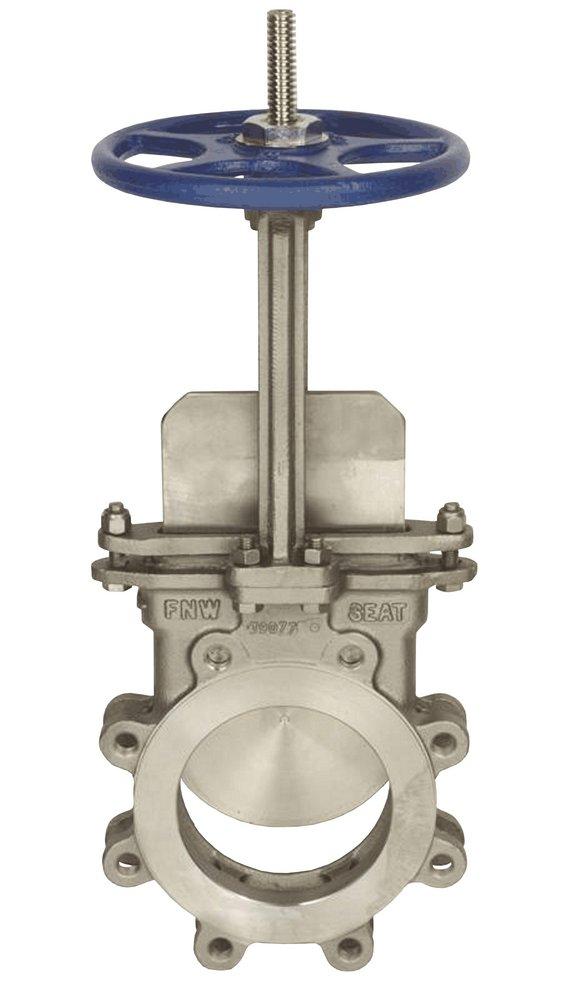

30 in. 316L Stainless Steel Flanged Knife Gate Valve
This product has been replaced by

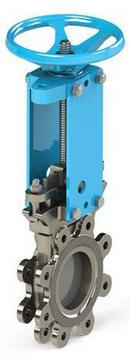

FNW® 30 in. Stainless Steel Lined Metal Seated Unidirectional Lug Knife Gate Valve
Manufacturer Part #6701S30
Manufacturer Part #6701S30
FNW®
Figure 67B 30 in. 316L Stainless Steel Flanged Knife Gate Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
FNW®
Figure 67B
30 in. 316L Stainless Steel Flanged Knife Gate Valve
67BM
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Unidirectional shutoff
- Cast stainless steel body, yoke and packing gland
- Ductile iron hand wheel
- Bonnetless, outside screw and yoke
- Smooth flow, non-clogging step seat design
- Application stock, slurries
Specifications
- ANSI:
- ANSI B16.5
- ASME:
- ASME B16.34
- ASTM:
- ASTM A-240, ASTM A-351
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- Length:
- 4-3/4 in
- MSS:
- MSS SP-81
- Material:
- Stainless Steel
- Material Type:
- 316L
- Maximum Temperature:
- 425
- TIS:
- TIS 405-8
- UPC:
- 781889100349
- Valve Body Material:
- Stainless Steel
- Valve Body Style:
- Lug
- Valve Disc Material:
- Stainless Steel
- Valve Operator:
- Wheel Handle
- Valve Port Opening:
- Standard Port
- Valve Seat Material:
- Metal
- Valve Size:
- 30 in
- Valve Stem:
- Outside
- Valve Type:
- Knife Gate Valve
