6 in. Cast Iron Wafer Style Check Valve

FNW®

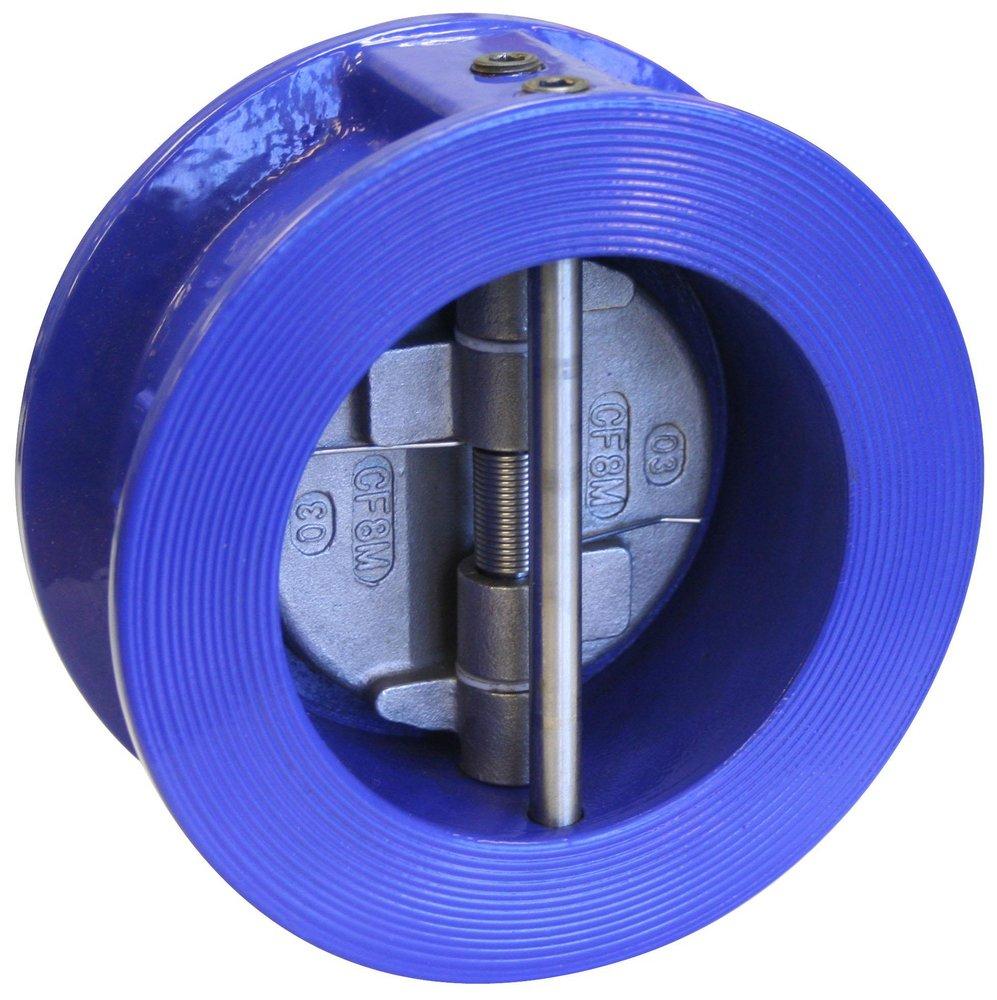

Figure 682 6 in. Cast Iron Wafer Style Check Valve

  • Fast #
  • Part #FNW682U
  • Item #3642190
  • Manufacturer Part #FNW682U
4.2 out of 5 Customer Rating
Brand image
FNW® 125# Cast Iron Wafer Style Check Valve
FNW® 125# Cast Iron Wafer Style Check Valve
FNW®

Figure 682 6 in. Cast Iron Wafer Style Check Valve

  • Fast #
  • Part #FNW682U
  • Item #3642190
  • Manufacturer Part #FNW682U
4.2 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 1 Pallet: 50
Quantity:
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Not Available
    0  in  Leesburg, VA
    0 nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Description
  • Non-slam (spring actuated) check for water or clean fluids
  • Drop tight resilient seat
  • Requires Certification
Dimensions & Measurements
Length
3 in
Pressure Class
125#
Pressure - Maximum
200 psi
Valve Size
6 in
Width
7-19/25 in
Characteristics & Features
Coating
Epoxy
Collection
Figure 682
Installation Type
Horizontal Mount, Vertical Mount
Material
Cast Iron, Stainless Steel
Material Type
316 SS
Valve Body Material
Cast Iron
Valve Body Style
Wafer
Valve Disc Material
Stainless Steel
Valve Seat Material
NBR
Valve Type
Double Check Valve
Electrical & Operational Information
Maximum Temperature
176
Minimum Temperature
-4
Warranty & Product Information
ANSI
ANSI B16.1
API
API 598
ASTM
ASTM A-126 Class B
MSS
MSS SP-125
NSF Certified
No
Recommended Valve Application
Water
UL Listed
No
UPC
781889172476
