24 in. Butterfly Valve Cast Iron Gear Operator with Hand Wheel
FNW®

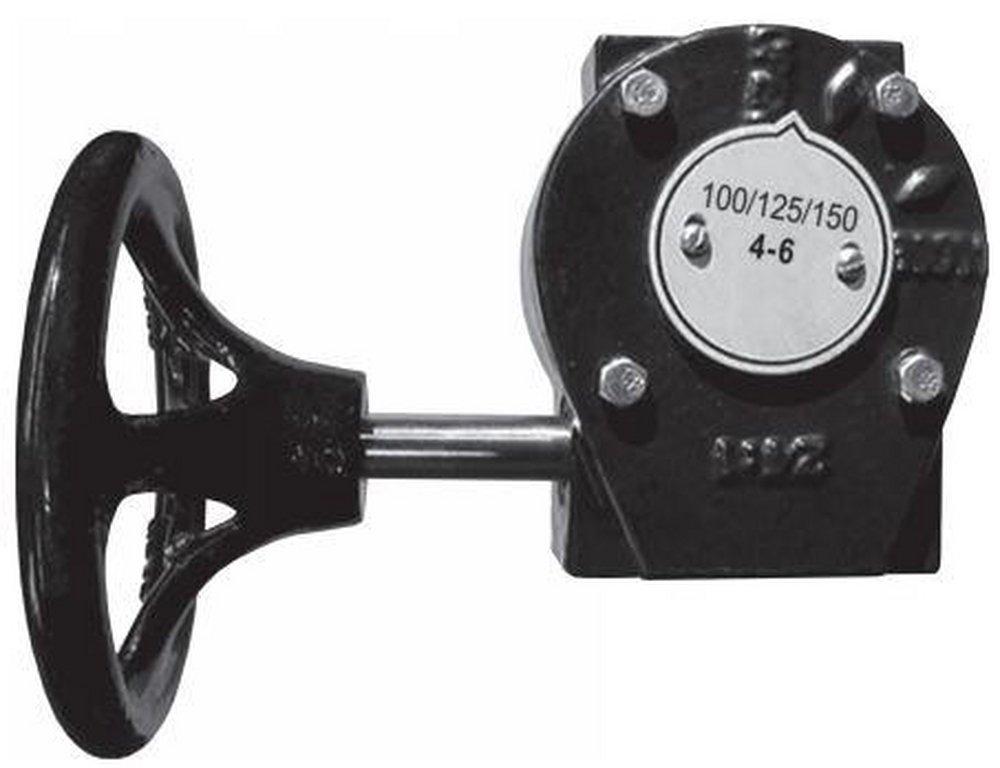

Figure G731 24 in. Butterfly Valve Cast Iron Gear Operator with Hand Wheel
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 24
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
FNW®
Figure G731
24 in. Butterfly Valve Cast Iron Gear Operator with Hand Wheel
G731
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- ISO 5211 Mounting Pad Configuration
- Adjustable open and close stops
- Ductile Iron Gear
- Cast Iron Case
- Nickel Plated Shaft
- The G731 worm gear operator is designed for use on FNW series 71X and 73X butterfly valves
- The ISO pads match the FNW valves per size for direct mounting
- The ISO standard configuration also allows mounting the G731 to valves of other manufacturers
Specifications
- ASTM:
- ASTM A-126, ASTM A-536
- Brand Model Compatibility:
- Figure G731
- Collection:
- Figure G731
- Color Finish Name:
- Black
- FM Approved:
- No
- Handle Material:
- Cast Iron
- Handle Type:
- Hand Wheel
- ISO:
- ISO 5211
- Number of Handles:
- Single Handle
- UL Listed:
- No
- UPC:
- 781889313084
- Valve Size:
- 24 in
