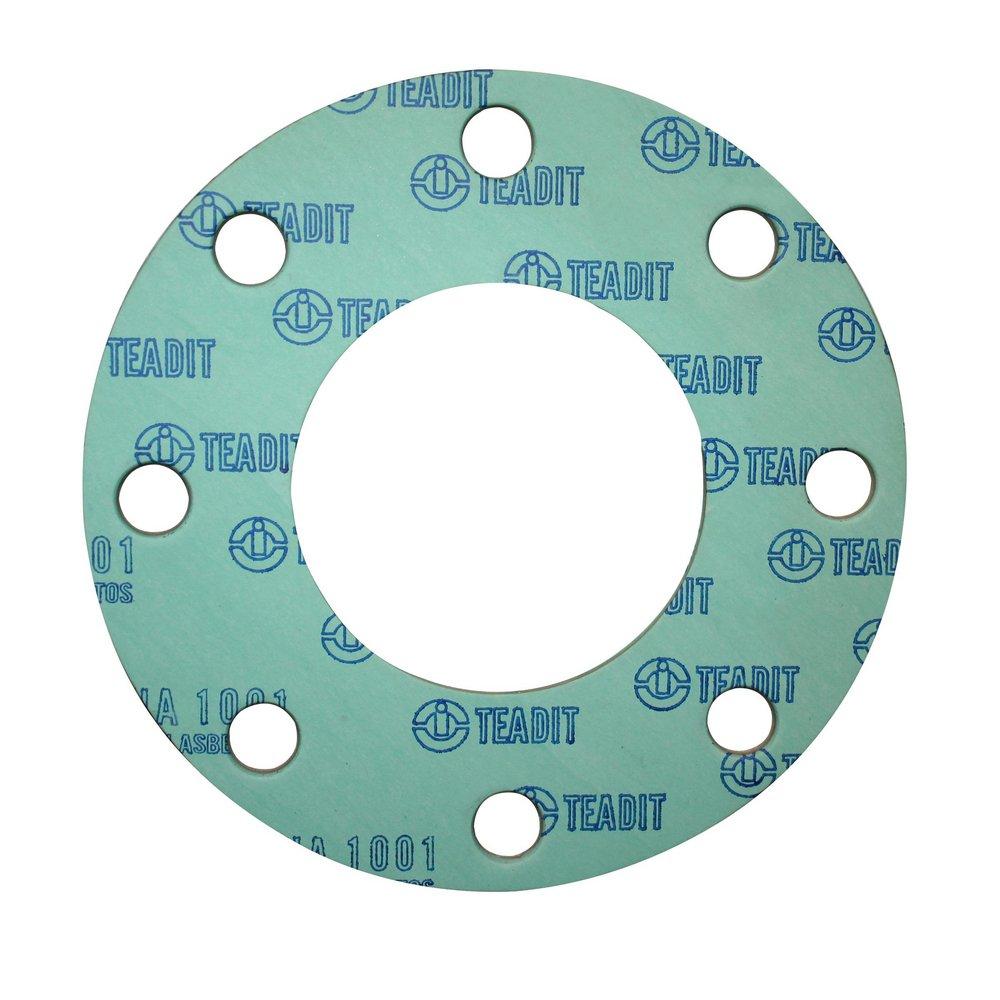

3 in. 150# Non-Asbestos 1/8 in. Full Face Gasket
FNW®
Figure NA 3 in. 150# Non-Asbestos 1/8 in. Full Face Gasket
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 5 Pallet: 7500Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
FNW®
Figure NA
3 in. 150# Non-Asbestos 1/8 in. Full Face Gasket
701247
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Manufactured from compressed non-asbestos sheet gasket material
- Material is aramid and other synthetic fibers bonded with nitrile rubber (NBR)
- Manufactured through the hot calendar process under rigorous quality control standards that are registered under ISO-9001 certification
- Color finish green
- Pressure class 150
Product Information
-
Lead Law Compliant, Not Certified
Dimensions & Measurements
Diameter - Inside 1
3 in
Pressure - Maximum
1595 psi
Thickness
0.125 in
Characteristics & Features
Collection
Figure NA
Color Finish Category
Greens
Color Finish Name
Green
Fitting Type
Gasket
Flange Type
Full Face
Material
Compressed Non-Asbestos
Electrical & Operational Information
Maximum Temperature
750
Warranty & Product Information
Application
Residential
ASME
ASME B16.5
ASTM
ASTM F-104
Lead Law Compliance Level
Compliant Not Certified
UPC
543744603040
