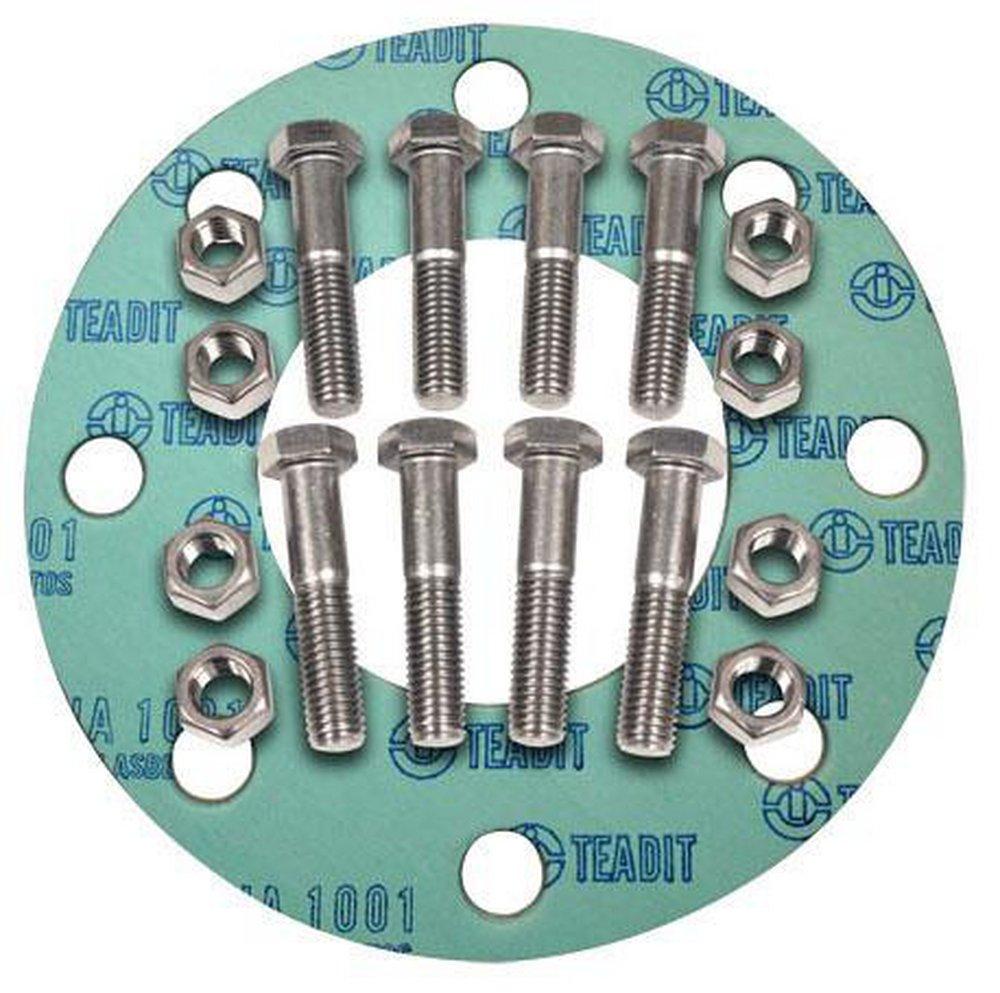

12 in. 150# Non-Asbestos 1/16 in. Nut, Bolt & Full Face Gasket Kit
FNW®
Figure NBG-NA-Z 12 in. 150# Non-Asbestos 1/16 in. Nut, Bolt & Full Face Gasket Kit
Package Quantity Info:
Each: 1Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
All Sizes
Purchase history
FNW®
Figure NBG-NA-Z
12 in. 150# Non-Asbestos 1/16 in. Nut, Bolt & Full Face Gasket Kit
148813
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- 150# full-face neoprene gasket with bolts and nuts
- Cap screws conform to ANSI/ASME B18.2.1 and ANSI/ASME B1.1
- Nuts conform to ANSI/ASME 18.2.2 and ANSI/ASME B1.1
- Stainless steel nuts and bolts conform to ASTM F593 for grades 304 and 316
- Full Face & Ring Style
- 1/16 in. & 1/8 in. Thickness
- Lengths for Joining Two Flanges*
- Non-Asbestos Gasket (Aramid & Other Synthetic Fibers Bonded with Nitrile Rubber)
- Carbon Steel Hardware
- Hardware Finish: Zinc Plated ; Sizes: 1/2 in. to 14 in.
Product Information
-
Lead Law Compliant, Not Certified
Dimensions & Measurements
Fits Pipe Size
12 in
Pressure Class
150#
Pressure - Maximum
1595 psi
Thickness
0.0625 in
Characteristics & Features
Coating
Zinc Plated
Collection
Figure NBG-NA-Z
Color Finish Category
Greens
Color Finish Name
Green
Fitting Type
Flange Accessory Pack
Flange Type
Full Face
Material
Non-Asbestos, Carbon Steel
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Electrical & Operational Information
Maximum Temperature
750
Warranty & Product Information
Application
Commercial
ASME
ASME B16.5, ASME B16.21, ASME B18.2.1 Class 2A, ASME B18.2.2 Class 2B
ASTM
ASTM A-563, ASTM F-104, ASTM A-307A Grade A
Lead Law Compliance Level
Compliant Not Certified
UPC
781889254158
