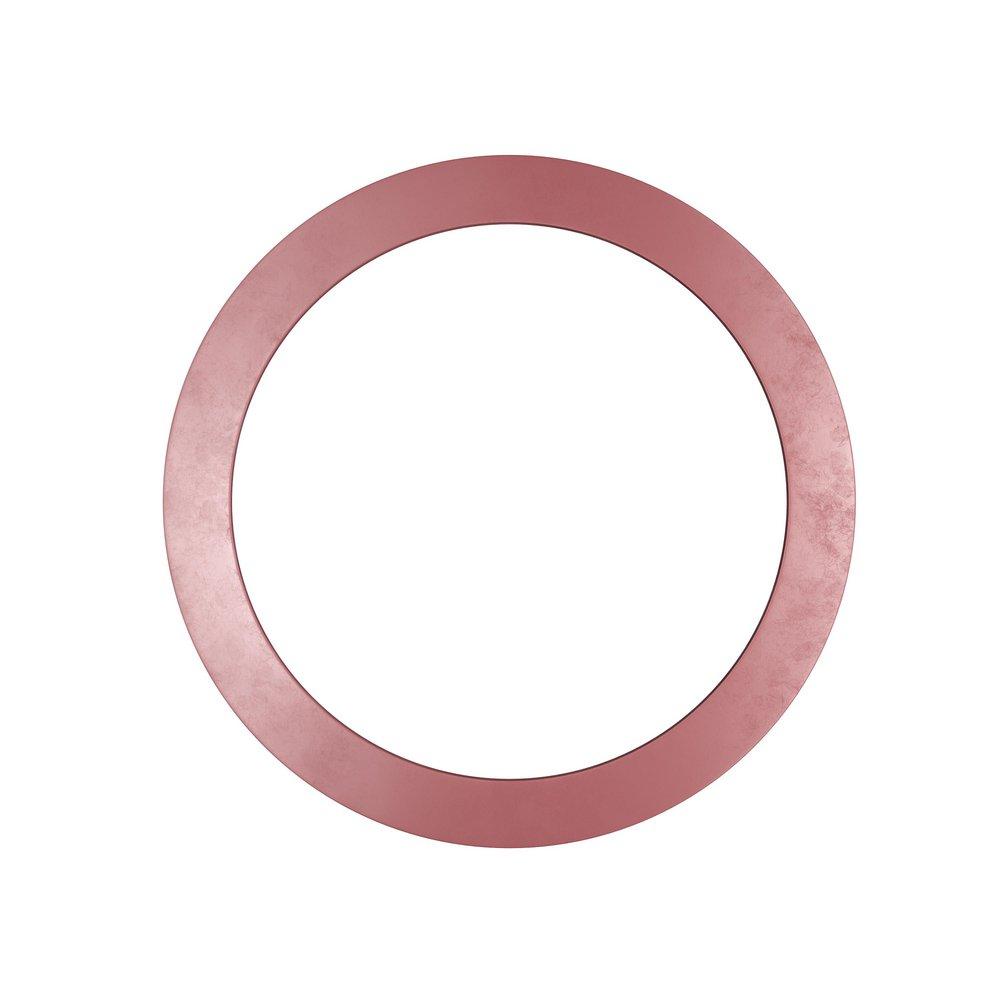

1-1/2 in. 150# Red Rubber 1/16 in. Ring Gasket
FNW®
Figure R 1-1/2 in. 150# Red Rubber 1/16 in. Ring Gasket
Package Quantity Info:
Each: 1 Inner Pack: 5 Case: 5 Pallet: 117575Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
FNW®
Figure R
1-1/2 in. 150# Red Rubber 1/16 in. Ring Gasket
700824
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Red rubber gaskets are manufactured from styrene-butadiene (SBR)
- This synthetic material was developed as an alternative to natural rubbers
- The red rubber gaskets are recommended for service in cold and hot water, air, and some weak acids
- It offers little resistance to ozone and to the majority of hydrocarbons
- Color red
- Finish smooth
- Pressure class 150
Dimensions & Measurements
Diameter - Inside 1
1-1/2 in
Pressure - Maximum
200 psig
Thickness
0.0625 in
Characteristics & Features
Collection
Figure R
Color Finish Category
Reds
Color Finish Name
Red
Fitting Type
Gasket
Flange Type
Ring Type Joint
Material
Rubber
Material Type
Styrene Butadiene
Electrical & Operational Information
Maximum Temperature
170
Minimum Temperature
-20
Temperature Range
-20 to 170 Deg F
Warranty & Product Information
ASME
ASME B16.21, ASME B16.5
IAPMO Listed
No
UPC
054374136674
