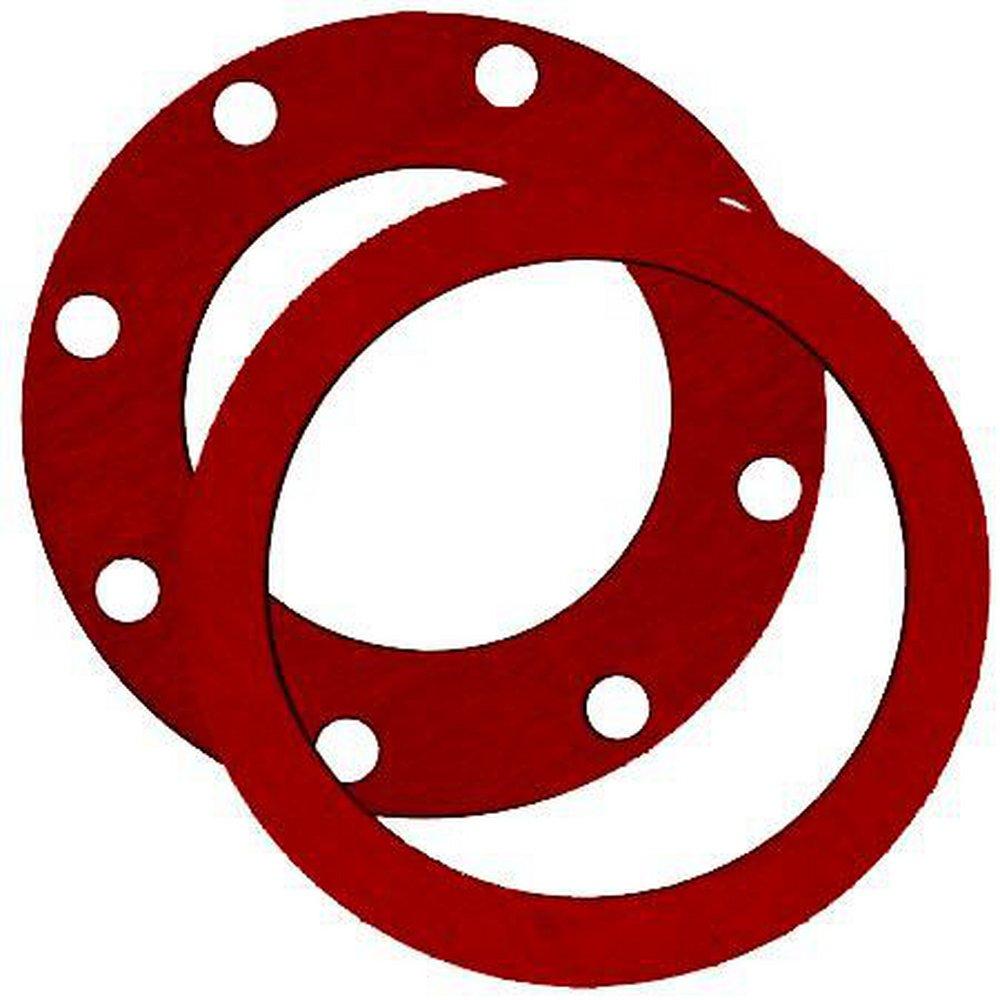

18 in. 300# Red Rubber 1/16 in. Full Face Gasket
FNW®
Figure R 18 in. 300# Red Rubber 1/16 in. Full Face Gasket
Package Quantity Info:
Each: 1 Inner Pack: 5 Case: 5Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
FNW®
Figure R
18 in. 300# Red Rubber 1/16 in. Full Face Gasket
FNWR3FFG11618
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Red rubber gaskets are manufactured from styrene-butadiene (SBR)
- This synthetic material was developed as an alternative to natural rubbers
- The red rubber gaskets are recommended for service in cold and hot water, air, and some weak acids
- It offers little resistance to ozone and to the majority of hydrocarbons
- Color red
- Finish smooth
- Pressure class 300
Dimensions & Measurements
Diameter - Inside 1
18 in
Pressure Class
300#
Pressure - Maximum
200 psig
Thickness
0.0625 in
Characteristics & Features
Collection
Figure R
Color Finish Category
Reds
Color Finish Name
Red
Fitting Type
Gasket
Material
Rubber
Material Type
Styrene Butadiene
Electrical & Operational Information
Maximum Temperature
170
Minimum Temperature
-20
Warranty & Product Information
ASME
ASME B16.5
ASTM
ASTM F-36, ASTM F-37, ASTM F-38, ASTM F-104, ASTM F-146, ASTM F-495, ASTM IRM 903
FM Approved
No
IAPMO Listed
No
NSF Certified
No
UL Listed
No
UPC
781889247884
